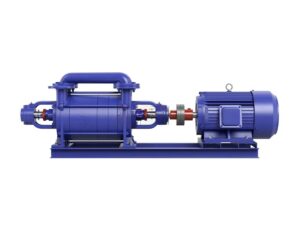

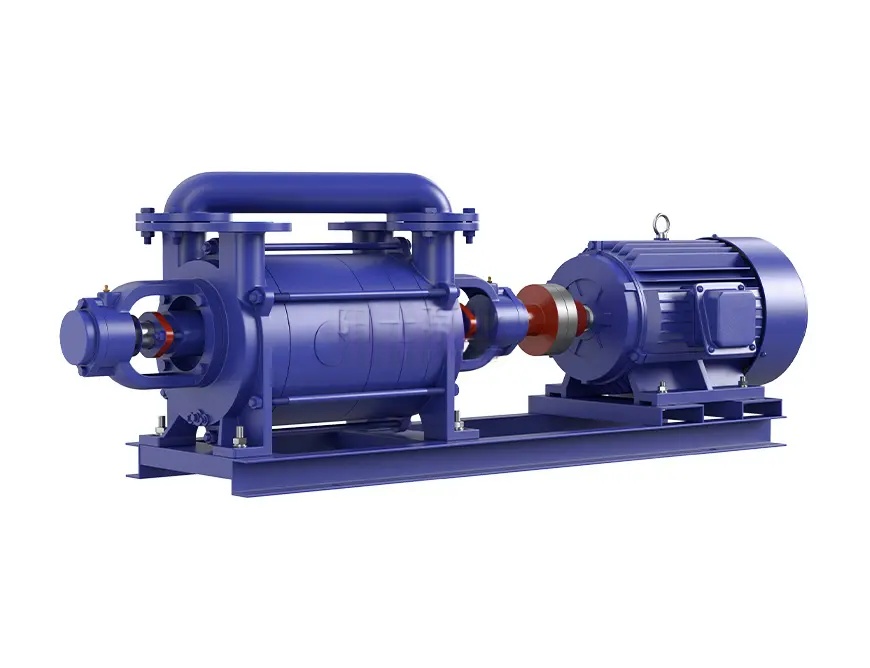

2SK type water ring vacuum pump

Characterized by high vacuum degree and high pumping speed in high vacuum areas

Product Introduction

• The 2SK series water ring vacuum pump and the 2SK-P1 series two-stage water ring vacuum pump atmospheric jet pump unit are used to extract air and other non corrosive, insoluble, and solid particle free gases to achieve higher vacuum in closed containers.

Advantage

• It has the characteristics of high vacuum degree, high pumping speed in high vacuum zone, compact structure, reliable operation, and easy maintenance.
• Widely applicable, it can extract various gases containing water vapor, flammable, explosive, small amounts of dust, and small amounts of liquid.
• Mainly using water as the working medium, with low maintenance costs.
• Can work in harsh environments.

scope of application

• The 2SK series is suitable for working conditions where the suction pressure is below -0.08MPa.
• The 2SK-P1 series is suitable for working conditions where the suction pressure is below -0.096MPa. When equipped with an atmospheric pump, the ultimate vacuum degree can reach -750mmHg. The working vacuum range is -0.03-0.08MPa.
• Widely used in vacuum evaporation, vacuum concentration, vacuum rehydration, vacuum impregnation, vacuum drying, and vacuum smelting in the fields of food, weaving chemicals, pharmaceuticals, metallurgy, and electronics.

performance parameter

Main Technical Parameters of 2SK Series:

Main technical parameters table of 2SK-P1 series atmospheric jet pump unit:

Note:

1. The performance indicators listed in the table refer to the performance indicators under the following specified conditions:

① The atmospheric pressure is 101325Pa (760mmHg)

② Inlet water temperature 15 ℃

③ Inhalation air temperature 20 ℃

④ Relative air temperature 70%

2. The water supply is the value at a suction pressure of -0.05MPa (-400mmHg), and can be greater than this value at ultimate vacuum.
3. Performance tolerance ± 10%
4. When the suction pressure is -0.093MPa, the amount of air extracted is the amount of air extracted when using an electromagnetic valve to control the atmospheric pump.
