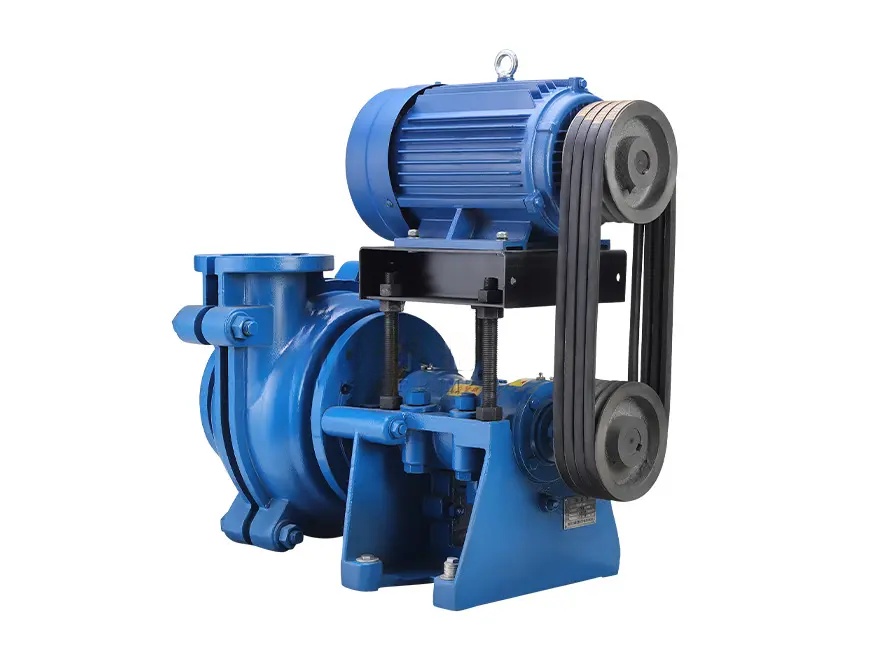

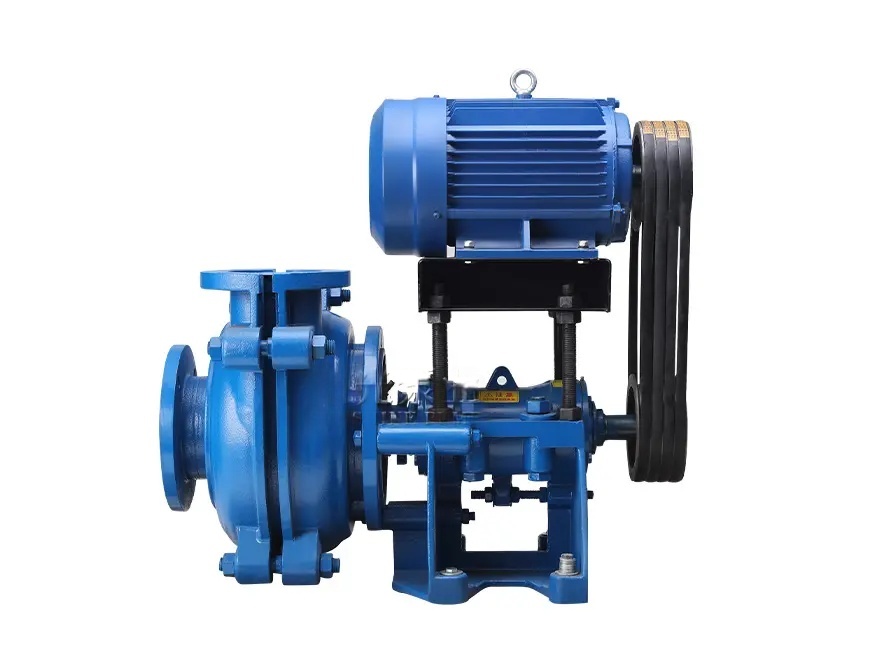

AH type slurry pump

Cantilever and horizontal centrifugal slurry pump

Product Introduction

  • AH type is a cantilever, horizontal centrifugal slurry pump, suitable for conveying strong abrasive and high concentration slurry in industrial sectors such as metallurgy, mining, coal, power, and building materials.
  • This type of pump can also be used in series in multiple stages.
  • The pump body of AH type pump has replaceable wear-resistant metal or rubber lining, and the impeller is made of wear-resistant metal or rubber material.
  • The shaft seal of AH type pump can use packing seal or centrifugal seal.
  • The outlet position of the pump can be changed to 45°intervals as needed, and rotated eight different angles for installation and use.



scope of application

  • Suitable for conveying strong abrasive and high concentration slurry in industrial sectors such as metallurgy, mining, coal, power, and building materials.



Selection Introduction

  • The flow rate range for high concentration, highly abrasive slurry is 40-80%
  • The flow rate range for medium concentration and strong abrasive slurry is 40-100%
  • The flow rate range for low concentration, highly abrasive slurry is 40-120%



performance parameter



No Model maximum
power		 Material
Sheath		 Impeller Flow Q Clear water performance
Lift		 Speed Maximum
efficiency		 npsh Impeller
Number
of blades		 impeller
diameter
Allow pairing (m3/h) (L/s) H m n (m) (mm)
(m) (r/min) (%)
1 11/2/1B-AH 15 M M 12.6~28.8 3.5~8 6~68 1200~3800 40
35		 2~4 5 152
2 RU RU 10.8~25.2 3~7 7~52 1400~3400 3
3 11/2/1C-HH 30 M M 16.2~34.2 4.5~9.5 25~92 1400~2200 20 2~5.5 5 330
4
5		 2/11/2_AH 15 M M 32.4~72 9~20 6~58 1200~3200 45 3.5~8
2.5~5		 5 184
RU RU 25.2~54 7~15 5.5~41 1000~2600 50 178
6 3/2C-AH 30 M M 39.6~86.4 11~24 12~64 1300~2700 55 4~6 5 214
7 RU RU 36~75.6 10~21 13~39 1300~2100 2~4 213
8 3/2D-HH 60 M M 68.4~ 136.8 19~38 25~87 850~1400 47 3~7.5 5 457
9 4/3C-AH 30 M M 86.4~198 24~55 9~52 1000~2200 71 4~6 5 245
10 4/3D-AH 60
11 4/3C-AH 30 800~1800 59 3~5 5 245
12 4/3D-AH 60 RU RU 79.2~180 22~50 5~34.5
13 4/3C-AH 30 M M 97.2~194.4 27~54 9~53 1000~2200 55 3 240
14 4/3D-AH 60
15 4/3E-HH 120 M M 126~252 35~70 12~97 600~1400 50 2~5 5 508
16 6/4D-AH 60 M M 162~360 45~100 12~56 800~1550 65 5~8 5 265
17 6/4E-AH 120
18 6/4D-AH 60 M M 180~396 50~110 7~61 600~1600 55 3~8 4 372
19 6/4E-AH 120 65 3~5 5 365
20 6/4D-AH 60
21 6/4E-AH 120 RU
M		 RU
M		 144~324
144~324		 40~90
40~90		 12~45 800~1350
800~1600		 55 4.5~9 2 371
22 6/4D-AH 60
23 6/4E-AH 120 10~52
24 6/4D-AH 60 2 371
25 6/4E-AH 120 M M 162~360 45~100 21~64 1000~1600 55
26 6/4D-AH 60 M M 126~288 35~80 10~55 800~1600 58 2~2.5 2 365
27 6/4E-AH 120 M M 126~288 35~80 10~55 800~1600 58 2~2.5 2 365
28 6/4S-HH 560 M M 324~720 90~200 30~118 600~1000 64 3~8 5 711
29
30		 6S-H
8/6E-AH		 560
120		 M
M		 M 468~1008 130~280 20~94 500~1000 65 4~12 5 711
31 8/6R-AH 300 M 360~828
324~720		 100~230
90~200		 10-61
7~49		 500~1140
400~1000		 72
65		 2~9 5 510
32 8/6E-AH 120
33 8/6R-AH 300 M M 5~10 5 510
34 8/6E-AH 120 M M 360~828 100~230 7~70 400~1140 70 3~6 8 536
35 8/6R-AH 300
36 8/6E-AH 120 RU RU 360~828 100~230 7~52 400~1000 70 2.5~6 4 536
37 8/6R-AH 300
38 8/6E-AH 120 M M 288~648 80~180 5~47
39 8/6R-AH 300 400~1100 60 3~6 2 510
40 8/6T-HH 1200 M M 576~1152 160~320 32~95 450~725 65 6~10 5 965
41 10/8E-M 120 M M 540~1228 150~340 15~61 600~1100 70 4.5~8 4 549
42 10/8R-M 300
43 10/8E-M 120 M M 504~1080 140~300
44 10/8R-M 300 18~66 700~1100 62 4.5~7.5 4 549
45 10/8E-M 120 M M 666~1440 158~400 14~60 600~1100 73 4~10 5 549
46 10/8R-M 300
47 10/8E-M 120 RU RU 540~1188 150~330 10~42 500~900 79 5~9 5 549
48 10/8R-M 300
49 10/8ST-AH 560 M M 612~1368 170~330 11~61 400~850 71 4~10 5 686
50 RU RU 540~1188 150~330 12~50 400~750 75 4~12
51 12/10ST-AH 560 M M 936~1980 260~550 7~68 300~800 82 6 765
52 M M 720~1620 200~450 7~45 300~650 80 2.5~7.5 5
53 14/12ST-AH 560 M
AU		 M
AU		 1260~2772
1152~2520		 350~770
320~700		 13~63
13~44		 300~600
300~500		 77
79		 3~10
3~8		 5 965
54
55 16/14ST-AH 560
56 16/14TU-AH 1200 M M 1368~3060 380~850 11~63 250~550 79 4~10 5 1067
57 16/14ST-AH 560 4.5~6 8 1067
58 16/14TU-AH 1200 M M 1699~3798 472~1055 14~75 250~550 75
59 18/16ST-AH 560 M M 2160~5040 600~1400 8~66 200~500 80 4.5~9 5 1245
60 18/16TU-AH 1200
61 20/18TU-AH 1200 M M 2520~5400 700~1500 13~57 200~400 85 5~10 5 1370





Note

  1. RU represents rubber material, and M represents alloy wear-resistant material.
  2. The recommended traffic range is 50% Q ‘≤ Q ≤ 110% Q’ (Q ‘≈ corresponding to the highest efficiency point traffic)

NPSH refers to the recommended NPSH value corresponding to point Q at the highest speed.
