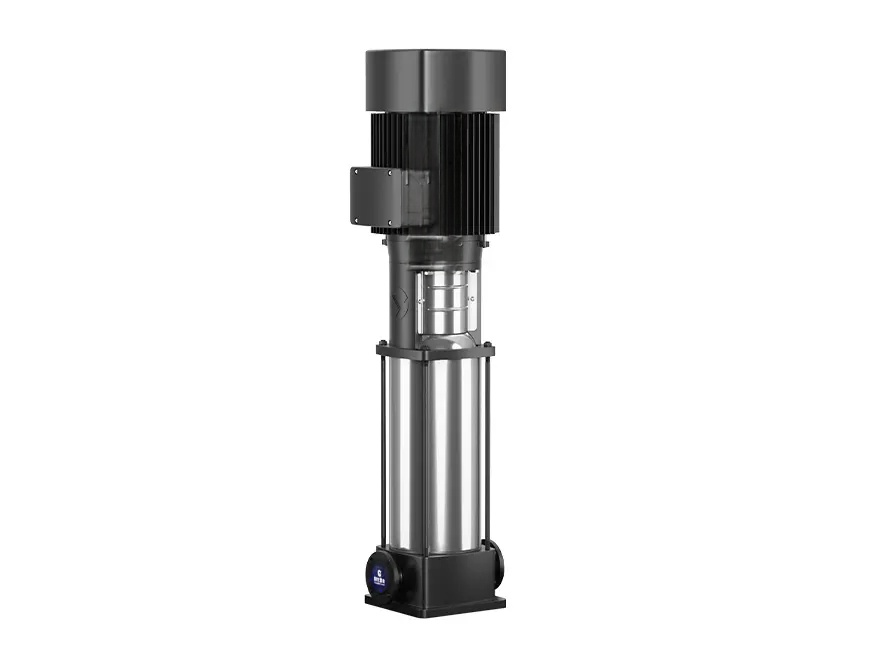

CDL_CDLF stainless steel vertical multi-stage pump

  • D-type horizontal, single suction multi-stage, segmented centrifugal pumps have the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long service life, and easy installation and maintenance.
  • For transporting clean water or other liquids with physical and chemical properties similar to water.
  • It can be used to transport hot water, oil, corrosive or abrasive media by changing the material and sealing form of the pump flow components and adding a cooling system.



Widely used in high-rise buildings, with the inlet and outlet located on the same horizontal line

Product Introduction

  • The CDL/CDLF series lightweight stainless steel vertical multi-stage centrifugal pump is a carefully manufactured and designed non self-priming vertical multi-stage centrifugal pump.
  • Adoptingstandardvertical motors and quick installation mechanical seals,the mechanical seal structure has been optimized.
  • Can transport various media from tap water to industrial liquids, suitable for different temperature, flow rate, and pressure ranges



Advantage

  • By adopting excellent hydraulic models and advanced manufacturing processes, the performance and service life of the pump are greatly improved.
  • Due to the use of mechanical seals made of hard alloy and fluororubber, the reliability of pump operation and the temperature of the conveying medium can be improved.
  • The overall structure is compact, the volume is small, the weight is light, the noise is low, the energy-saving effect is significant, and the maintenance is convenient.
  • The inlet and outlet of the multi-stage pump are located on the same horizontal line as the pump seat and can be directly used in pipelines.
  • Using standard motors, users can equip motors according to their needs. Users can also equip intelligent protectors as needed to effectively protect the pump from dry running, phase loss, overload, etc.

scope of application

  • A non flammable and explosive medium that is thin, clean, and free of solid particles or fibers.
  • Such as mineral water, softened water, pure water, clear oil, and other light chemical media.
  • The main material of the pump is stainless steel, which can be used to pump mildly corrosive media.

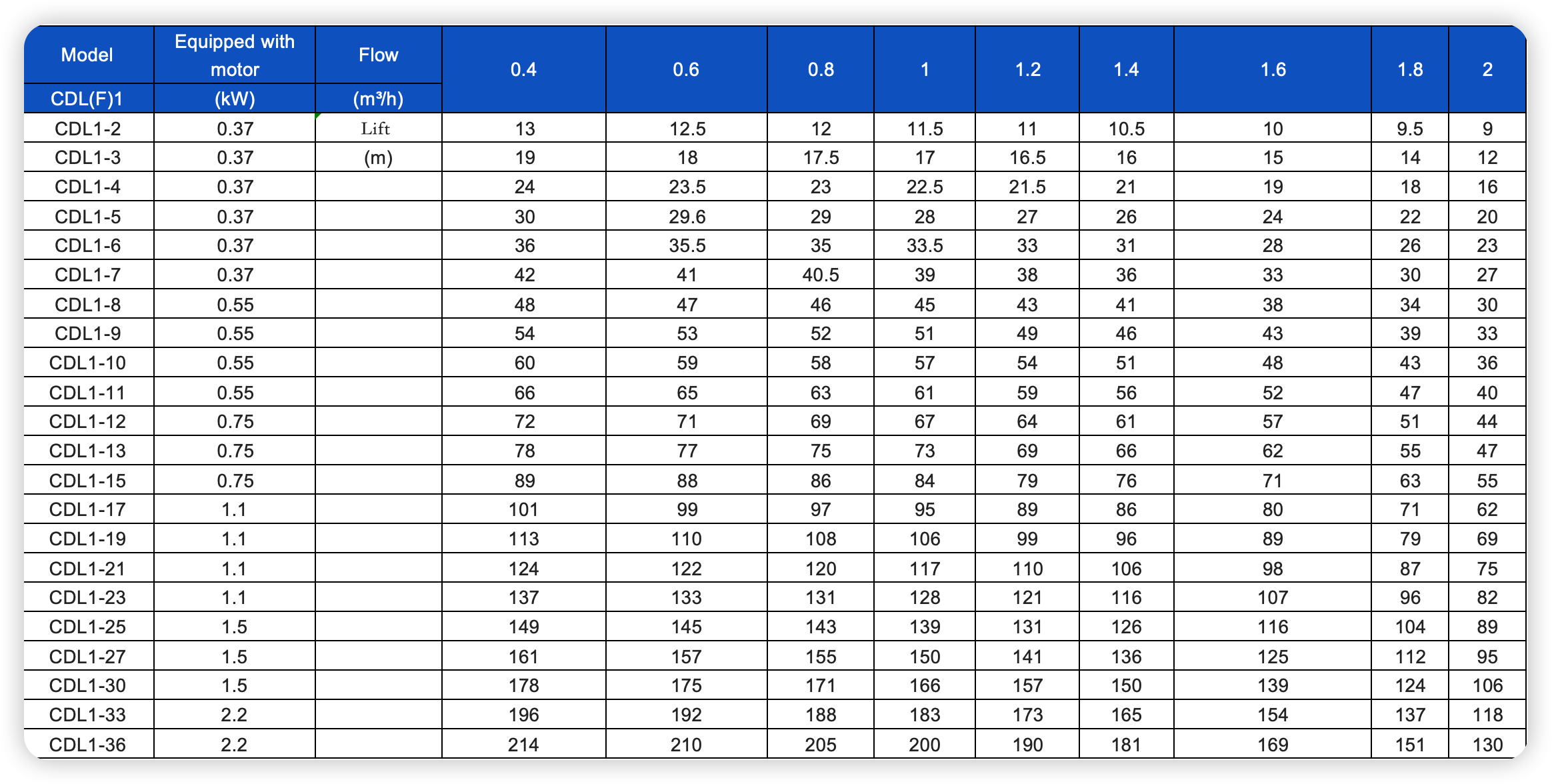

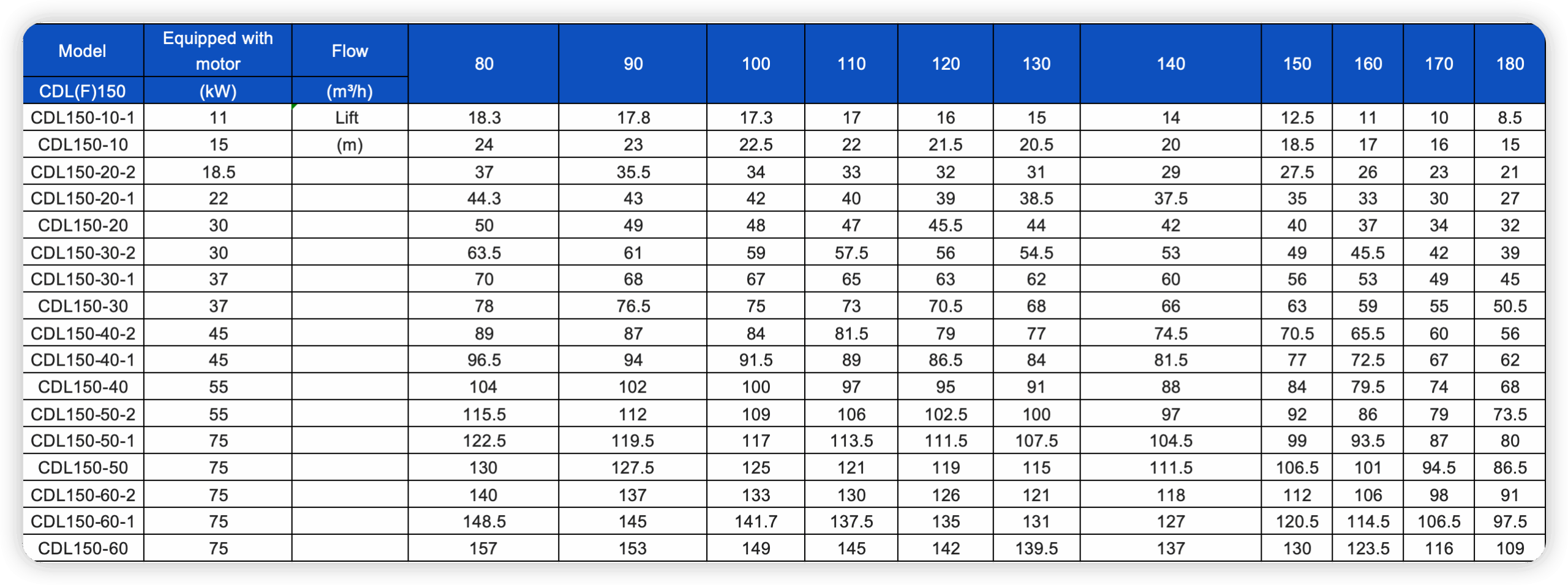

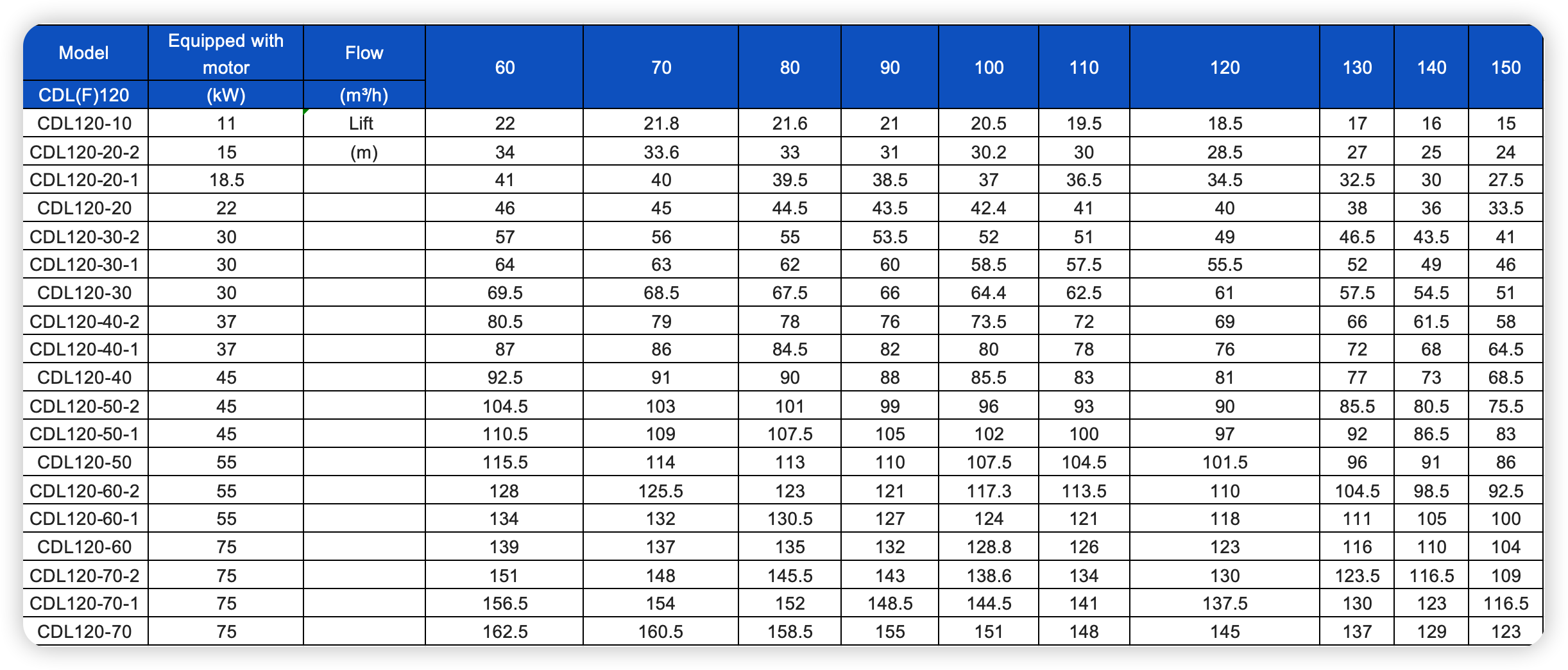

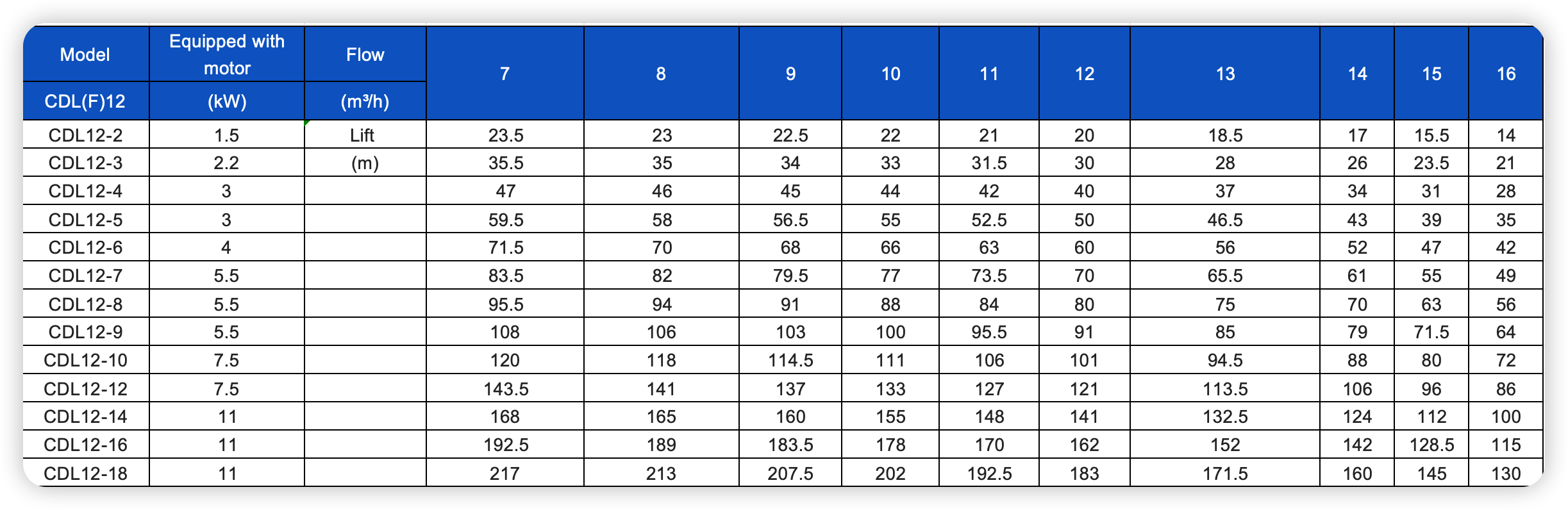

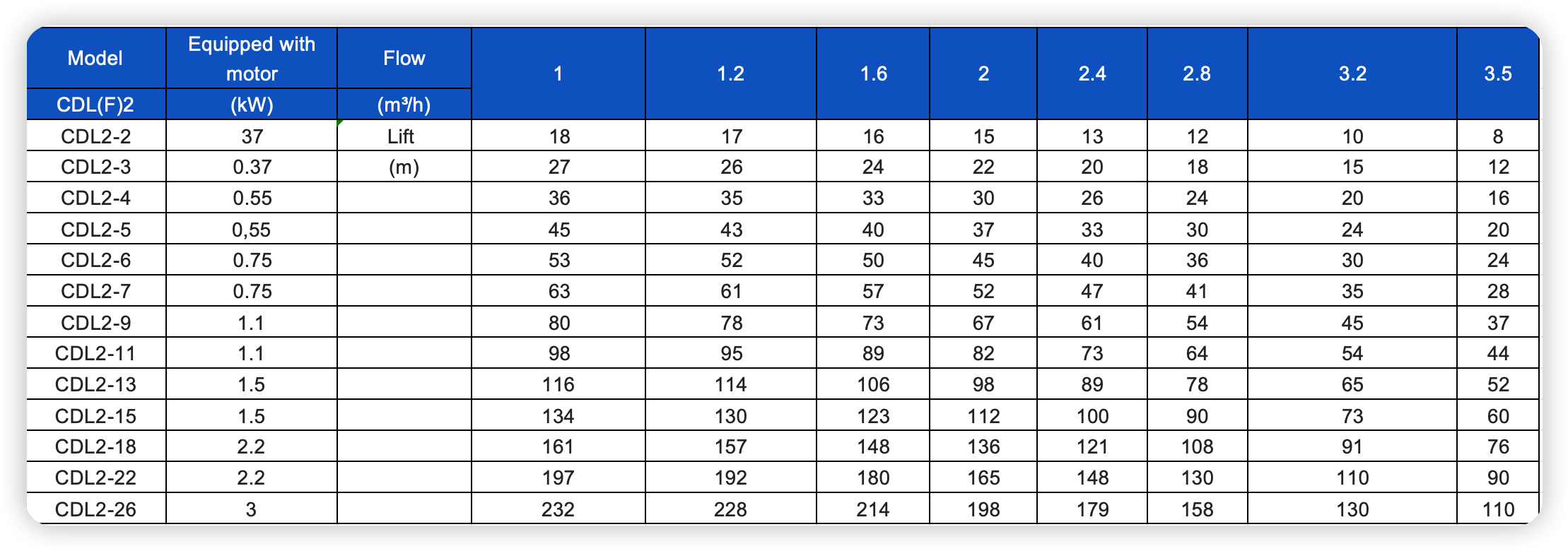

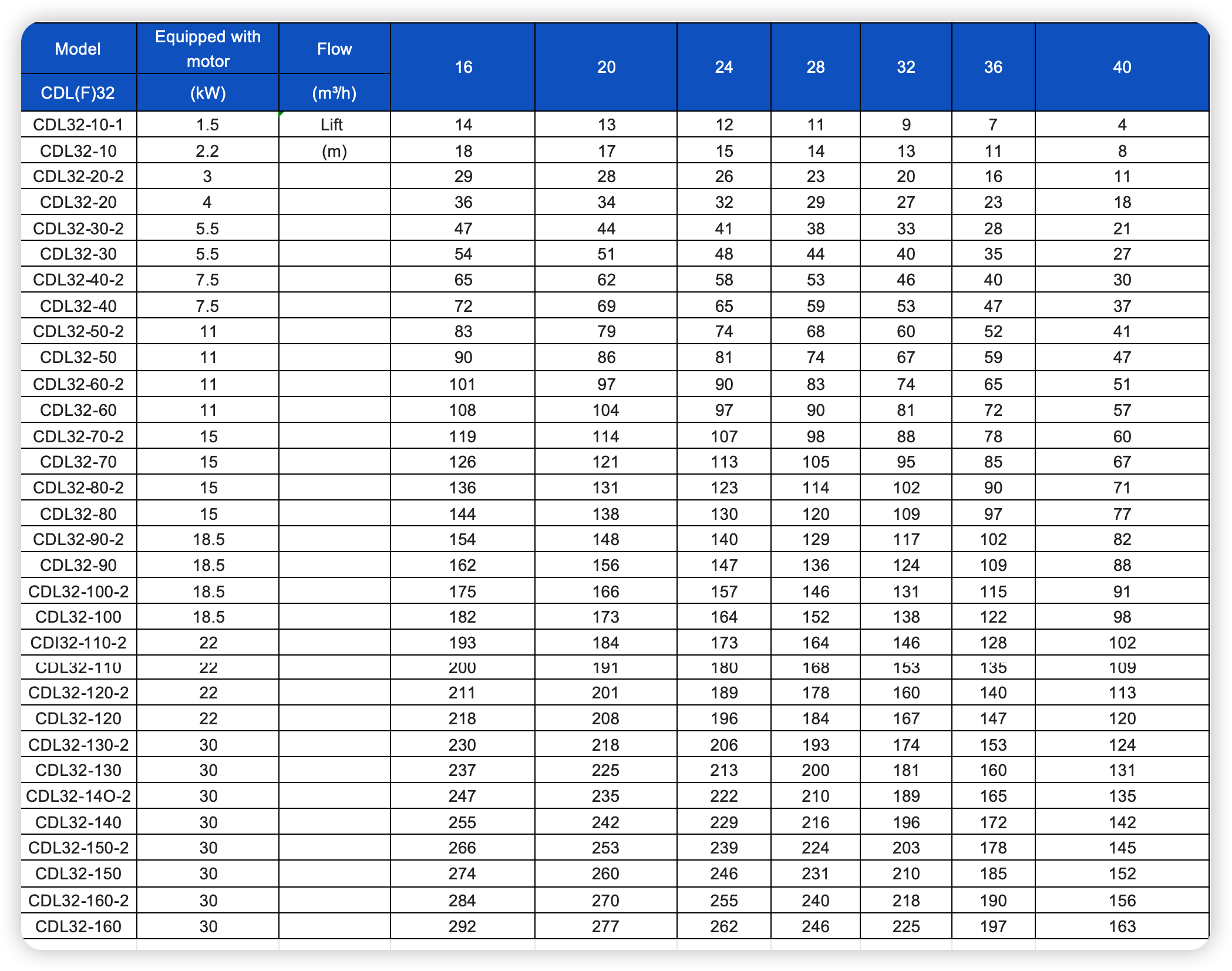

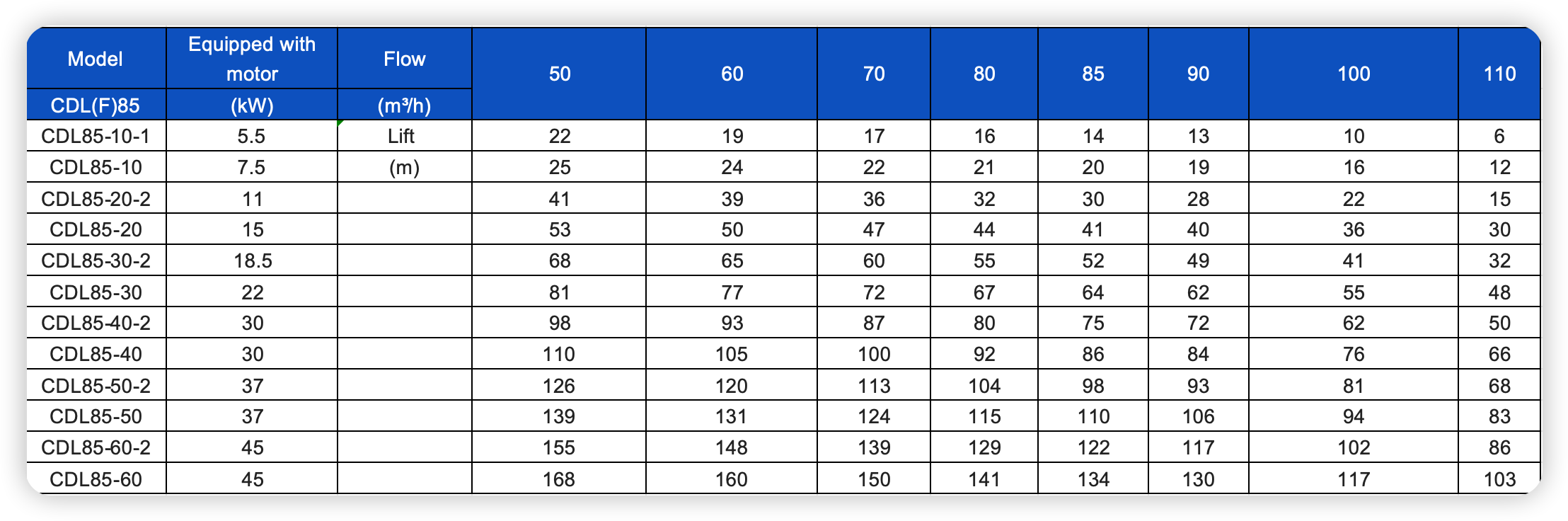

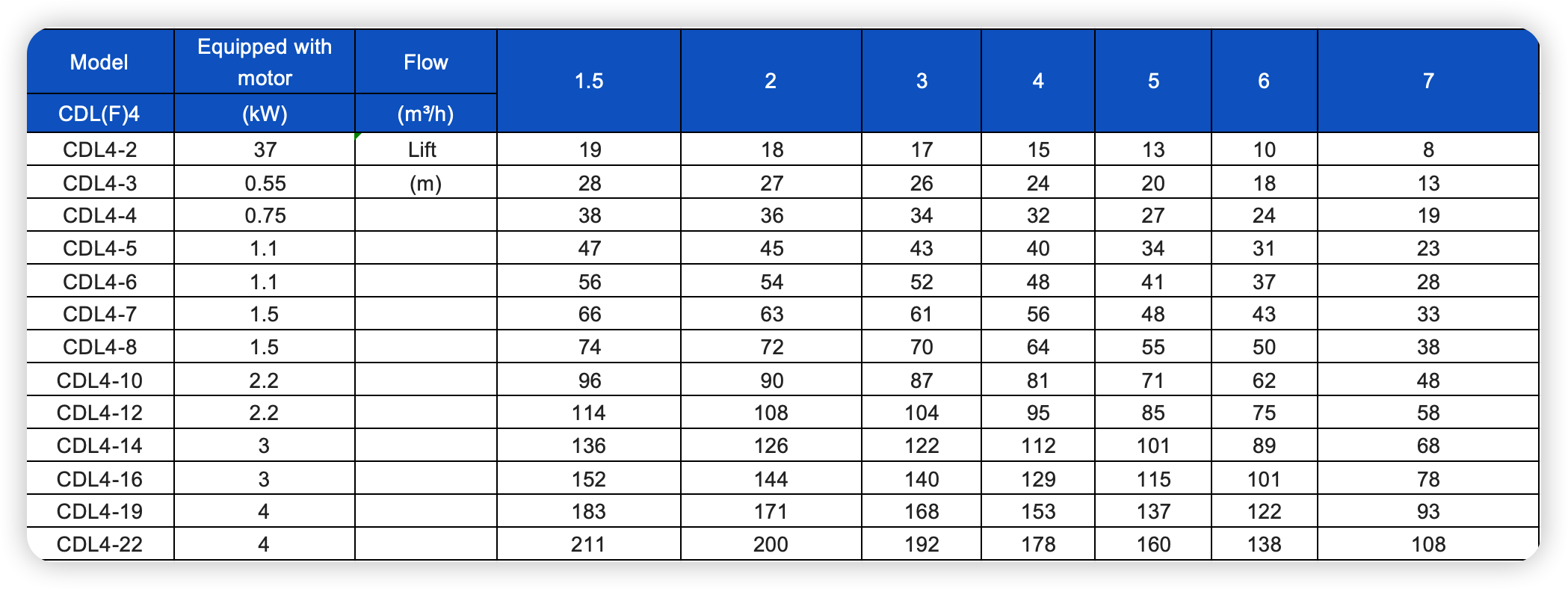

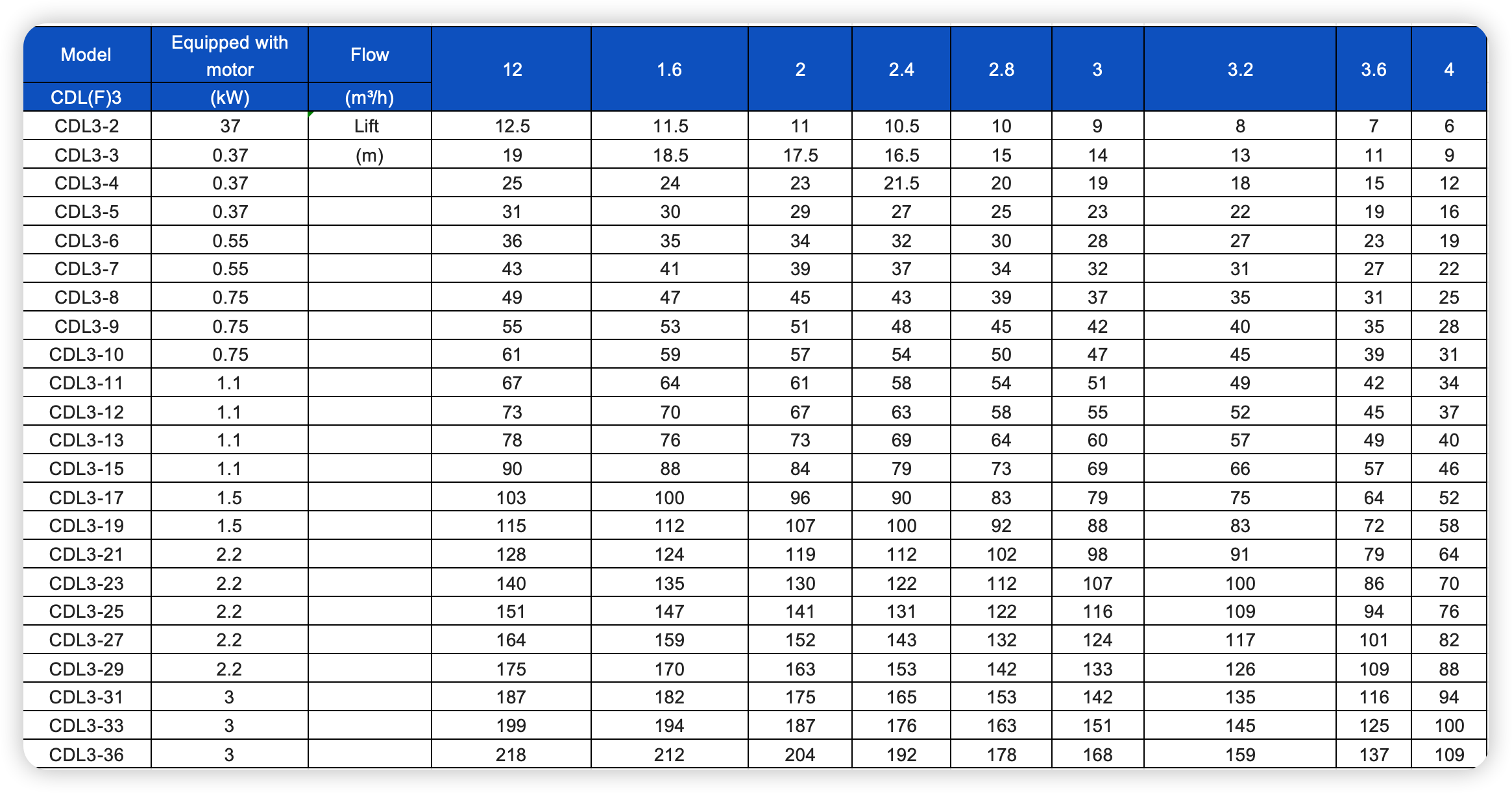

performance parameter





CDL_CDLF stainless steel vertical multi-stage pump
CDL_CDLF stainless steel vertical multi-stage pump
CDL_CDLF stainless steel vertical multi-stage pump
CDL_CDLF stainless steel vertical multi-stage pump
CDL_CDLF stainless steel vertical multi-stage pump
CDL_CDLF stainless steel vertical multi-stage pump
CDL_CDLF stainless steel vertical multi-stage pump
CDL_CDLF stainless steel vertical multi-stage pump
CDL_CDLF stainless steel vertical multi-stage pump (10)
CDL_CDLF stainless steel vertical multi-stage pump

CDL/CDLF stainless steel vertical multi-stage pump

CDL/CDLF stainless steel vertical multi-stage pump
CDL/CDLF stainless steel vertical multi-stage pump
CDL/CDLF stainless steel vertical multi-stage pump
CDL/CDLF stainless steel vertical multi-stage pump
CDL/CDLF stainless steel vertical multi-stage pump
CDL/CDLF stainless steel vertical multi-stage pump
CDL/CDLF stainless steel vertical multi-stage pump
CDL/CDLF stainless steel vertical multi-stage pump
CDL/CDLF stainless steel vertical multi-stage pump
CDL/CDLF stainless steel vertical multi-stage pump
CDL/CDLF stainless steel vertical multi-stage pump
CDL/CDLF stainless steel vertical multi-stage pump



keyword:Stainless steel multi-stage pump、Vertical centrifugal pump、High lift water pump、Pump for transporting water and mildly corrosive media
