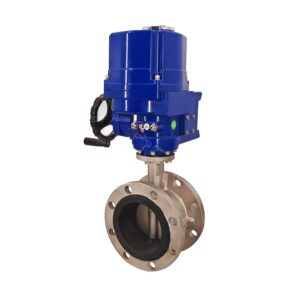

LDBUC series electric flange soft seal butterfly valve
| Valve body parameters | Technical Specifications | |
| Nominal diameter 50-1000mm | Power supply voltage AC220V, AC380V (other specially designed) | |
| Nominal pressure PN10, PN16, PN25 | Environmental temperature -30 ℃~+70 ℃ | |
| Connection method: flange connection | Protection level IP673 | |
| Valve body materials WCB, SS304, SS316, SS316L | ||
| Disk board materials WCB, SS304, SS316, SS316L | ||
| Sealing materials NBR, EPDM, J (lining rubber) | Function Options | |
| Operating Temperature | C2：-10℃～80℃ | Explosion proof type Explosion proof grade: dIIBT5 |
| C3：-10℃～130℃ | Signal feedback X1 mechanical passive signal, X2 active signal | |
| standard specification | Manual function Manual function Electric actuator with manual valve opening and closing function | |
| Flange standards GB9113, GB9115 | The switch type is powered on and fully engaged, and powered on and fully engaged. | |
| Testing and Inspection GB/T13927-1992 \ B/T9092-1999 | Adjustable input 4-20mA, 1-5V, 0-10V signals to achieve ball valve adjustment function | |
| Design Standard JB-T8527-1997 | Applicable media: water, air, gas, neutral gas or liquid | |
| Structural Length Standard GB/T12221 | Please refer to the optional electric actuator information for the electric parameters in the remarks | |

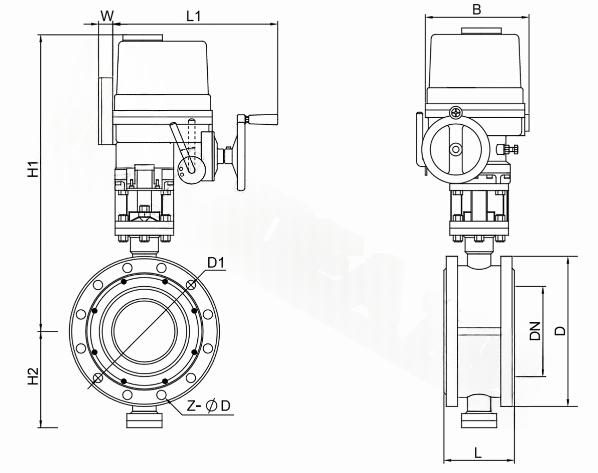

| GB valve body size (mm) with LDE electric actuator | ||||||||
| Model | DN | L | D | D1 | H1 | H2 | Z-ФD | E-electric head |
| LDBUC50 | 50 | 108 | 155 | 125 | 412 | 70 | 4-Ф16 | LDE-010 |
| LDBUC65 | 65 | 112 | 175 | 145 | 412 | 76 | 4-Ф16 | LDE-010 |
| LDBUC80 | 80 | 114 | 190 | 160 | 425 | 89 | 4-Ф16 | LDE-010 |
| LDBUC100 | 100 | 127 | 214 | 180 | 437 | 104 | 8-Ф16 | LDE-010 |
| LDBUC125 | 125 | 140 | 252 | 210 | 452 | 120 | 8-Ф16 | LDE-010 |
| LDBUC150 | 150 | 140 | 282 | 240 | 504 | 132 | 8-Ф16 | LDE-015 |
| LDBUC200 | 200 | 152 | 337 | 295 | 521 | 167 | 8-Ф16 | LDE-020 |
| LDBUC250 | 250 | 165 | 405 | 350/355 | 607 | 202 | 8-Ф16 | LDE-040 |
| LDBUC300 | 300 | 178 | 460 | 440/410 | 686 | 239 | 12-Ф20 | LDE-060 |
| LDBUC350 | 350 | 190 | 524 | 460/470 | 714 | 265 | 12-Ф20 | LDE-120 |
| LDBUC400 | 400 | 216 | 585 | 515/525 | 749 | 297 | 16-Ф20 | LDE-120 |
| GB valve body size (mm) with LDX electric actuator | ||||||||
| Model | DN | L | D | D1 | H1 | H2 | Z-ФD | E-electric head |
| LDBUC50 | 50 | 108 | 155 | 125 | 302 | 70 | 4-Ф16 | LDX-005 |
| LDBUC65 | 65 | 112 | 175 | 145 | 302 | 76 | 4-Ф16 | LDX-005 |
| LDBUC80 | 80 | 114 | 190 | 160 | 315 | 89 | 4-Ф16 | LDX-005 |
| LDBUC100 | 100 | 127 | 214 | 18 | 327 | 104 | 8-Ф16 | LDX-010 |
| LDBUC125 | 125 | 140 | 252 | 210 | 342 | 120 | 8-Ф16 | LDX-010 |
| LDBUC150 | 150 | 140 | 282 | 240 | 348 | 132 | 8-Ф16 | LDX-016 |
| LDBUC200 | 200 | 152 | 337 | 295 | 415 | 167 | 8-Ф16 | LDX-020 |
| LDBUC250 | 250 | 165 | 405 | 350/355 | 482 | 202 | 8-Ф16 | LDX-040 |
| LDBUC300 | 300 | 178 | 460 | 440/410 | 560 | 239 | 12-Ф20 | LDX-60 |
| LDBUC350 | 350 | 190 | 524 | 460/470 | 721 | 265 | 12-Ф20 | LDX-100 |
| LDBUC400 | 400 | 216 | 585 | 515/525 | 756 | 297 | 16-Ф20 | LDX-160 |
Application Areas
This product is equipped with a butterfly valve and an LDE series electric actuator (optional explosion-proof), which can be controlled by inputting control signals (4-20mA or 1-5~VDC) and single-phase power supply. The electric butterfly valve has the advantages of strong functionality, small size, lightweight, reliable performance, simple matching, and large circulation capacity. It is particularly suitable for applications where the medium is viscous, contains particles, and has fibrous properties. At present, this electric regulating valve butterfly valve is widely used in industrial automatic control systems in industries such as food, environmental protection, light industry, petroleum, papermaking, teaching and research equipment, and power.
