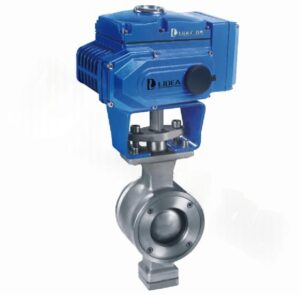

Electric V-type Clamp Ball Valve LDBAAV

Application Areas
This product is equipped with LDE series actuators and does not require additional servo amplifiers. It can control operation and achieve pressure and current control by inputting (4-20mA or 1-5VDC) signals and single-phase power supply
Adjustment of parameters such as quantity, temperature, and liquid level. There is a V-shaped cut on the valve core, which generates shear force when rotating relative to the hard sealed valve, which can cut off the fibers and prevent them from getting stuck. It has the ability to circulate
It has the characteristics of high adjustment accuracy, large adjustable ratio, good sealing, and light weight. Suitable for most occasions except for small caliber, angular, and three-way connections, it is the best substitute for imported products
This product is particularly suitable for regulating mud and media containing fibrous materials, as well as media containing small suspended solids. Widely used in industries such as papermaking, sugar production, petrochemicals, metallurgy, etc
In the dynamic control system.

Product Features
1. Introducing German technology to design a simple structure, light weight, and low material cost, which is more economical than straight stroke regulating valves with the same flow capacity.
2. The integral valve body without any pipe joints is not affected by pipeline or bolt stress, and since the valve body has no pipe joints, the pressure resistant shell will not be affected by sudden pressure changes
3. The valve seat used for leak prevention is lined with a stainless steel inner core PTFE cup or O-ring seal at its outer diameter. The valve seat is made of tungsten cobalt hard alloy with a larger cross-section and is made of an alloy,
The structure of the valve seat is further enhanced by an alloy corrugated spring.
4. Featuring a V-shaped valve body, it ensures precise control over the entire range even in low flow or high viscosity media
5. When the valve is closed, a wedge-shaped shear effect is generated between the V-shaped notch and the valve seat, which has self-cleaning function to prevent the ball core from getting stuck, especially suitable for freezing and fiber containing materials after pipeline connection
Fluid control applications for fluids, slurry fluids, high viscosity fluids containing polymers, particles, crystals, and other fluids.
