LD88 series high-pressure solenoid valve
| Scope of application | Technical Specifications |
| Suitable for automation control systems in petrochemical power, gas, analytical measuring instruments, shipbuilding industry, fire-fighting equipment, HVAC, environmental protection equipment, cleaning equipment, sprinkler irrigation systems, machine manufacturing, food industry, etc. | Medium temperature: C2: -10 ℃~80 ℃ (130 ℃ optional) |
| Work pressure: 0-25 bar, 3-50 bar | |
| Operation mode: step-by-step direct acting, pilot operated, diaphragm structure (LD88A type) | |
| Working type: normally closed type, normally open type (diameter ≥ 8mm) | |
| Valve body material: brass SS304 | |
| Sealing material: NBR, PTFE |
| Function Options | Electrical parameters | |||
| code name | Function Options | Functional Description | Coil parameters: | AC220V 110V 24V, DC24V 12V |
| NO | Normally closed type | Power on valve open, power off valve closed | Protection Rating: | IP65 H级 |
| K | Normally Open | Power on valve closed, power off valve open | Rated power: | DN1～2mm,12W |
| T | Timer | Can set the on/off interval time | DN3～25mm,25W | |

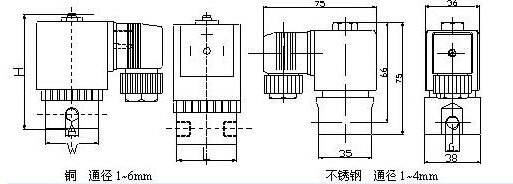

| Specification parameter table (small direct acting type) | |||||||
| Model | Interface G | Diameter mm | Cv value | L | W | H | Work pressure（bar) |
| LD8801 | 1/8 | 1 | 0.02 | 32/25 | 32/20 | 66/55 | 0～25 |
| LD8802 | 1/8 | 2 | 0.08 | 32/25 | 32/20 | 66/55 | 0～16 |
| LD8803 | 1/8 1/4 | 3 | 0.16 | 32/46 | 32 | 66 | 0～10 |
| LD8805 | 1/4 | 5 | 0.32 | 32/46 | 32 | 66 | 0～4 |
| LD8806 | 1/4 | 6 | 0.55 | 50 | 38 | 85 | 0～2.5 |
| LD8801SS | 1/8 1/4 | 1 | 0.02 | 75 | 38 | 75 | 0～16 |
| LD8802SS | 1/8 1/4 | 2 | 0.08 | 75 | 38 | 75 | 0～16 |
| LD8803SS | 1/8 1/4 | 3 | 0.16 | 75 | 38 | 75 | 0～10 |
| LD8804SS | 1/8 1/4 | 4 | 0.32 | 75 | 38 | 75 | 0～6 |
| Specification parameter table (small direct acting type) | |||||||
| Model | Interface G | Diameter mm | Cv value | L | W | H | Work pressure（bar) |
| LD8808 | 1/4 | 8 | 2.52 | 71 | 32 | 97 | 3～50 |
| LD8810 | 3/8 | 10 | 2.52 | 71 | 32 | 97 | 3～50 |
| LD8815 | 1/2 | 15 | 2.52 | 71 | 32 | 97 | 3～50 |
| LD8820 | 3/4 | 20 | 5 | 91 | 57 | 116 | 3～40 |
| LD8825 | 1 | 25 | 8.5 | 117 | 71 | 123 | 3～40 |
| LD8808A | 1/4 | 8 | 2.8 | 77 | 53 | 106 | 3～50 |
| LD8810A | 3/8 | 10 | 2.8 | 77 | 53 | 106 | 3～50 |
| LD8815A | 1/2 | 15 | 2.8 | 77 | 53 | 106 | 3～50 |
| LD8820A | 3/4 | 20 | 2.8 | 66 | 44 | 91/111 | 3～50 |
optimization suggestions
*The fluid contains impurities, and a filter screen (mesh ≥ 60) should be installed in front of the valve, and the fluid should not have any solidification or crystallization phenomenon.
*The direction of the valve body marking must be consistent with the flow direction of the medium.
*A diameter ≤ 6mm is a direct acting type, which can be started at zero pressure and is also suitable for low vacuum; A pilot type with a diameter ≥ 8mm must meet the fluid pressure difference before it can be opened.
