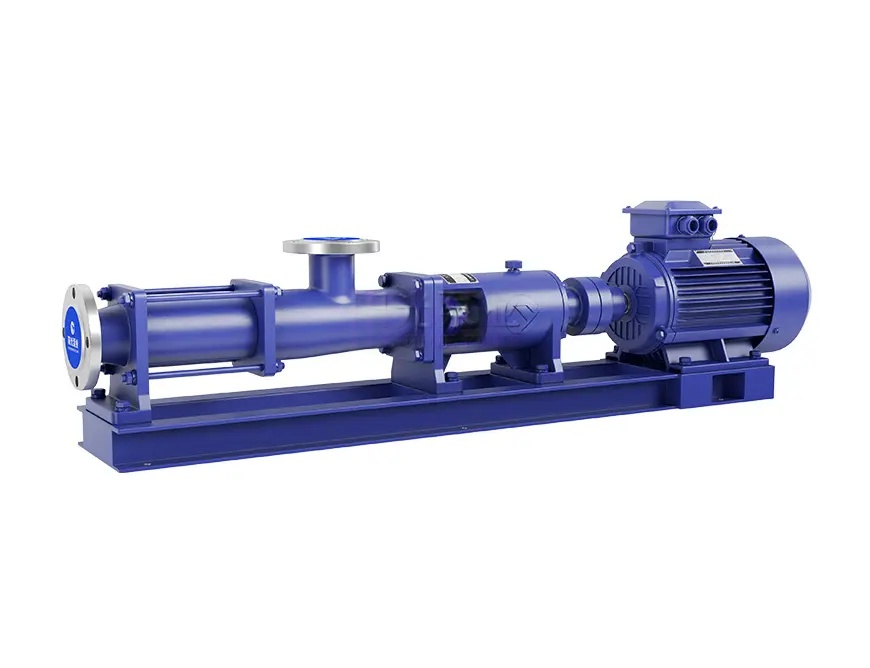

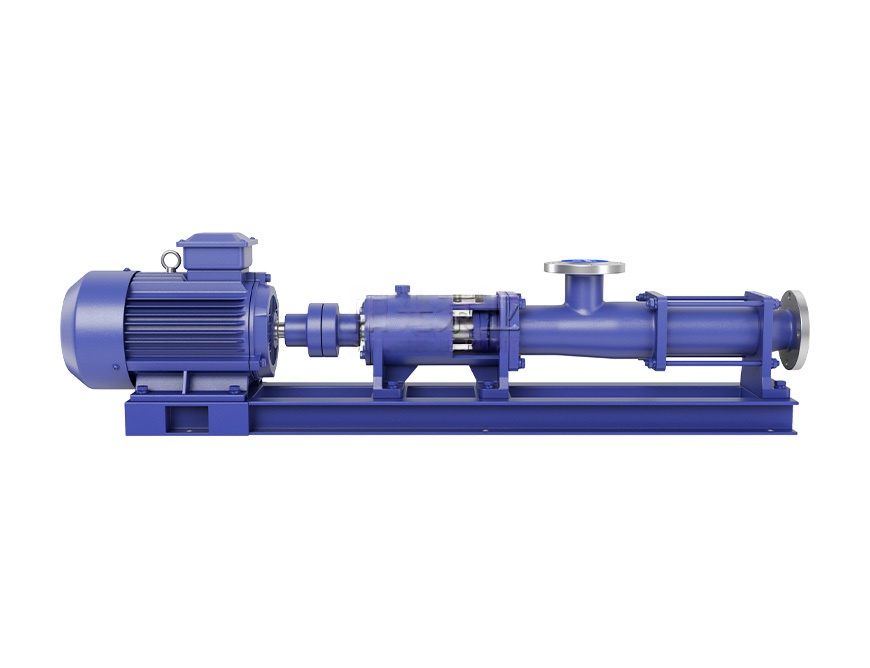

The G series single screw pump is a new type of pump that works according to the principle of rotary meshing displacement. The main working components are eccentric screw (rotor) and fixed liner (stator).
A separate sealed chamber, where the medium flows uniformly in the axial direction, with low internal flow velocity, low noise, constant volume, and stable pressure. Therefore, there will be no vortex or agitation, and the medium will not be damaged by its inherent structure.
Due to the use of various elastic materials for the stator, Huaxiang screw pumps have characteristics that general pump types cannot handle for the transportation of high viscosity fluids and media containing hard suspended particles or fiber media.
Its flow rate is proportional to the rotational speed.
High pressure and large flow rate, can be used under high viscosity pressure
Product Introduction
The G series single screw pump is a new type of pump that works according to the principle of rotary meshing displacement. The main working components are eccentric screw (rotor) and fixed liner (stator).
A separate sealed chamber, where the medium flows uniformly in the axial direction, with low internal flow velocity, low noise, constant volume, and stable pressure. Therefore, there will be no vortex or agitation, and the medium will not be damaged by its inherent structure.
Due to the use of various elastic materials for the stator, Huaxiang screw pumps have characteristics that general pump types cannot handle for the transportation of high viscosity fluids and media containing hard suspended particles or fiber media.
Its flow rate is proportional to the rotational speed.
Advantage
Continuous low pulsation conveying, unaffected by pressure and viscosity fluctuations.
Widely applicable, capable of conveying both flowing and non flowing materials.
The medium will not be stirred, squeezed or sheared during the pumping process.
High efficiency, the conveying capacity is proportional to the speed, and the conveying capacity can be adjusted by frequency conversion.
Most liquids can be pumped with minimal agitation and pulsation.
Easy to maintain and repair, with high-voltage transmission capability.
scope of application
Petroleum industry: heavy oil transportation, oil and gas mixed transportation, oil-water separation, and waste oil recovery systems.
Chemical and pharmaceutical industries: various pastes, emulsions, suspensions, etc.
Environmental engineering: various sewage transportation, dewatering sludge transportation, metering and dosing of coagulants and their chemical agents, etc.
Mineral engineering: production equipment for titanium dioxide, kaolin, calcium carbonate, etc.
Food industry: dairy products, fruit juice, puree, vegetable sauce, beer, etc.
Paper industry: raw material equipment, pulp making, and wastewater treatment, etc.

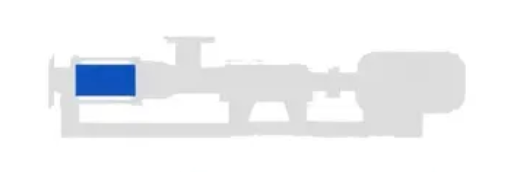

Material comparison
Comparison of Corrosion Resistance of Four Pump Body Materials:
According to the properties of the liquid medium you are conveying, choose different materials for the stator
Natural rubber
Excellent wear resistance. The corrosion resistance is average, and it will swell when encountering some gasoline,
Nitrile rubber
Good oil resistance, moderate corrosion resistance, strong compatibility, and can be applied to most general liquid and fluid media.
EPDM rubber
High temperature resistance, wear resistance, moderate corrosion resistance, suitable for liquid and fluid media with high temperature and wear resistance
Type single screw pump
Fluororubber
Good corrosion resistance, moderate wear resistance, suitable for acid-base chemical fluid media with general corrosiveness
silicone rubber
Strong isolation, excellent corrosion resistance, food grade hygiene grade, suitable for industries such as food, pharmaceuticals, and laboratories,

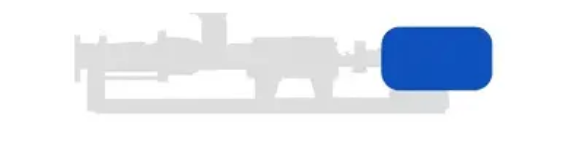

Selection of motor types
Choose different types of motors based on the viscosity of the medium and the flow rate you require
Type single screw pump
Standard motor
960 RPM constant speed motor
Motors of level 6 or 8
Non variable frequency use
gear motor
Customizable rotational speed
Fixed rotational speed
High viscosity or fluidity
Poor liquids require the use of reducers
Continuously variable speed motor
Fixed speed adjustment
Practical and low failure rate
Monitor the specific speed at any time
Variable frequency motor
Low failure rate and high torque
It can be done through a frequency converter
Adjust Hertz while adjusting speed
Performance parameter
Performance parameters at fixed speed:
Model
Flow
Pressure
Maximum allowable
speed
Motor Power
Required
cavitation
allowance
Imported flange
diameter
Export flange
diameter
Allow
particle
diameter
Allow fiber
length
(m³/h)
(MPa)
(r/min)
(kW)
(m)
(mm)
(mm)
(mm)
( mm)
G20-1
0.8
0.6
960
0.75
4
25
25
1.5
25
G20-2
1.2
1.5
G25-1
2
0.6
960
1.5
32
25
2
30
G25-2
1.2
2.2
G30-1
5
0.6
960
2.2
50
40
2.5
35
G30-2
1.2
3
G35-1
8
0.6
960
3
65
50
3
40
G35-2
1.2
4
G40-1
12
0.6
960
4
80
65
3.8
45
G40-2
1.2
5.5
G50-1
20
0.6
960
5.5
4.5
100
80
5
50
G50-2
1.2
7.5
G60-1
30
0.6
960
11
5
125
100
6
60
G60-2
1.2
15
G70-1
45
0.6
720
11
150
125
8
70
G70-2
1.2
15
G85-1
60
0.6
720
15
150
150
10
80
G85-2
1.2
450
22
G105-1
80
0.6
400
22
200
200
15
110
G105-2
1.2
350
30
G135-1
120
0.6
350
37
250
250
20
150
G135-2
1.2
280
Single stage, performance parameters for gear shifting, electromagnetic speed regulation motor with gear shifting, or continuously variable speed motor with gear shifting:
Model
Pressure0.3MPa
Pressure0.6MPa
Adjustable speed
Speed
Flow
Motor Power
Speed
Flow
Motor Power
Speed
Flow Motor Power
(r/min)
(m³/h)
(kW)
(r/min)
(m³/h)
(kW)
(r/min)
(m³/h)
(kW)
G20-1
960
0.96
0.75-6 level/gearbox
960
0.8
0.75-6level/gearbox
125～1250
0.1～1.5
1.1
720
0.8
0.55-8level/gearbox
720
0.5
0.75-8level/gearbox
510
0.4
0.55-4level/gearbox
510
0.3
0.75-4level/gearbox
G25-1
960
2.4
0.75-6level/gearbox
960
2
1.5-6level/gearbox
125～1250
0.1～3
1.5
720
1.5
0.55-8level/gearbox
720
1.27
1.1-8level/gearbox
510
1.08
0.55-4level/gearbox
510
0.9
1.1-4level/gearbox
G30-1
960
3.6
1.5-6level/gearbox
960
3
2.2-6level/gearbox
125～1250
0.2～4
2.2
720
2.28
1.1-8level/gearbox
720
1.9
1.5-8level/gearbox
510
1.63
1.1-4level/gearbox
510
1.35
1.5-4level/gearbox
G35-1
720
4.8
2.2-8level/gearbox
720
4.04
3-8level/gearbox
125～890
0.3～5
3
510
3.36
1.5-4level/gearbox
510
2.8
2.2-4level/gearbox
380
1.92
1.1-4level/gearbox
380
1.6
1.5-4level/gearbox
G40-1
510
6.8
2.2-4level/gearbox
510
5.6
3-4level/gearbox
125～890
0.3～10
4
380
5.1
1.5-4level/gearbox
380
4
2.2-4level/gearbox
252
2.65
1.1-6level/gearbox
252
2.2
1.5-6level/gearbox
G50-1
510
13.8
4-4level/gearbox
510
11.5
5.5-4level/gearbox
80～750
1～18
5.5
380
10.2
4-4level/gearbox
380
7.5
5.5-4level/gearbox
252
5.6
3-6level/gearbox
252
4.4
5.5-6level/gearbox
G60-1
510
20.8
7.5-4level/gearbox
510
16
11-4level/gearbox
63～630
1～20
11
380
15.6
7.5-4level/gearbox
380
12
11-4level/gearbox
252
7.8
5.5-6level/gearbox
252
6
7.5-6level/gearbox
G70-1
510
26
11-4level/gearbox
510
20
11-4level/gearbox
56～560
1～22
11
380
17
7.5-4level/gearbox
380
13
11-4level/gearbox
252
9.1
7.5-6level/gearbox
252
7
7.5-6level/gearbox
G85-1
380
32
11-4level/gearbox
380
25
15-4level/gearbox
37～370
2～24
15
252
21
7.5-6level/gearbox
252
16
11-6level/gearbox
189
11
5.5-8level/gearbox
189
8
11-8level/gearbox
G105-1
380
80
15-4level/gearbox
380
65
22-4level/gearbox
29～290
3～50
22
252
44
15-6level/gearbox
252
34
22-6level/gearbox
189
29
11-8level/gearbox
189
22
15-8level/gearbox
G135-1
380
132
37-4level/gearbox
380
120
45-4level/gearbox
18～180
3～56
45
252
95
30-6level/gearbox
252
80
37-6level/gearbox
189
65
18.5-6level/gearbox
189
53
30-8level/gearbox
Dual stage, performance parameters for gear shifting, electromagnetic speed regulation motor with gear shifting, or continuously variable speed motor with gear shifting:
Model
Pressure0.3MPa
Pressure0.6MPa
Adjustable speed
Speed
Flow
Motor Power
Speed
Flow
Motor Power
Speed
Flow Motor Power
(r/min)
(m³/h)
(kW)
(r/min)
(m³/h)
(kW)
(r/min)
(m³/h)
(kW)
G20-1
960
0.96
0.75-6 level/gearbox
960
0.8
0.75-6level/gearbox
125～1250
0.1～1.5
1.1
720
0.8
0.55-8level/gearbox
720
0.5
0.75-8level/gearbox
510
0.4
0.55-4level/gearbox
510
0.3
0.75-4level/gearbox
G25-1
960
2.4
0.75-6level/gearbox
960
2
1.5-6level/gearbox
125～1250
0.1～3
1.5
720
1.5
0.55-8level/gearbox
720
1.27
1.1-8level/gearbox
510
1.08
0.55-4level/gearbox
510
0.9
1.1-4level/gearbox
G30-1
960
3.6
1.5-6level/gearbox
960
3
2.2-6level/gearbox
125～1250
0.2～4
2.2
720
2.28
1.1-8level/gearbox
720
1.9
1.5-8level/gearbox
510
1.63
1.1-4level/gearbox
510
1.35
1.5-4level/gearbox
G35-1
720
4.8
2.2-8level/gearbox
720
4.04
3-8level/gearbox
125～890
0.3～5
3
510
3.36
1.5-4level/gearbox
510
2.8
2.2-4level/gearbox
380
1.92
1.1-4level/gearbox
380
1.6
1.5-4level/gearbox
G40-1
510
6.8
2.2-4level/gearbox
510
5.6
3-4level/gearbox
125～890
0.3～10
4
380
5.1
1.5-4level/gearbox
380
4
2.2-4level/gearbox
252
2.65
1.1-6level/gearbox
252
2.2
1.5-6level/gearbox
G50-1
510
13.8
4-4level/gearbox
510
11.5
5.5-4level/gearbox
80～750
1～18
5.5
380
10.2
4-4level/gearbox
380
7.5
5.5-4level/gearbox
252
5.6
3-6level/gearbox
252
4.4
5.5-6level/gearbox
G60-1
510
20.8
7.5-4level/gearbox
510
16
11-4level/gearbox
63～630
1～20
11
380
15.6
7.5-4level/gearbox
380
12
11-4level/gearbox
252
7.8
5.5-6level/gearbox
252
6
7.5-6level/gearbox
G70-1
510
26
11-4level/gearbox
510
20
11-4level/gearbox
56～560
1～22
11
380
17
7.5-4level/gearbox
380
13
11-4level/gearbox
252
9.1
7.5-6level/gearbox
252
7
7.5-6level/gearbox
G85-1
380
32
11-4level/gearbox
380
25
15-4level/gearbox
37～370
2～24
15
252
21
7.5-6level/gearbox
252
16
11-6level/gearbox
189
11
5.5-8level/gearbox
189
8
11-8level/gearbox
G105-1
380
80
15-4level/gearbox
380
65
22-4level/gearbox
29～290
3～50
22
252
44
15-6level/gearbox
252
34
22-6level/gearbox
189
29
11-8level/gearbox
189
22
15-8level/gearbox
G135-1
380
132
37-4level/gearbox
380
120
45-4level/gearbox
18～180
3～56
45
252
95
30-6level/gearbox
252
80
37-6level/gearbox
189
65
18.5-6level/gearbox
189
53
30-8level/gearbox
explain:
The above performance parameters are the test data obtained during the room temperature water test.
For different media and speeds, performance parameters will vary, with flow rate values inversely proportional to concentration and viscosity, and directly proportional to speed.
Users must choose the type of pump based on usage requirements, the condition of the conveying medium, and selection principles, or consult with Huaxiang Industry customer service to determine the type of pump.
