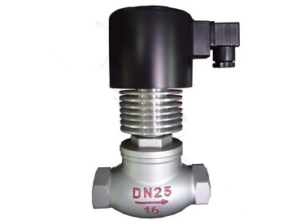

LD76 series high-temperature solenoid valve
| Scope of application | Technical Specifications | |||
| Suitable for control systems such as heating devices, industrial furnaces, high-temperature soot blowing, drying equipment, steel plants, thermal power plants, textile printing and dyeing, chemical equipment, HVAC, printing equipment, pharmaceutical machinery, petrochemicals, electroplating and coating. | Medium temperature: | C7: -20 ℃~350 ℃ Special C8: -20 ℃~400 ℃ | ||
| working pressure: | 0.3～16bar | |||
| Operation mode: | Pilot piston type | |||
| Working type: | Normally closed type, explosion-proof type | |||
| Valve body material: | SS304 | |||
| Sealing material: | PTFE、 red copper | |||
| Function Options | Electrical parameters | |||
| code name | Function Options | Functional Description | Coil parameters: | AC220V DC24V 12V |
| E | Explosion-proof type | Explosion proof grade ExdIIBT4 | Protection Rating: | IP54 (ordinary coil) IP65 (explosion-proof coil) |
| S | Manual function | Can be manually opened and manually closed | Rated power: | DN≤25，AC 45VA,DC 40W |
| J | Energy saving module | Reduce coil temperature rise and power consumption | DN≥25，AC 70VA,DC 65W | |

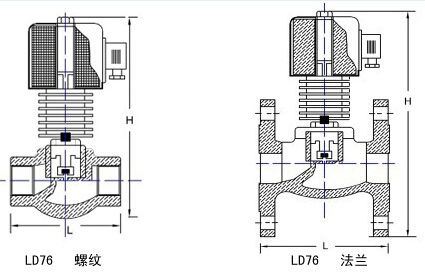

| Specification parameter table (threaded connection) | ||||||
| Model | Interface G | Diameter mm | Cv value | L | H/Explosion proof | Work pressure（bar) |
| LD7615 | 1/2 | 15 | 2.8 | 80 | 195/225 | 0.3～16 |
| LD7620 | 3/4 | 20 | 5.4 | 82 | 198/228 | 0.3～16 |
| LD7625 | 1 | 25 | 8.5 | 105 | 205/235 | 0.3～16 |
| LD7632 | 11/4 | 32 | 14 | 105 | 208/238 | 0.3～16 |
| LD7640 | 11/2 | 40 | 18 | 120 | 226/256 | 0.3～16 |
| LD7650 | 2 | 50 | 28 | 140 | 236/266 | 0.3～16 |
| Specification parameter table (flange connection) | ||||||||
| Model | Diameter mm | Cv value | L | H/Explosion proof | D | D1 | n-Φd | Work pressure（bar) |
| LD7615F | 15 | 2.8 | 90 | 205/215 | 95 | 65 | 4-Φ12 | 0.3～16 |
| LD7620F | 20 | 5.4 | 115 | 205/215 | 105 | 75 | 4-Φ14 | 0.3～16 |
| LD7625F | 25 | 8.5 | 125 | 208/218 | 115 | 85 | 4-Φ14 | 0.3～16 |
| LD7632F | 32 | 14 | 140 | 218/228 | 135 | 100 | 4-Φ18 | 0.3～16 |
| LD7640F | 40 | 18 | 165 | 225/235 | 145 | 110 | 4-Φ18 | 0.3～16 |
| LD7650F | 50 | 28 | 190 | 235/245 | 160 | 125 | 4-Φ18 | 0.3～16 |
| LD7665F | 65 | 40 | 250 | 310/320 | 185 | 145 | 4-Φ18 | 0.3～16 |
| LD7680F | 80 | 42 | 270 | 325/335 | 200 | 160 | 8-Φ18 | 0.3～16 |
| LD76100F | 100 | 65 | 320 | 420/430 | 220 | 180 | 8-Φ18 | 0.3～16 |
| LD76150F | 150 | 250 | 400 | 490/500 | 285 | 240 | 8-Φ18 | 0.3～16 |
| LD76200F | 200 | 420 | 340 | 295 | 12-Φ22 | 0.3～16 | ||
| LD76250F | 250 | 660 | 405 | 355 | 12-Φ26 | 0.3～16 | ||
optimization suggestions
*The fluid contains impurities, and a filter screen (mesh ≥ 60) should be installed in front of the valve, and the fluid should not have any solidification or crystallization phenomenon.
*The direction of the valve body marking must be consistent with the flow direction of the medium
*The working pressure of coils providing special voltage may vary, please be sure to consult our factory first.
