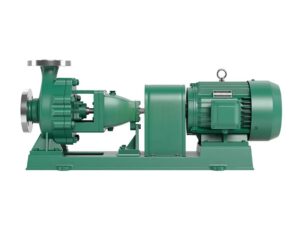

IH type stainless steel chemical centrifugal pump (3)

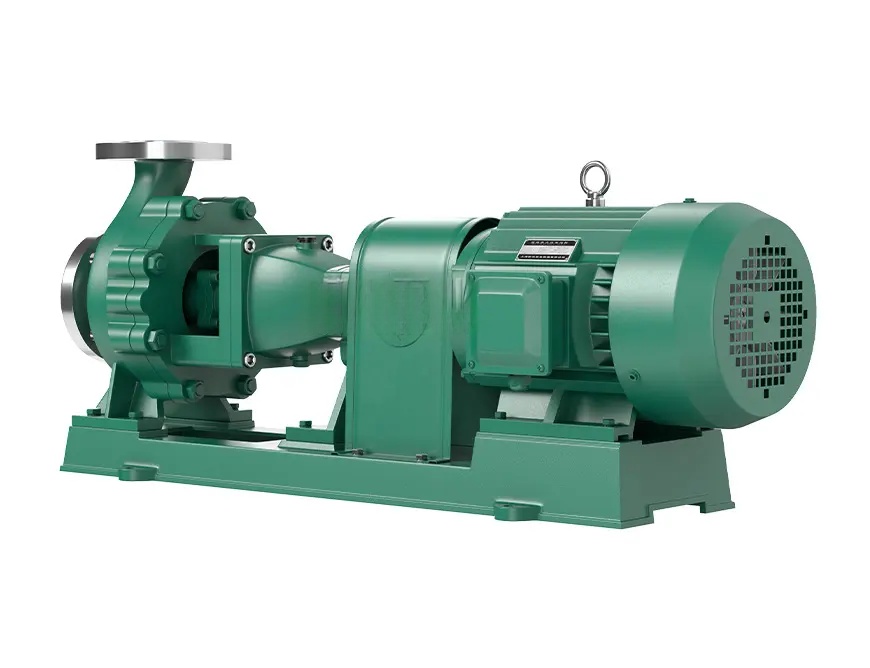

IH type stainless steel chemical centrifugal pump
IH type stainless steel chemical centrifugal pump (3)
IH type stainless steel chemical centrifugal pump

IH type stainless steel chemical centrifugal pump

Get Instant Quotes

IH stainless steel chemical centrifugal pump is used to transport various corrosive or non polluting media similar to water



Product Introduction

  • IH type chemical pump is a single-stage single suction cantilever centrifugal pump, used for conveying liquids that do not contain solid particles, have corrosiveness, and viscosity similar to water
  • Its rated performance points and dimensions are equivalent to international standards, and it is an energy-saving product used to replace the F-type corrosion-resistant pump for upgrading.
  • The pump body material can be selected from stainless steel 304, stainless steel 316L, and duplex steel.



Advantage

There are 29 basic types of IH series pumps, among which 22 dual speed (2900, 1450r/min) have been modified by cutting the impeller diameter of A and B types, reaching 112 specifications. It mainly consists of pump body, blade transmission line, sealing ring, impeller nut, pump cover, sealing components, intermediate bracket, shaft, suspension components, etc. Driven directly by the motor through an extended coupling, it rotates clockwise when viewed from the motor end. The pump cover is fixed on the middle bracket through a stopper, and then clamped in the middle through the connection between the pump body and the stopper of the middle bracket. The pump body is axial suction, radial discharge, foot supported, and can be directly fixed on the base. The suspension components are fixed to the middle bracket through a stopper and supported on the base by the suspension bracket. For the convenience of disassembly, an extended coupling has been designed, which allows for maintenance without disassembling the inlet and outlet connecting pipelines, pump body, and motor. Simply remove the middle connecting piece of the coupling to exit the rotor component for maintenance.



Shaft seal form

The sealing type of the pump adopts mechanical seal, which can be applied by the user according to their needs. At the same time, the sealing cavity size and other structural shaft seal types can be made according to their needs, such as mechanical seals with corrugated pipes and secondary impeller seals.

  • Mechanical seal: There are two types of mechanical seals: single end mechanical seal and double end mechanical seal. A certain pressure of water is introduced into the sealing chamber to flush and rub the two end surfaces, while also providing cooling effect.



scope of application

  • Transport various corrosive or non polluting media similar to water with temperatures ranging from -20 ℃ to 105 ℃.
  • Suitable for industries such as chemical, petroleum, metallurgy, power plants, food, pharmaceuticals, environmental protection, wastewater treatment, and synthetic fibers.



performance parameter





No Model Flow Lift Speed Motor Power Entrance and exit
caliber
(m³/h) (m) (r/min) (kW) (mm)
1 IH25-20-125 3.6 20 2900 2.2 25×20
2 IH25-20-160 3.6 32 2900 3
3 IH25-20-200A 3.6 40 2900 4
4 IH25-20-200 3.6 50 2900 5.5
5 IH25-20-250A 3.6 70 2900 7.5
6 IH25-20-250 3.6 80 2900 11
7 IH32-25-125 5 20 2900 2.2 32×25
8 IH32-25-160 5 32 2900 3 ( 或20)
9 IH32-25-200A 5 40 2900 4
10 IH32-25-200 5 50 2900 5.5
11 IH32-25-250A 5 70 2900 7.5
12 IH32-25-250 5 80 2900 11
13 IH40-25-125 7.2 20 2900 2.2 40×25
14 IH40-25-160 7.2 32 2900 3 (或32)
15 IH40-25-200A 7.2 40 2900 4
16 IH40-25-200 7.2 50 2900 5.5
17 IH40-25-250A 7.2 70 2900 7.5
18 IH40-25-250 7.2 80 2900 11
19 IH50-32-125A 5.7 4.1 1450 0.55 50×32
20 IH50-32-125 6.3 5 1450 0.55
21 IH50-32-125A 11.3 16.4 2900 1.5
22 IH50-32-125 12.5 20 2900 2.2
23 IH50-32-125 12.5 20 2900 3
24 IH50-32-160A 5.7 6.6 1450 0.55
25 IH50-32-160 6.3 8 1450 0.75
26 IH50-32-160A 11.3 26.4 2900 2.2
27 IH50-32-160 12.5 32 2900 3
28 IH50-32-160 12.5 32 2900 4
29 IH50-32-200A 5.7 10.3 1450 0.75
30 IH50-32-200 6.3 12.5 1450 1.1
31 IH50-32-200A 11.3 41 2900 4
32 IH50-32-200 12.5 50 2900 5.5
33 IH50-32-200 12.5 50 2900 7.5
34 IH50-32-250B 5.7 15.5 1450 1.5
35 IH50-32-250A 5.9 17.5 1450 1.5
36 IH50-32-250 6.3 20 1450 2.2
37 IH50-32-250B 11 62 2900 7.5
38 IH50-32-250A 11.7 70 2900 7.5
39 IH50-32-250 12.5 80 2900 11
40 IH65-50-125A 11.3 4.1 1450 0.55 65×50
41 IH65-50-125 12.5 5 1450 0.55
42 IH65-50-125A 22.7 16.5 2900 2.2
43 IH65-50-125 25 20 2900 3
44 IH65-50-125 25 20 2900 4
45 IH65-50-160A 11.3 6.6 1450 0.55
46 IH65-50-160 12.5 8 1450 0.75
47 IH65-50-160A 22.7 26.5 2900 4
48 IH65-50-160 25 32 2900 5.5
49 IH65-50-160 25 32 2900 7.5
50 IH65-40-200A 11.3 10.3 1450 1.1 65×40
51 IH65-40-200 12.5 12.5 1450 1.5
52 IH65-40-200A 22.7 41 2900 7.5
53 IH65-40-200 25 50 2900 11
54 IH65-40-250B 11 15.5 1450 1.5
55 IH65-40-250A 11.7 17.5 1450 2.2
56 IH65-40-250 12.5 20 1450 2.2
57 IH65-40-250B 22 62 2900 11
58 IH65-40-250A 23.4 75 2900 11
59 IH65-40-250 25 80 2900 15
60 IH65-40-250 25 80 2900 18.5
61 IH65-40-315B 11 24.1 1450 3
62 IH65-40-315A 11.3 28 1450 3
63 IH65-40-315 12.5 32 1450 4
64 IH65-40-315B 22 96.5 2900 18.5
65 IH65-40-315A 23.4 109.5 2900 22
66 IH65-40-315 25 125 2900 30
67 IH65-40-315 25 125 2900 37
68 IH80-65-125A 22.6 4.1 2900 0.55 80×65
69 IH80-65-125 25 5 2900 0.75
70 IH80-65-125A 43.5 16.5 2900 4
71 IH80-65-125 50 20 2900 5.5
72 IH80-65-125 50 20 2900 7.5
73 IH80-65-160A 22.6 6.6 1450 0.75
74 IH80-65-160 25 8 1450 1.1
75 IH80-65-160A 45.4 26.4 2900 7.5
76 IH80-65-160 50 32 2900 11
77 IH80-50-200 50 50 2900 15 80×50
78 IH80-50-200 50 50 2900 18.5
79 IH80-50-200A 45.3 41 2900 11
80 IH80-50-200 25 12.5 1450 2.2
81 IH80-50-200A 22.7 10.3 1450 1.5
82 IH80-50-250 50 80 2900 22
83 IH80-50-250 50 80 2900 30
84 IH80-50-250A 47 70.5 2900 18.5
85 IH80-50-250B 44 62 2900 15
86 IH80-50-250 25 20 1450 3
87 IH80-50-250A 23.4 17.6 1450 3
88 IH80-50-250B 22 15.5 1450 2.2
89 IH80-50-315 50 125 2900 37
90 IH80-50-315A 47 110 2900 30
91 IH80-50-315R 44 97 2900 30
92 IH80-50-315 25 32 1450 5.5
93 IH80-50-315A 23.5 28.3 1450 5.5
94 IH80-50-315B 22 24.2 1450 5.5
95 IH100-80-125 100 20 2900 11 100×80
96 IH100-80-125A 92 17 2900 7.5
97 IH100-80-160 100 32 2900 18.5
98 IH100-80-160 100 32 2900 15
99 IH100-80-160A 91 26.5 2900 11
100 IH100-80-160 50 8 1450 2.2
101 IH100-80-160A 45.5 6.6 1450 1.5
102 IH100-65-200 100 50 2900 30 100×65
103 IH100-65-200 100 50 2900 22
104 IH100-65-200A 91 41.5 2900 18.5
105 IH100-65-200 50 12.5 1450 3
106 IH100-65-200A 45.5 10.3 1450 2.2
107 IH100-65-250 100 80 2900 37
108 IH100-65-250A 93.5 70 2900 30
109 IH100-65-250B 88 62 2900 30
110 IH100-65-250 50 20 1450 5.5
111 IH100-65-250A 45.5 17.4 1450 4
112 IH100-65-250B 44 15.5 1450 4
113 IH100-65-315 100 125 2900 75
114 IH100-65-315A 93.5 109 2900 55
115 IH100-65-315B 88 97 2900 45
116 IH100-65-315 50 32 1450 11
117 IH100-65-315 50 32 1450 7.5
118 IH100-65-315A 46.5 28 1450 7.5
119 IH125-80-160 150 28 2900 30 125×80
120 IH125-80-160 150 28 2900 22
121 IH125-80-160A 140 24 2900 18.5
122 IH125-100-200 200 50 2900 45 125×100
123 IH125-100-200 200 50 2900 55
124 IH125-100-200A 182 41.5 2900 37
125 IH125-100-200 100 12.5 1450 5.5
126 IH125-100-200A 91 10.3 1450 4
137 IH125-100-250 200 80 2900 75
128 IH125-100-250A 186.5 69.5 2900 55
129 IH125-100-250B 175.5 61.5 2900 45
130 IH125-100-250 100 20 1450 11
131 IH125-100-250A 93 17.4 1450 7.5
132 IH125-100-315 200 125 2900 110
133 IH125-100-315A 180 109 2900 90
134 IH125-100-315B 175 96 2900 75
135 IH125-100-315 100 32 1450 15
136 IH125-100-315A 90 27.3 1450 11
137 IH125-100-315B 87.5 24 1450 11
138 IH125-100-400 100 50 1450 30
139 IH125-100-400A 91 41 1450 22
140 IH150-125-250 200 20 1450 18.5 150×125
141 IH150-125-250 200 20 1450 22
142 IH150-125-315 200 32 1450 30
143 IH150-125-315 200 32 1450 37
144 IH150-125-315A 182 25.5 1450 22
145 IH150-125-400 200 50 1450 45
146 IH150-125-400 200 50 1450 55
147 IH150-125-400A 182 41 1450 37
148 IH200-150-250 400 20 1450 37 200×150
149 IH200-150-250 400 20 1450 45
150 IH200-150-250A 363 16.2 1450 30
151 IH200-150-315 400 32 1450 45
152 IH200-150-315 400 32 1450 55
153 IH200-150-315A 363 25.5 1450 37
154 IH200-150-400 400 50 1450 75
155 IH200-150-400 400 50 1450 90
