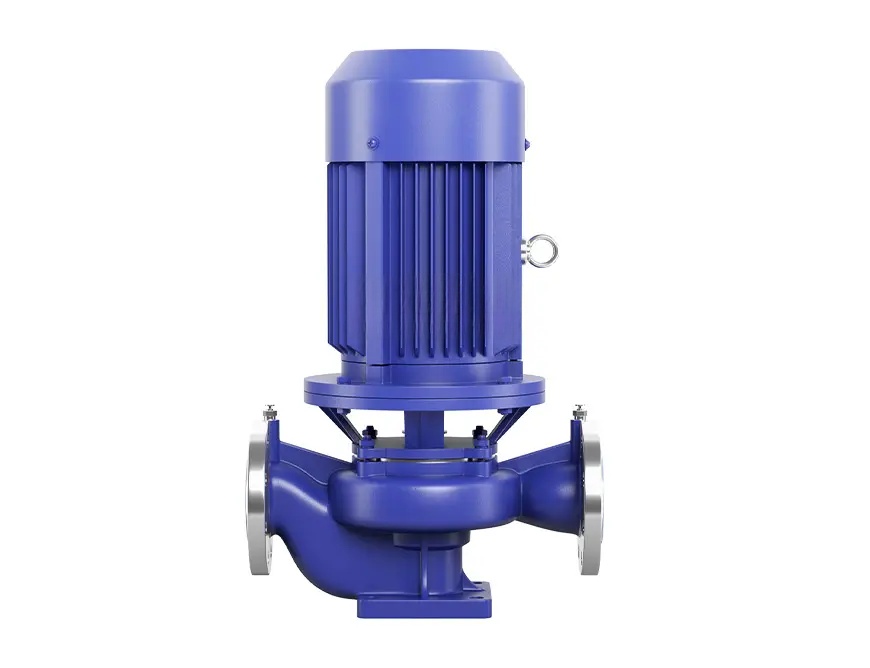

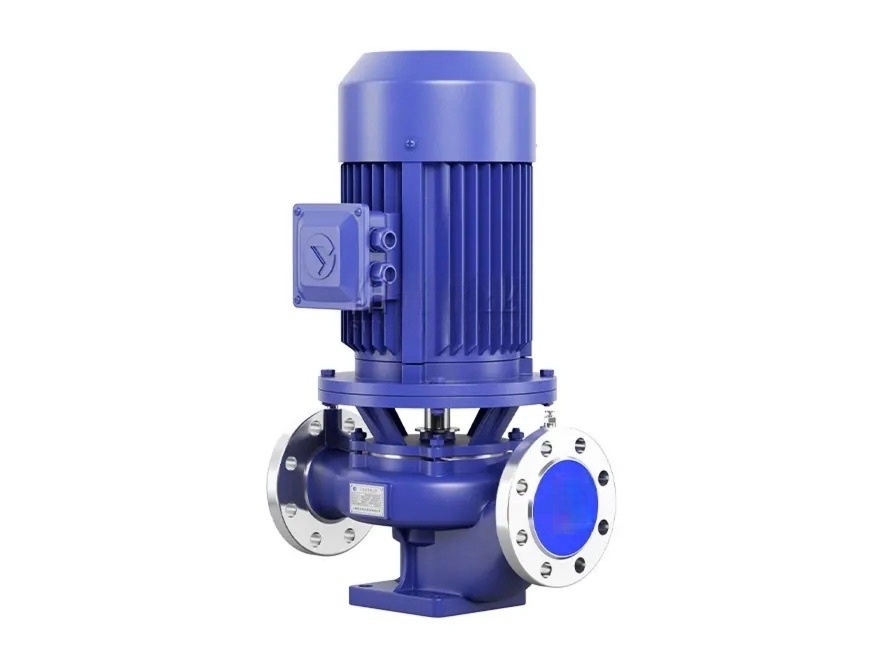

ISGIHG type vertical pipeline centrifugal pump

The pump is a vertical structure made of cast iron material, with the same inlet and outlet diameters, occupying a small area

Product Introduction

• The ISG/IHG vertical pipeline centrifugal pump adopts the performance parameters of the IS type centrifugal pump and is ingeniously designed on the basis of a general vertical pump.
• According to different usage temperatures, media, etc., in ISDerived from the G-type, suitable for hot water, high temperature, corrosive chemical pumps, and oil pumps.
• Having high efficiencyAdvantages such as energy saving, low noise, and reliable performance.

Advantage

• The pump is a vertical structure with the same inlet and outlet diameters and located on the same centerline, which can be installed in the pipeline like a valve.
• The impeller is directly installed on the extended shaft of the motor, with a short axial dimension, compact and beautiful structure, small footprint, low construction investment, and can be used outdoors with a protective cover.
• The reasonable configuration of pump and motor bearings can effectively balance the radial and axial loads generated by pump operation, thereby ensuring smooth pump operation, low vibration, and low noise.
• The shaft seal adopts mechanical seal or a combination of mechanical seals, using imported titanium alloy sealing rings, medium-sized high-temperature resistant mechanical seals, and hard alloy materials. The wear-resistant seal can effectively extend the service life.
• Easy installation and maintenance, no need to disassemble the pipeline system, just remove the pump coupling nut to extract all rotor components.
• Vertical and horizontal installation of pumps can be adopted according to the requirements of pipeline layout, and series or parallel operation of pumps can be adopted according to the needs of flow rate and head.

scope of application

• ISG type vertical pipeline centrifugal pump is used for conveying clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, cold and warm water circulation boosting, and equipment matching. The operating temperature is T<80 ℃.
• IHG type vertical pipeline chemical pump is used for conveying liquids that do not contain solid particles, are corrosive, and have a viscosity similar to water. It is suitable for industries such as petroleum, chemical, power, papermaking, food and pharmaceuticals, and synthetic fibers, with an operating temperature range of -20 ℃ to+120 ℃.

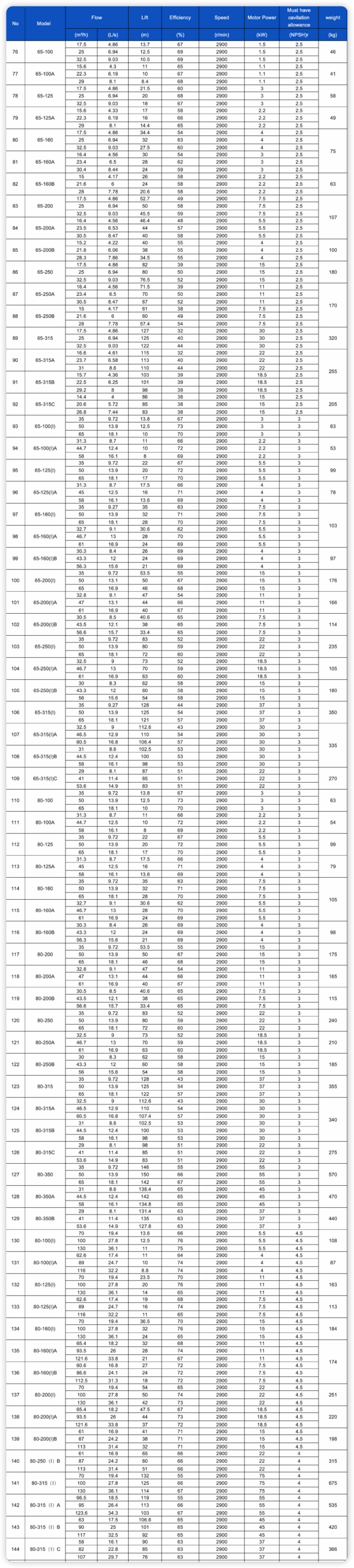

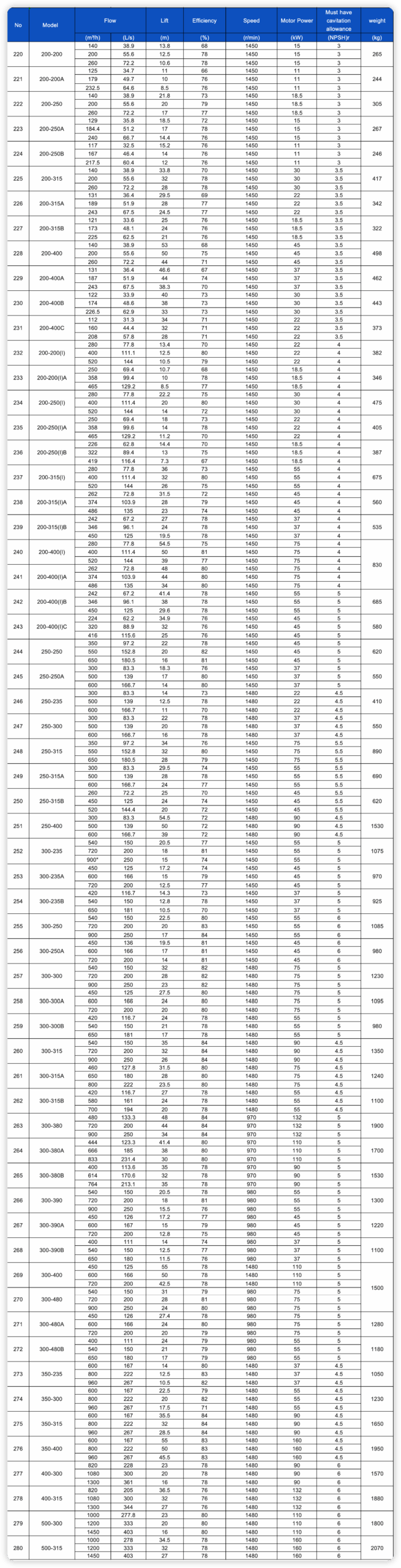

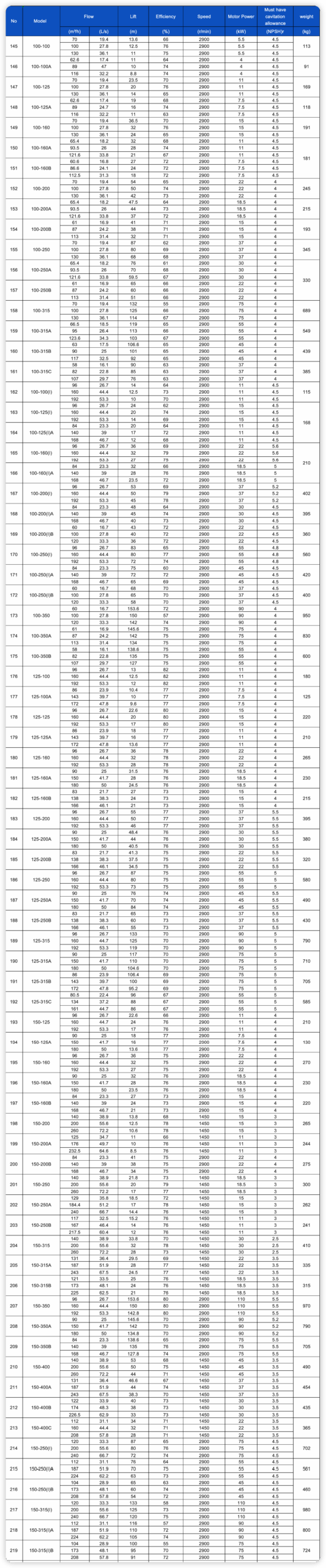

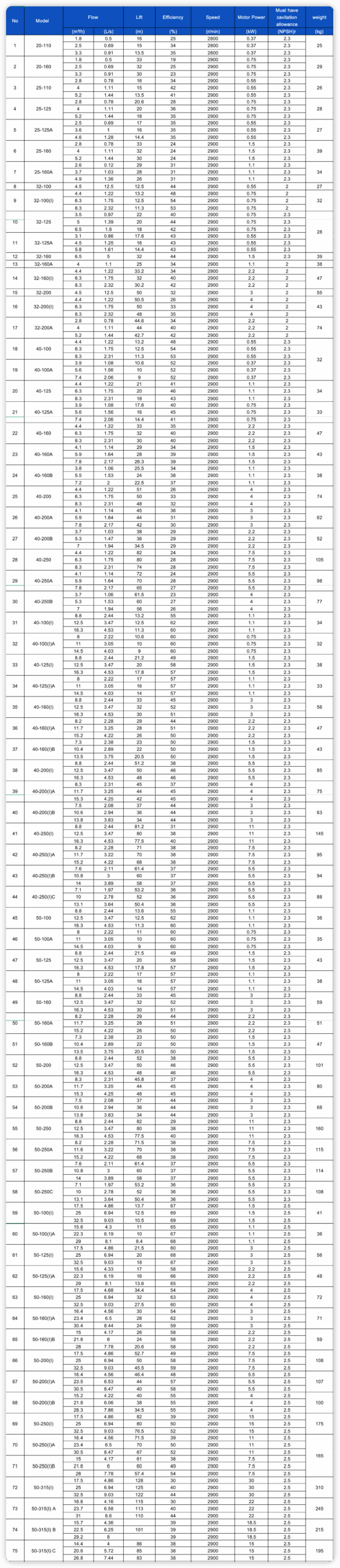

performance parameter
