KCB types gear oil pump
KCB types gear oil pump

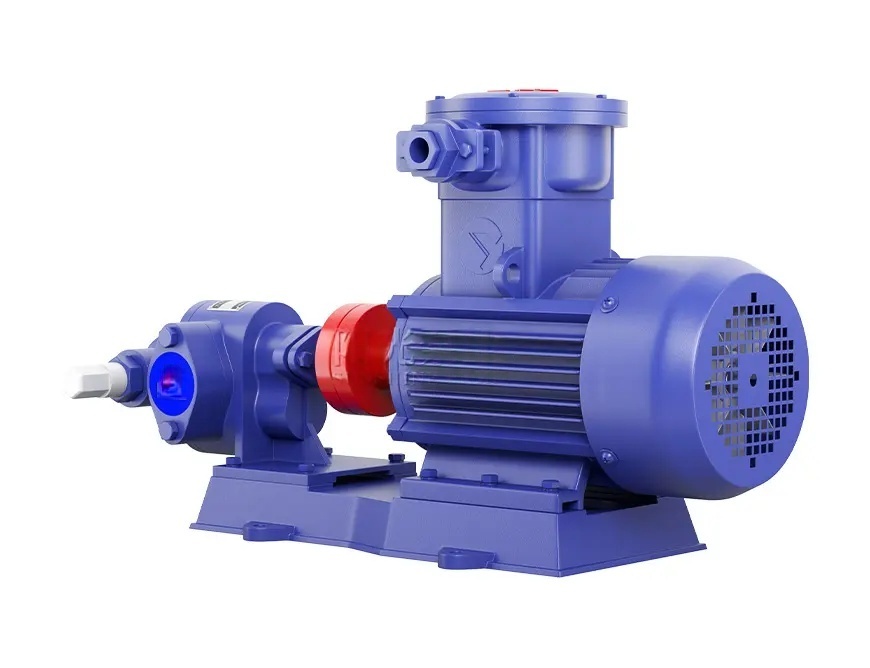

KCB type gear oil pump

KCB gear pumps are suitable for transporting various oils, such as heavy oil, diesel, and lubricating oil. Copper gears can be used to transport liquids with low flash points, such as gas oil, benzene, etc.

  • Stainless steel gear pumps can transport beverages and corrosive liquids, and are not suitable for those containing hard particles or fibers. They are suitable for viscosities ranging from 5×10 ⁻⁶ to 1.5×10 ⁻³ m ²/s (5-1500cSt). The temperature should not exceed 300 ℃.
  • If you need to transport high-temperature liquids, please use a high-temperature resistant gear oil pump for single-stage single suction oil pumps, which can transport liquids below 300 ℃.
  • The pump itself is equipped with a safety valve, which provides safety protection in case of overload. The shaft seal has three types: skeleton oil seal, mechanical seal, and packing seal.

KCB type gear oil pump

Simple and compact structure, capable of transporting various oils, with good self-priming properties

Product Introduction

  • KCB gear pumps are suitable for transporting various oils, such as heavy oil, diesel, and lubricating oil. Copper gears can be used to transport liquids with low flash points, such as gas oil, benzene, etc.
  • Stainless steel gear pumps can transport beverages and corrosive liquids, and are not suitable for those containing hard particles or fibers. They are suitable for viscosities ranging from 5×10 ⁻⁶ to 1.5×10 ⁻³ m ²/s (5-1500cSt). The temperature should not exceed 300 ℃.
  • If you need to transport high-temperature liquids, please use a high-temperature resistant gear oil pump for single-stage single suction oil pumps, which can transport liquids below 300 ℃.
  • The pump itself is equipped with a safety valve, which provides safety protection in case of overload. The shaft seal has three types: skeleton oil seal, mechanical seal, and packing seal.



Advantage

  • Simple and compact structure, easy to use and maintain. It has good self-priming properties, so there is no need to inject liquid before each pump start.
  • Lubrication is automatically achieved through the conveyed liquid, so there is no need to add additional lubricating fluid during daily work.
  • The use of elastic couplings to transmit power can compensate for minor deviations caused during installation. When the oil pump is inevitably subjected to hydraulic shock during operation, it can provide a good buffering effect.



performance parameter





Model Caliber Flow                Specified pressure Motor Power Suction distance Interface
specifications or
Oil seal sealing
(mm) (m³/h) (r/min) ( Mpa) (kW) (m) Matching flange
specifications
Model
KCB-18.3 3/4″ 1.1 18.3 1.45 1.5-4 5 Thread 22*35*10
KCB-33.3 3/4″ 2 33.3 1.45 2.2-4 5
KCB-55 1″ 3.3 55 0.33 1.5-4 5
KCB-83.3 1.5″ 5 83.3 0.33 2.2-4 5
KCB-135 2″ 8 135 0.33 2.2-6 5 DN40/PN10 or
DN50/PN6 national
standard flange
30*50*10
KCB-200 2″ 12 200 0.33 4-4 5
KCB-200 2″ 12 200 0.5 5.5-4 5
KCB-300 3″ 18 300 0.36 5.5-6 5 DN65/PN10 ship
standard flange
35*55*10
KCB-483.3 3″ 29 483.3 0.36 7.5-4 5
11-4 5
KCB-633 4″ 38 633 0.28 11-6 5 DN80/PN16 national
standard flange
40*60*10
KCB-960 4″ 58 960 0.28 18.5-4 5
22-4





keyword:oil pump、High temperature resistant gear oil pump、Transporting gasoline and diesel liquid pumps
