Zero pressure startup water inlet 2W solenoid valve LD51
Valve body material: brass stainless steel
Nominal diameter: DN2.5-DN50
Pressure range: 0-10 bar
Fluid temperature: -5 ℃ to+80/130 ℃
Function options: normally open, explosion-proof, with manual control
Product Features:
Suitable for controlling media such as liquids, gases, and light oils (≤ 20CST), it adopts direct acting and two-stage direct acting structures, zero pressure opening, large flow rate, and high reliability. The valve body material is brass (hot forged) and stainless steel SS304 (precision cast). There are multiple models of this product series, which can be selected according to your control needs.
Technical specifications:
Suitable for controlling media such as liquids, gases, and light oils (≤ 20CST), using direct acting and two-stage direct acting structures, zero pressure opening, high flow rate, and high reliability. The valve body material is brass (hot forged) and stainless steel SS304 (precision cast). There are multiple models of this product series, which can be selected according to your control needs. Medium temperature: -5 ℃~+80 ℃, -5 ℃~130 ℃;
Work pressure: 0-10 bar;
Operation mode: direct acting, two-stage direct acting (DN25-DN50);
Job type: normally closed, normally open;
Valve body material: brass SS304, SS316;
Sealing material: Nitrile rubber (conventional NBR)
| Function Options | Electrical parameters | |||
| code name | Function Options | Functional Description | Coil parameters：AC220V 380V 110V 24V DC24V 12V | |
| No | Normally closed type | The valve opens when powered on and closes when powered off. | Encapsulated coil: IP65 F-class standard junction box | |
| K | Normally Open | The valve closes when powered on and opens when powered off. | Iron shell coil: IP54 F grade, suitable for coils of other voltages. | |
| E | Explosion-proof | Explosion proof grade: ExDII BT4 | Plastic encapsulated coils: | DN10～25mm AC 26VA DC 18W |
| T | Timer: |
You can set the on-off interval time. | DN32～50mm AC 40VA DC 30W | |
| N | Plastic encapsulated coils: | IP65 waterproof |
Iron shell coil: | DN10～25mm AC 26VA DC 18W |
| J | Energy saving module: | Reduce coil temperature rise and power consumption | DN32～50mm AC 40VA DC 30W | |
optional
*Sealing material: VITON fluororubber (-10 ℃~130 ℃), EPDM ethylene propylene rubber (-10 ℃~110 ℃)
*Junction box with LED indicator light * iron shell coil (standard type), plastic shell coil * threaded interface: NPT thread, RC thread
*Timed controller

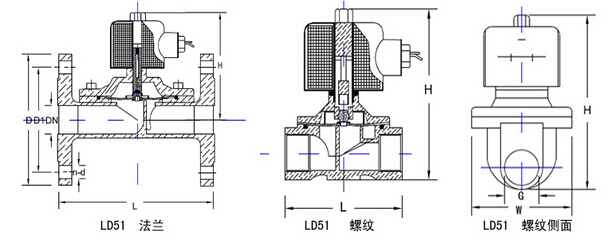

| Specification parameter table (threaded connection) | |||||||
| Model | Interface G | Diameter mm | Cv value | L | H/normally open/explosion-proof type |
Work pressure (bar) | |
| Normally closed type | Normally open type |
||||||
| LD512.5 | 1/8 | 2.5 | 0.25 | 40.5 | 75/–/– | 0～10 | 0～6 |
| LD512.5 | 1/4 | 2.5 | 0.25 | 40.5 | 75/–/– | 0～10 | 0～6 |
| LD5104 | 1/4 | 4 | 0.6 | 54 | 75/–/– | 0～10 | 0～6 |
| LD5104 | 3/8 | 4 | 0.6 | 54 | 90/–/– | 0～10 | 0～6 |
| LD5110 | 3/8 | 10 | 4.8 | 68 | 117/–/– | 0-10 | 0～6 |
| LD5115 | 1/2 | 15 | 4.8 | 68 | 117/135/125 | 0～10 | 0～6 |
| LD5120 | 3/4 | 20 | 7.6 | 73 | 123/142/135 | 0～10 | 0～6 |
| LD5125 | 1 | 25 | 12 | 99 | 135/150/150 | 0～10 | 0～6 |
| LD5132 | 11/4 | 32 | 24 | 110 | 154/190/190 | 0～10 | 0～6 |
| LD5140 | 11/2 | 40 | 29 | 120 | 162/190/190 | 0～10 | 0～6 |
| LD5150 | 2 | 50 | 48 | 154 | 185/215/202 | 0-10 | 0～6 |
| Specification parameter table (flange connection): | ||||||||||
| Model | Diameter mm | Cv value | L | H/normally open/explosion-proof type | D | D1 | b | n-d | Work pressure (bar) | |
| Normally closed type | Normally open type | |||||||||
| LD5115F | 15 | 4.8 | 106 | 141 | — | — | — | — | 0-10 | 0-6 |
| LD5120F | 20 | 7.6 | 106 | 143 | — | — | — | — | 0-10 | 0-6 |
| LD5125F | 25 | 12 | 135 | 166/180/180 | 110 | 85 | 14 | 4-Φ14 | 0-10 | 0-6 |
| LD5132F | 32 | 24 | 142 | 204/235/285 | 135 | 100 | 15 | 4-Φ18 | 0-10 | 0-6 |
| LD5140F | 40 | 29 | 149 | 217/240/285 | 145 | 110 | 15 | 4-Φ18 | 0-10 | 0-6 |
| LD5150F | 50 | 48 | 184 | 227/255/300 | 160 | 125 | 16 | 4-Φ18 | 0-10 | 0-6 |
optimization suggestions
*When designing control schemes, try to choose normally closed (NC) type as much as possible. If the opening time of the solenoid valve is long and the closing time is short, choose the normally open (NO) type.
*If the fluid contains impurities, a filter screen (≥ 60 mesh) should be installed in front of the valve.
*The direction indicated on the valve body must be consistent with the direction of medium flow.
