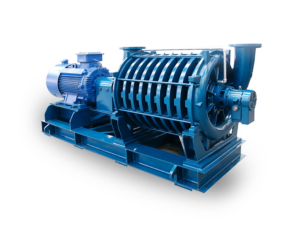

MC series multi-stage centrifugal blower

Product Overview
The MC series cast multi-stage centrifugal blower is an efficient blower product developed by our company with the introduction of American technology, which has advanced levels in the world today. This series of products adopts proprietary or patented technology, and the low noise, low vibration, and high efficiency of the blower have obvious advantages over domestic products.

Product Features
1. The fan inlet and exhaust casing, as well as the reflux device, are fully matched with the impeller through parameter optimization, resulting in a streamlined design with less flow loss.
2. Adopting a three-dimensional flow meridian surface, combined impeller, and composite profile technology, the impeller has high aerodynamic efficiency.
3. The impeller inlet does not have a guide ring, effectively improving the flowability of the impeller inlet.
4. Wing shaped reflux blade design technology, with low losses and higher static pressure energy conversion.
5. Apply flow analysis technology to optimize the performance of the blower, with a variable efficiency of over 78%.
6. The same blower can meet two speeds of 50Hz and 60Hz, with a wide adjustment range and better performance.
After strict dynamic balancing of the rotor, the fan has low vibration, high reliability, and overall low noise.
8. The shared base can be installed with shock-absorbing pads without the need for anchor bolts, saving time and effort, and reducing the cost of foundation production.
9. The fan structure is advanced and reasonable, with few vulnerable parts, and easy installation, operation, and maintenance.

Technical Indicators

Flow：20-1500m³/min

Boost：19.6-137.2kPa

Vacuum degree： -20~-50kPa

Main purpose
Water treatment, wastewater treatment, biogas recovery, vacuum dust removal, air knife drying, flotation and beneficiation, galvanizing process and electroplating, liquid and bath oxygenation, process gas transportation, papermaking and printing industry, air combustion (desulfurization, carbon black, blast furnace smelting, etc.).
