Q41F series national standard flange connected ball valve
| Technical Parameters | ||
| Nominal pressure PN1.6, 2.5, 4.0, 6.4 MPa | Valve body materials WCB, CF8, CF8M, Ti, Ni | |
| Test pressure capacity PT2.4,3.8,6.0,9.6MPa | Applicable Medium | Q41F – (16-64) C Water, Oil, Gas |
| Low pressure sealing test capacity 0.6MPa | Q41F – (16-64) P nitric acid | |
| Applicable temperature -40 ℃~180 ℃ | Q41F – (16-64) R Acetoic Acid | |
| Component Structure Material Table | ||||
| No | Part Name | Q41F-(16-64)C | Q41F-(16-64)P | Q41F-(16-64)R |
| 1 | valve body | WCB | ZG1Cr18Ni9Ti(CF8) | ZG1Cr18Ni12Mo2Ti(CF8M) |
| 2 | valve cover | WCB | ZG1Cr18Ni9Ti(CF8) | ZG1Cr18Ni12Mo2Ti(CF8M) |
| 3 | sphere | 1Cr18Ni9Ti(304) | 1Cr18Ni9Ti(304) | 1Cr18Ni12Mo2Ti(316) |
| 4 | valve stem | 1Cr18Ni9Ti(304) | 1Cr18Ni9Ti(304) | 1Cr18Ni12Mo2Ti(316) |
| 5 | Sealing ring | Polytetrafluoroethylene (PTFE) | ||
| 6 | filler | Polytetrafluoroethylene (PTFE) | ||

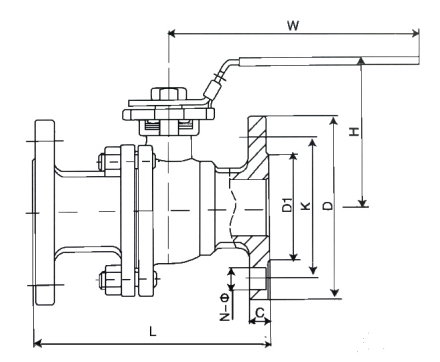

| Main external connection dimensions (PN16) | |||||||||
| Model | DN | L | H | W | D | K | D1 | C | N-Φ |
| Q41F-15 | 15 | 130 | 76 | 130 | 95 | 65 | 45 | 14 | 4-14 |
| Q41F-20 | 20 | 140/130 | 83 | 130 | 105 | 75 | 55 | 14 | 4-14 |
| Q41F-25 | 25 | 150/140 | 86 | 130 | 115 | 85 | 65 | 14 | 4-14 |
| Q41F-32 | 32 | 165 | 94 | 160 | 135 | 100 | 78 | 16 | 4-18 |
| Q41F-40 | 40 | 180/165 | 108 | 200 | 145 | 110 | 85 | 16 | 4-18 |
| Q41F-50 | 50 | 200/203 | 114 | 200 | 160 | 125 | 100 | 16 | 4-18 |
| Q41F-65 | 65 | 220/222 | 138 | 240 | 180 | 145 | 120 | 18 | 4-18 |
| Q41F-80 | 80 | 250/241 | 154 | 290 | 195 | 160 | 135 | 20 | 8-18 |
| Q41F-100 | 100 | 280 | 175 | 330 | 215 | 180 | 155 | 20 | 8-18 |
| Q41F-125 | 125 | 320/356 | 210 | 400 | 245 | 210 | 185 | 22 | 8-18 |
| Q41F-150 | 150 | 360/394 | 232 | 520 | 280 | 240 | 210 | 24 | 8-23 |
| Q41F-200 | 200 | 457 | 335 | 295 | 265 | 26 | 12-23 | ||
| Q41F-250 | 250 | 533 | 405 | 355 | 320 | 30 | 12-25 | ||
| Q41F-300 | 300 | 610 | 460 | 410 | 375 | 30 | 12-25 | ||
