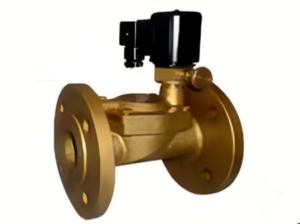

LD52 series pilot diaphragm solenoid valve
| Function Options | Technical Specifications | |||
| Suitable for controlling media such as liquids, gases, and light oils (≤ 20CST), the LD52F series adopts a pilot structure, a variety of sturdy molded diaphragms (main valve seals), and superior magnetic materials jointly produced by China and the United States. Its performance is stable and highly reliable. The valve body material is brass (hot forging), stainless steel SS304, SS316 (precision casting), and the LD52F series has multiple forms, which you can choose according to your control needs. | Medium temperature: -5 ℃ to+80 ℃ | |||
| Work pressure: 0.3-12 bar | ||||
| Operation mode: pilot operated | ||||
| Working type: normally closed, normally open | ||||
| Valve body material: brass, cast iron | ||||
| Sealing material: Nitrile rubber (NBR conventional type) | ||||
| Function Options | Electrical parameters | |||
| Coil parameters: AC220V, 380V, 110V, 24V, DC24V, 12V | ||||
| code name | Function Options | Functional Description | Iron shell coil: IP54 Class F | |
| NO | Normally closed type | Power on valve open, power off valve closed | Plastic sealed coil: | DN10～20mm AC 14VA DC 14W |
| K | Normally Open | Power on valve closed, power off valve open | DN25～100mm AC 18VA DC 20W | |
| E | Explosion-proof type | Explosion proof grade: ExdII BT4 | DN125～200mm AC 20VA DC 28W | |
| T | Timer | You can set the gap time between opening and closing | Iron shell coil: | DN10～20mm AC 14VA DC 14W |
| J | Energy saving module | Reduce coil temperature rise and power consumption | DN25～100mm AC 18VA DC 20W | |
| S | Manual | manual switch | DN125～200mm AC 20VA DC 28W | |
optional
*Threaded interface: NPT thread, RC thread * with manual function (S) * Working type: normally closed, normally open
*Equipped with a timing controller and LED indicator light junction box, it can provide products with working pressure ranging from 0.3 to 16 bar
| Specification parameter table (threaded connection) | |||||||
| Model | Interface G | Diameter mm | Cv value | L | H | Work pressure （bar） | |
| Normally closed | Normally Open | ||||||
| LD5210 | 3/8 | 10 | 3.8 | 80 | 105 | 0.3～12 | 0.3～8 |
| LD5215 | 1/2 | 15 | 3.8 | 80 | 105 | 0.3～12 | 0.3～8 |
| LD5220 | 3/4 | 20 | 7 | 87 | 114 | 0.3～2 | 0.3～8 |
| LD5225 | 1 | 25 | 11 | 107 | 122 | 0.3～12 | 0.3～8 |
| LD5232 | 11/4 | 32 | 14 | 129 | 131 | 0.3～12 | 0.3～8 |
| LD5240 | 11/2 | 40 | 24 | 145 | 142 | 0.3～12 | 0.3～8 |
| LD5250 | 2 | 50 | 35 | 177 | 155 | 0.3～12 | 0.3～8 |

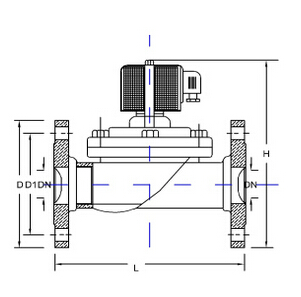

| Specification parameter table (flange connection) | ||||||||||
| Model | Diameter mm | Cv value | L | H | D | D1 | b | n-d | Work pressure（bar） | |
| Normally closed | Normally Open | |||||||||
| LD5240F | 40 | 30 | 169 | 196 | 150 | 110 | 3 | 4-Φ18 | 0.3～12 | 0.3～8 |
| LD5250F | 50 | 48 | 200 | 200 | 165 | 125 | 3 | 4-Φ18 | 0.3～12 | 0.3～8 |
| LD5265F | 65 | 53 | 260 | 280 | 185 | 145 | 3 | 4-Φ18 | 0.3～12 | 0.3～8 |
| LD5280F | 80 | 82 | 280 | 287 | 200 | 160 | 3 | 8-Φ18 | 0.3～12 | 0.3～8 |
| LD52100F | 100 | 128 | 352 | 330 | 220 | 180 | 3 | 8-Φ18 | 0.3～12 | 0.3～8 |
| LD52125F | 125 | 222 | 430 | 437 | 250 | 210 | 3 | 8-Φ18 | 0.3～12 | 0.3～8 |
| LD52150F | 150 | 292 | 454 | 460 | 285 | 240 | 3 | 8-Φ22 | 0.3～12 | 0.3～8 |
| LD52200F | 200 | 513 | 573 | 547 | 340 | 295 | 3 | 12-Φ22 | 0.3～12 | 0.3～8 |
| LD52250F | 250 | 680 | 730 | 580 | 405 | 350 | 12-Φ22 | 0.3～12 | 0.3～8 | |
| LD52300F | 300 | 950 | 850 | 620 | 460 | 400 | 12-Φ22 | 0.3～12 | 0.3～8 | |
optimization suggestions
*When designing control schemes, try to choose normally closed (NC) type. If the solenoid valve has a longer opening time and a shorter closing time, choose normally open (NO) type.
*The fluid contains impurities, and a filter screen (with a mesh size of ≥ 60) should be installed in front of the valve.
*The direction of the valve body marking must be consistent with the flow direction of the medium
*The working pressure of coils providing special voltage may vary, please be sure to consult our factory first.
