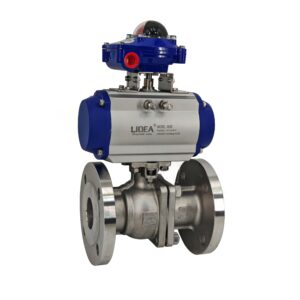

LDBAAP series pneumatic flange ball valve GB
| Technical Specifications | Valve body parameters | |
| Cylinder form double acting, single acting | Nominal pressure PN16, PN25, PN40, PN64 | |
| Environmental temperature -20 ℃~+80 ℃ | Connection method: Flange type GB (special selection JB, ANSI, JIS) | |
| Gas source pressure double acting 4-8 bar, single acting 5-8 bar | Valve body materials WCB, SS304, SS316, SS316L | |
| Core material SS, SS304, SS316, SS316L | ||
| Function Options | Sealing materials PTFE, PPL (special selection: graphite, hard seal) | |
| Explosion proof type Explosion proof grade: dIIBT4 | Operating Temperature | C3：-30℃～150℃ |
| Signal feedback X1 mechanical passive signal, X2 active signal | C6：-30℃～250℃ | |
| The manual function pneumatic valve can be operated with a handwheel, manual valve opening, and valve closing functions | C7：-30℃～350℃ | |
| Adjustable input 4-20mA signal to achieve ball valve adjustment function | C8：-40℃～450℃ | |
| standard specification | Attachment Options | |
| Design standard GB/12237 | Feedback switch, also known as limit switch, remote feedback switch signal | |
| Structural length GB/12221 | Electromagnetic valve with double acting option, two position five way, and single acting option, two position three way | |
| Flange connection GB/9113, JB/T79 | Triple components can stabilize the gas source, filter, and add lubricating oil to the cylinder | |
| Testing and Experimentation GB/T13927, JB/T9092 | The handwheel mechanism can be rotated to manually open and close valves | |
| Please refer to the selected pneumatic actuator information for cylinder parameters | Electrical locator inputs 4-20mA signal to achieve ball valve adjustment function | |

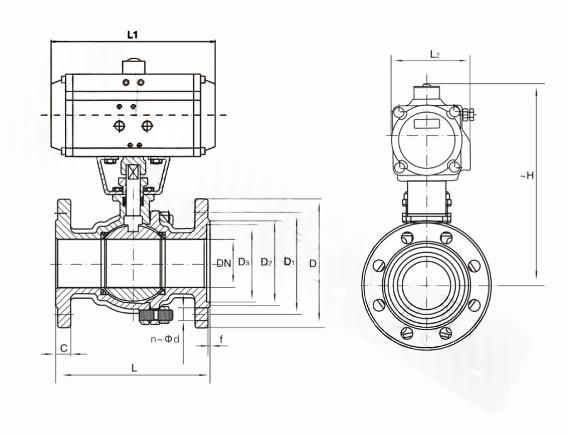

| Main external connection dimensions Q641F (N, P, H, Y) – PN16 (1.6MPA) | |||||||||||||
| Model | DN | in | L | L1 | L2 | ～H | D | D1 | D2 | C | F | n-Φd | Actuator model |
| LDBAAP15 | 15 | 1/2 | 130 | 141/159 | 71/83 | 204/235 | 95 | 65 | 46 | 14 | 2 | 4-Φ14 | LD052P/LD063SK |
| LDBAAP20 | 20 | 3/4 | 140 | 141/159 | 71/83 | 209/240 | 105 | 75 | 56 | 16 | 2 | 4-Φ14 | LD052P/LD063SK |
| LDBAAP25 | 25 | 1 | 150 | 159/211 | 83/95 | 214/256 | 115 | 85 | 65 | 16 | 2 | 4-Φ14 | LD063P/LD083SK |
| LDBAAP32 | 32 | 11/4 | 165 | 159/248 | 83/107 | 257/277 | 140 | 100 | 76 | 18 | 2 | 4-Φ18 | LD063P/LD105SK |
| LDBAAP40 | 40 | 11/2 | 180 | 211/248 | 95/107 | 274/292 | 150 | 110 | 84 | 18 | 3 | 4-Φ18 | LD083P/LD105SK |
| LDBAAP50 | 50 | 2 | 200 | 248/269 | 107/123 | 290/300 | 165 | 125 | 99 | 20 | 3 | 4-Φ18 | LD083P/LD105SK |
| LDBAAP65 | 65 | 21/2 | 220 | 248/315 | 107/141 | 310/335 | 185 | 145 | 118 | 20 | 3 | 4-Φ18 | LD105P/LD125SK |
| LDBAAP80 | 80 | 3 | 250 | 269/345 | 123/152 | 346/368 | 200 | 160 | 132 | 20 | 3 | 8-Φ18 | LD105P/LD125SK |
| LDBAAP100 | 100 | 4 | 280 | 345/409 | 152/172 | 378/410 | 220 | 180 | 156 | 22 | 3 | 8-Φ18 | AW125/AW160 |
| LDBAAP125 | 125 | 5 | 320 | 409/550 | 172/215 | 425/450 | 250 | 210 | 184 | 22 | 3 | 8-Φ18 | AW160/AW190 |
| LDBAAP150 | 150 | 6 | 360 | 550/600 | 215/240 | 468/531 | 285 | 240 | 211 | 24 | 3 | 8-Φ22 | AW190/AW210 |
| LDBAAP200 | 200 | 8 | 400 | 600/633 | 240/262 | 583/618 | 340 | 295 | 266 | 24 | 3 | 12-Φ22 | AW210/AW240 |
| Main external connection dimensionsQ641F(N、P、H、Y)-PN25(2.5MPA) | |||||||||||||
| Model | DN | in | L | L1 | L2 | ～H | D | D1 | D2 | C | F | n-Φd | Actuator model |
| LDBAAP15 | 15 | 1/2 | 130 | 141/159 | 71/83 | 204/235 | 95 | 65 | 46 | 14 | 2 | 4-Φ14 | LD052P/LD065SK |
| LDBAAP20 | 20 | 3/4 | 140 | 141/159 | 71/83 | 209/240 | 105 | 75 | 56 | 16 | 2 | 4-Φ14 | LD052P/LD065SK |
| LDBAAP25 | 25 | 1 | 150 | 159/211 | 83/95 | 257/265 | 115 | 85 | 65 | 16 | 2 | 4-Φ14 | LD065P/LD083SK |
| LDBAAP32 | 32 | 11/4 | 165 | 211/248 | 83/107 | 269/287 | 140 | 100 | 76 | 18 | 3 | 4-Φ18 | LD075P/LD090SK |
| LDBAAP40 | 40 | 11/2 | 180 | 248/269 | 95/107 | 282/292 | 150 | 110 | 84 | 18 | 3 | 4-Φ18 | LD083P/LD105SK |
| LDBAAP50 | 50 | 2 | 200 | 248/345 | 107/123 | 290/325 | 165 | 125 | 99 | 20 | 3 | 4-Φ18 | LD083P/LD105SK |
| LDBAAP65 | 65 | 21/2 | 220 | 269/345 | 107/152 | 310/357 | 185 | 145 | 118 | 22 | 3 | 8-Φ18 | LD105P/LD125SK |
| LDBAAP80 | 80 | 3 | 250 | 345/409 | 152/172 | 346/368 | 200 | 160 | 132 | 24 | 3 | 8-Φ18 | LD105P/LD140SK |
| LDBAAP100 | 100 | 4 | 280 | 345/438 | 152/187 | 418/443 | 235 | 190 | 156 | 24 | 3 | 8-Φ22 | AW125/AW160 |
| LDBAAP125 | 125 | 5 | 320 | 438/550 | 187/215 | 460/503 | 270 | 220 | 184 | 26 | 3 | 8-Φ26 | AW160/AW190 |
| LDBAAP150 | 150 | 6 | 360 | 550/600 | 215/240 | 518/563 | 300 | 250 | 211 | 28 | 3 | 8-Φ26 | AW190/AW210 |
| LDBAAP200 | 200 | 8 | 400 | 633/730 | 262/330 | 583/618 | 360 | 310 | 274 | 30 | 3 | 12-Φ26 | AW240/AW270 |
| Main external connection dimensionsQ641F(N、P、H、Y)-PN40(4.0MPA) | ||||||||||||||
| Model | DN | in | L | L1 | L2 | ～H | D | D1 | D2 | D3 | C | F | n-Φd | Actuator model |
| LDBAAP15 | 15 | 1/2 | 130 | 141/159 | 71/83 | 204/235 | 95 | 65 | 46 | 40*4 | 14 | 2 | 4-Φ14 | LD052P/LD065SK |
| LDBAAP20 | 20 | 3/4 | 140 | 159/211 | 83/95 | 240/252 | 105 | 75 | 56 | 51*4 | 16 | 2 | 4-Φ14 | LD065P/LD083SK |
| LDBAAP25 | 25 | 1 | 150 | 211/248 | 95/107 | 257/265 | 115 | 85 | 65 | 58*4 | 16 | 2 | 4-Φ14 | LD075P/LD090SK |
| LDBAAP32 | 32 | 11/4 | 180 | 211/248 | 95/107 | 269/287 | 140 | 100 | 76 | 66*4 | 18 | 3 | 4-Φ18 | LD083P/LD105SK |
| LDBAAP40 | 40 | 11/2 | 200 | 248/269 | 107/123 | 282/292 | 150 | 100 | 84 | 76*4 | 18 | 3 | 4-Φ18 | LD090P/LD105SK |
| LDBAAP50 | 50 | 2 | 220 | 248/315 | 107/141 | 300/325 | 165 | 125 | 99 | 88*4 | 20 | 3 | 4-Φ18 | LD105P/LD125SK |
| LDBAAP65 | 65 | 21/2 | 250 | 269/345 | 123/152 | 335/357 | 185 | 145 | 118 | 110*4 | 22 | 3 | 8-Φ18 | LD105P/LD140SK |
| LDBAAP80 | 80 | 3 | 280 | 345/409 | 152/172 | 368/400 | 200 | 160 | 132 | 121*4 | 24 | 3 | 8-Φ18 | LD125P/LD160SK |
| LDBAAP100 | 100 | 4 | 320 | 409/438 | 172/187 | 418/506 | 235 | 190 | 156 | 150*4.5 | 24 | 3 | 8-Φ22 | AW160/ATE190 |
| LDBAAP125 | 125 | 5 | 400 | 550/600 | 215/240 | 445/548 | 270 | 220 | 184 | 176*4.5 | 26 | 3 | 8-Φ26 | AW190/ATE210 |
| LDBAAP150 | 150 | 6 | 400 | 600/633 | 215/262 | 563/598 | 300 | 250 | 211 | 204*4.5 | 28 | 3 | 8-Φ26 | AW240/ATE270 |
| LDBAAP200 | 200 | 8 | 503 | 730 | 330 | 636/666 | 375 | 320 | 284 | 260*4.5 | 30 | 3 | 12-Φ30 | AT270 |
Note:
The length of the ball valve structure and the size of the connecting flange are designed and manufactured according to JB/T79 standards or user requirements.
The actuator models * * */* * are respectively pneumatic actuator double acting/single acting (spring reset).
The actuator models adapted to different valve torques and media may vary, and the relevant dimensions may change accordingly.
The above actuator configurations and data all use soft sealed (F, N, P) valves. For the configuration and data of hard sealed valves, please consult our company
