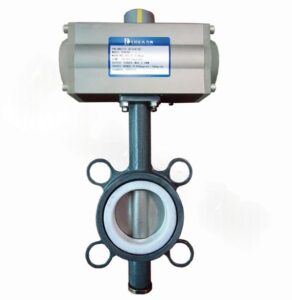

LDBUBFP series pneumatic clamp lined fluorine butterfly valve
| Technical Specifications | Valve body parameters | |
| Cylinder form double acting, single acting | Nominal pressure PN10, PN16 | |
| Environmental temperature -20 ℃~+80 ℃ | Connection method for clamp type and flange standards: JB, GB (with special selection of ANSI, JIS) | |
| Gas source pressure double acting 4-8 bar, single acting 5-8 bar | Valve body materials WCB, SS304, SS316, SS316L | |
| Valve plate material: cast iron WCB、SS304、SS316、SS316L | ||
| Function Options | Sealing materials X, NBR, EPDM, PTFE | |
| Explosion proof type Explosion proof grade: dIIBT4 | Operating Temperature | C2：-20℃～80℃ |
| Signal feedback X1 mechanical passive signal, X2 active signal | C3：-20℃～120℃ | |
| The manual function pneumatic valve can be operated with a handwheel, manual valve opening, and valve closing functions | C4：-40℃～150℃ | |
| Adjustable input 4-20mA signal to achieve ball valve adjustment function | ||
| standard specification | Attachment Options |
| Flange standards JB/T79, GB9113 | Feedback switch, also known as limit switch, remote feedback switch signal |
| Design standard GB/12238 | Electromagnetic valve with double acting option, two position five way, and single acting option, two position three way |
| Structural length GB/12221 | Triple components can stabilize the gas source, filter, and add lubricating oil to the cylinder |
| Clamp connection GB/12221 | The handwheel mechanism can be rotated to manually open and close valves |
| Flange connection size GB/1222 | Electrical locator inputs 4-20mA signal to achieve ball valve adjustment function |
| Experiment and Inspection JB/T9092 | Please refer to the selected pneumatic actuator information for cylinder parameters |

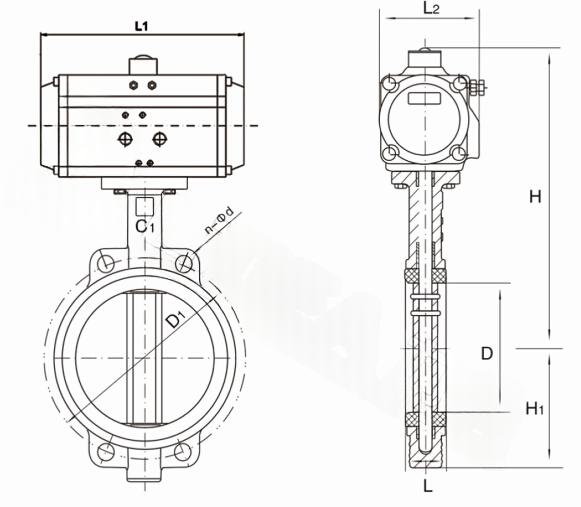

| Main external connection dimensions Q671X(F、F4、J)-PN6.0、10（0.6、1.0MPA） | ||||||||||
| Model | DN | L | L1 | L2 | ～H | H1 | D | D1 | n-Φd | Actuator model |
| LDBUBFP50 | 50 | 42 | 141/159 | 71/83 | 269/281 | 68 | 52.9 | 120 | 4-23 | LD065P/LD083SK |
| LDBUBFP65 | 65 | 44.7 | 159/211 | 83/95 | 283/303 | 75 | 64.5 | 136.2 | 4-26.5 | LD083P/LD105SK |
| LDBUBFP80 | 80 | 45.2 | 159/248 | 83/107 | 289/309 | 93 | 78.8 | 160 | 8-18 | LD083P/LD105SK |
| LDBUBFP100 | 100 | 52.1 | 211/269 | 95/123 | 320/338 | 104 | 10.4 | 185 | 4-24.5 | LD105P/LD140SK |
| LDBUBFP125 | 125 | 54.4 | 248/269 | 107/123 | 351/366 | 118 | 123.3 | 215 | 4-23 | LD125P/LD160SK |
| LDBUBFP150 | 150 | 55.8 | 269/345 | 123/152 | 380/405 | 133 | 155.6 | 238 | 4-25 | LD140P/LD160SK |
| LDBUBFP200 | 200 | 60.6 | 345/409 | 152/172 | 435/477 | 165 | 202.5 | 295 | 4-25 | LD160P/LD190SK |
| LDBUBFP250 | 250 | 65.6 | 409/438 | 172/187 | 509/552 | 197 | 250.5 | 357 | 4-29 | LD190P/LD210SK |
| LDBUBFP300 | 300 | 76.5 | 438/550 | 187/215 | 597/622 | 224 | 301.6 | 407 | 4-29 | LD210P/LD240SK |
| LDBUBFP350 | 350 | 76.5 | 550/600 | 215/240 | 653/688 | 267 | 333.3 | 467 | 4-30 | LD240P/LD270SK |
| LDBUBFP400 | 400 | 86.5 | 550/633 | 215/262 | 720/787 | 309 | 389.6 | 515 | 4-30 | LD270P/AW20S |
| LDBUBFP450 | 450 | 105.6 | 600/633 | 240/262 | 772/858 | 328 | 440.51 | 565 | 4-30 | AW20/AW25S |
| LDBUBFP500 | 500 | 131.8 | 633/730 | 262/330 | 867/1104 | 361 | 491.5 | 620 | 4-33 | AW25/AW28S |
| LDBUBFP600 | 600 | 152 | 730/1700 | 330/ | 998/1220 | 459 | 592.5 | 725 | 4-36 | AW28/AW35S |
| LDBUBFP700 | 700 | 163 | 1320/197 | / | 1116/1282 | 520 | 695 | 840 | 4-36 | |
| LDBUBFP800 | 800 | 188 | 1430/2700 | / | 1330/1007 | 591 | 794.7 | 950 | 4-39 | |
Note:
The length of the ball valve structure and the size of the connecting flange are designed and manufactured according to JB/T79 standards or user requirements.
The actuator models * * */* * are respectively pneumatic actuator double acting/single acting (spring reset).
The actuator models adapted to different valve torques and media may vary, and the relevant dimensions may change accordingly.
The above actuator configuration and data all use soft sealed (F) valves. Please consult our company for the configuration and data of hard sealed valves.
