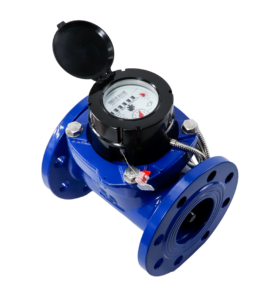

Detachable horizontal screw wing water meter
This meter is a detachable structure, and the water meter does not need to be removed from the pipeline. The movement can be pulled out for repair or replacement; The measuring institution has good universality, reduces spare parts, reduces pressure loss, and has a long service life. Magnetic or non-magnetic signaling pointers can be reserved, and various remote transmission devices can be configured according to different needs to achieve remote meter reading function. Using a steel sealed counter with a 6-digit large wheel, the reading is clear and easy to read, with magnetic connection and low transmission resistance. All technical indicators meet the requirements of the national standard GB/T 778.1-5-2018 “Drinking Cold Water Meter and Hot Water Meter”.
Technical Specifications
| Model | Nominal | Q3 /Q1 | Overload traffic Q4 | Common traffic Q3 | Threshold flow Q2 | Minimum flowQ1 | Minimum Reading | Maximum Reading | |
| caliber | |||||||||
| mm | m3/h | L/h | m3 | ||||||
| LXLC(Y)-50/50G | 50 | 50 | 50 | 40 | 1280 | 800 | 0.001 | 999999 | |
| 80 | 800 | 500 | |||||||
| LXLC(Y)-65/65G | 65 | 50 | 50 | 40 | 1280 | 800 | |||
| 80 | 78.75 | 63 | 1260 | 787.5 | |||||
| LXLC(Y)-80/80G | 80 | 50 | 78.75 | 63 | 2016 | 1260 | |||
| 80 | 1260 | 787.5 | |||||||
| LXLC(Y)-100/100G | 100 | 50 | 125 | 100 | 3200 | 2000 | |||
| 80 | 2000 | 1250 | |||||||
| LXLC(Y)-125/125G | 125 | 50 | 200 | 160 | 5120 | 3200 | |||
| 80 | 3200 | 2000 | |||||||
| LXLC(Y)-150/150G | 150 | 50 | 312.5 | 250 | 8000 | 5000 | 0.01 | 9999999 | |
| 80 | 5000 | 3125 | |||||||
| LXLC(Y)-200/200G | 200 | 50 | 500 | 400 | 12800 | 8000 | |||
| 80 | 8000 | 5000 | |||||||
| LXLC(Y)-250/250G | 250 | 50 | 787.5 | 630 | 20160 | 12600 | 0.1 | 99999999 | |
| 80 | 12600 | 7875 | |||||||
| LXLC(Y)-300/300G | 300 | 50 | 1250 | 1000 | 32000 | 20000 | |||
| 80 | 20000 | 12500 | |||||||
| LXLC(Y)-400/400G | 400 | 50 | 2000 | 1600 | 51200 | 32000 | |||
| 80 | 32000 | 20000 | |||||||
| LXLC(Y)-500/500G | 500 | 50 | 3125 | 2500 | 80000 | 50000 | |||
| 80 | 50000 | 31250 | |||||||
Maximum allowable error:
a) The maximum allowable error for the low zone (Q1 ≤ Q ＜ Q2) is ± 5%;
b) The maximum allowable error for the high zone (Q2 ≤ Q ≤ Q4) is ± 2%.
| Model | Caliber | L | H | G | Flange connection | weight | ||
| mm | Outer diameter D | Bolt hole center diameter D1 | connecting bolt | |||||
| mm | kg | |||||||
| LXLC(Y)-50/50G | 50 | 200 | 256/245(G) | 400 | 165 | 125 | 4×M16 | 12 |
| LXLC(Y)-65/65G | 65 | 200 | 266/255(G) | 400 | 185 | 145 | 4×M16 | 13.5 |
| LXLC(Y)-80/80G | 80 | 225 | 276/265(G) | 400 | 200 | 160 | 8×M16 | 14.5 |
| LXLC(Y)-100/100G | 100 | 250 | 286/275(G) | 400 | 220 | 180 | 8×M16 | 15.5 |
| LXLC-125/125G | 125 | 250 | 301/290(G) | 400 | 250 | 210 | 8×M16 | 24.5 |
| LXLC(Y)-150/150G | 150 | 300 | 345/335(G) | 500 | 285 | 240 | 8×M20 | 32 |
| LXLC(Y)-200/200G | 200 | 350 | 373/365(G) | 500 | 340 | 295 | 8×M20 | 41 |
| LXLC(Y)-250/250G | 250 | 450 | 493/485(G) | 710 | 395 | 350 | 12×M20 | 83 |
| LXLC(Y)-300/300G | 300 | 500 | 516/505(G) | 730 | 445 | 400 | 12×M20 | 99 |
| LXLC(Y)-400/400G | 400 | 600 | 631/620(G) | 830 | 565 | 515 | 16×M24 | 163 |
| LXLC(Y)-500/500G | 500 | 800 | 739/730(G) | 930 | 670 | 620 | 20×M24 | 270 |
Note: The flange connection shall comply with the dimensions of PN10 integral cast iron flanges specified in GB/T 17241.6-2008/XG1-2011, and shall be specified when ordering special specifications.
The height G dimension is necessary for disassembling the movement. The external dimensions and weight are for reference only, and the actual product shall prevail. (G represents dry structure)
| Temperature Grade | T30 |
| Maximum allowable pressure | 1.0MPa、1.6 MPa |
| Pressure loss level | Δp63 |
| Sensitivity level of upstream flow field | U0、U3、U5、U10 |
| Sensitivity level of downstream flow field | D0、D3、D5 |
| Reverse flow | Unmeasurable |
| Directional restrictions | H |
