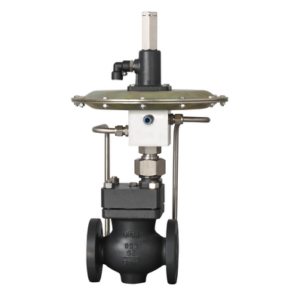

LD30W series self operated micro pressure regulating valve
| High safety: Used in non electrical environments, there are no external energy hazards. The nitrogen sealing device is easy to set for nitrogen supply and release pressure, and can be operated under continuous production conditions. The nitrogen supply device is operated by a commander, with a pressure reduction ratio of up to 100:1, good pressure reduction effect, and high control accuracy. A breathing valve is required for top filling to ensure safety and avoid the frequent opening and closing and easy damage defects of conventional nitrogen sealing devices | Valve body parameters |
| Nominal pressure PN10, PN16 | |
| Connection method: flange type, (special: welding type) | |
| Valve body material 1Cr18Ni9Ti, Cr18Ni12Mo2Ti | |
| Technical Parameters | Valve core materials 1Cr18Ni9Ti, Cr18Ni12Mo2Ti, and Steller welding |
| Action mode pressure regulation | Sealing material PTFE, hard seal |
| Traffic Characteristics Quick Open | Corrugated pipe 1Cr18Ni9Ti |
| Sealing grade II, IV, VI | Diaphragm Nitrile Rubber (NBR) |
| Adjustment accuracy ± 5% | Push rod liner 2Cr13 |
| Function attachment options | Flange standards GB9113-88, JB/T79-94, GB2555-81 |
| – Equipped with a commander and micro pressure adjustment | Fluid temperature ≤ 80 ℃ |
| Main technical parameters and performance indicators of nitrogen supply device | |||||||||||||||
| Nominal diameter (mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | ||||||||
| Valve seat diameter (mm) | 5 | 6 | 7 | 8 | 10 | 12 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Rated flow coefficient Kv | 0.2 | 0.32 | 0.5 | 0.8 | 1.8 | 2.8 | 4.4 | 6.9 | 11 | 20 | 30 | 48 | 75 | 120 | 190 |
| Rated travel L (mm) | 8 | 10 | 14 | 20 | 25 | ||||||||||
| Pressure regulation range (kPa) | 0.4～5.5、5～10、9～14、13～19、18～24、22～28、27～33、31～38、36～44、42～51、49～58、56～66 | ||||||||||||||
| Allow leakage level | Standard grade: Grade IV (GB/T4213-92) Tightness: Grade VI (GB/T4213-92) | ||||||||||||||
| Dimensions and weight of nitrogen supply device | |||||||
| Nominal diameter DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| L | 160 | 180 | 200 | 230 | 290 | 310 | 350 |
| A | 308 | 308 | 308 | 308 | 394 | 394 | 394 |
| H2 | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
| H1 | 60 | 75 | 80 | 85 | 105 | 105 | 120 |
| H | 720 | 730 | 730 | 750 | 840 | 840 | 890 |
| Weight kg | 32 | 35 | 40 | 50 | 80 | 115 | |
