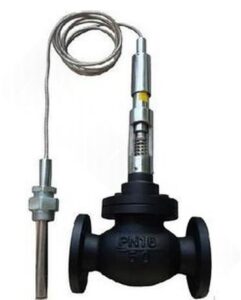

LDZZWP 30T01 (heating type) 30T02 (cooling type) self operated temperature regulating valve
| High safety: Used in non electrical environments, there are no external energy hazards | Valve body parameters | |
| Energy saving: No need for external energy, utilizing pipeline pressure regulation | Nominal pressure PN16, PN40 | |
| Simplified system: No need for external control instruments, simple system, low cost | Connection method: flange type, (special: welded type) ANSL GB JB DIN | |
| Easy to operate: simply rotate and adjust the spring extension during setting | Valve body material 1Cr18Ni9Ti, Cr18Ni12Mo2Ti ZG230-450 | |
| Technical Parameters | Valve core materials 1Cr18Ni9Ti, Cr18Ni12Mo2Ti, and Steller welding | |
| Set temperature -20~50 20~90 40~110 60~120 | Sealing material PTFE, hard seal, special high-temperature material | |
| Temperature protection with super value setting value within 100 ° C | Bellows SS, SS304, SS316 | |
| Warm package material copper nickel plating | Packing PTFE, flexible graphite | |
| Capillary length 5, 10, 15 meters | Push rod liner 2Cr13 | |
| Sealing grade II, IV, VI | Gasket rubber asbestos board, 1Cr18Ni9Ti asbestos wrapped gasket | |
| Execution agencies T06, T17 | Flange standards GB9113-88, JB/T79-94, GB2555-81 | |
| Adjustment accuracy ± 5% | Specially made flange ANSI, JIS, DIN | |
| Function attachment options | Fluid temperature | C3 group -30 ℃~150 ℃ |
| Pressure Balance Stainless Steel Bellows Balance Diaphragm | C4 group -30 ℃~180 ℃ | |
| C7 group -30 ℃~350 ℃ | ||
| Main technical parameters and performance indicators | ||||||||||||||
| Nominal diameter DN (mm) | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| Rated flow coefficient Kv | 7 | 11 | 20 | 30 | 48 | 75 | 120 | 190 | 300 | 480 | 760 | 1100 | 1750 | |
| Rated stroke (mm) | 8 | 10 | 14 | 20 | 25 | 40 | 50 | 60 | 70 | |||||
| Pressure regulation range (KPa) | 15～50 40～80 60～100 80～140 120～180 160～220 200～260 240～300 280～350 330～400 380～450 430～500 480～560 540～620 600～700 680～800 780～900 880～1000 980～1500 1000～2500 | |||||||||||||
| Allowable leakage | Hard seal (l/h) | Single seat: ≤ 10-4 valve rated capacity (Class IV); Double seat, sleeve: ≤ 5 × 10 ˉ 3 valve rated capacity (Class II) | ||||||||||||
| Soft seal (ml/h) | 0.15 0.30 0.45 0.60 0.90 1.7 4.0 6.75 11.10 16.0 | |||||||||||||
| Pressure reduction ratio | maximum | 10 | ||||||||||||
| minimum | 1.25 | |||||||||||||
| Dimensions and weight unit: mm | |||||||||||||||
| Nominal diameter DN | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | ||
| Flange connection size B | 383 | 512 | 603 | 862 | 1023 | 1380 | 1800 | 2000 | 2200 | ||||||
| Flange end distance L | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | ||
| press | 15-140 | H | 475 | 520 | 540 | 710 | 780 | 840 | 880 | 915 | 940 | 1000 | |||
| force | A | 280 | 308 | ||||||||||||
| tune | 280-500 | H | 455 | 500 | 520 | 690 | 760 | 800 | 870 | 880 | 900 | 950 | |||
| section | A | 230 | |||||||||||||
| Fan | 120-300 | H | 450 | 490 | 510 | 680 | 750 | 790 | 860 | 870 | 890 | 940 | |||
| enclose | A | 176 | 194 | 280 | |||||||||||
| KPa | 480-1000 | H | 450 | 480 | 670 | 740 | 780 | 850 | 860 | 880 | 930 | ||||
| A | 176 | 194 | 280 | ||||||||||||
| 600-1500 | H | 445 | 570 | 600 | 820 | 890 | 950 | 1000 | 1100 | 1200 | |||||
| A | 85 | 96 | |||||||||||||
| 100-2500 | H | 445 | 570 | 600 | 820 | 890 | 950 | 1000 | 1100 | 1200 | |||||
| A | 85 | 96 | |||||||||||||
| Weight kg | 26 | 37 | 42 | 72 | 90 | 114 | 130 | 144 | 180 | 200 | 250 | ||||
| Pressure connector thread | M16*1.5 | ||||||||||||||
