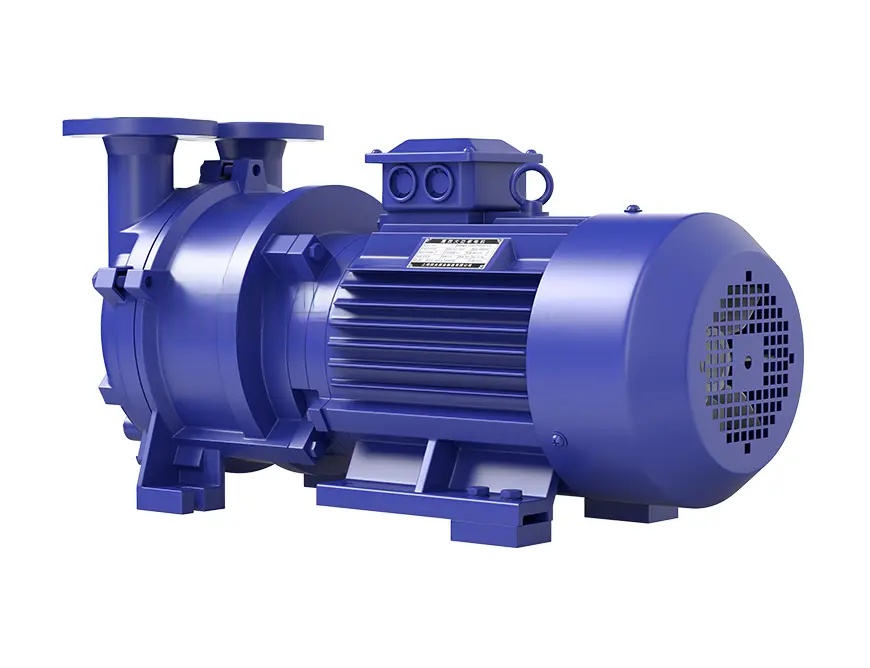

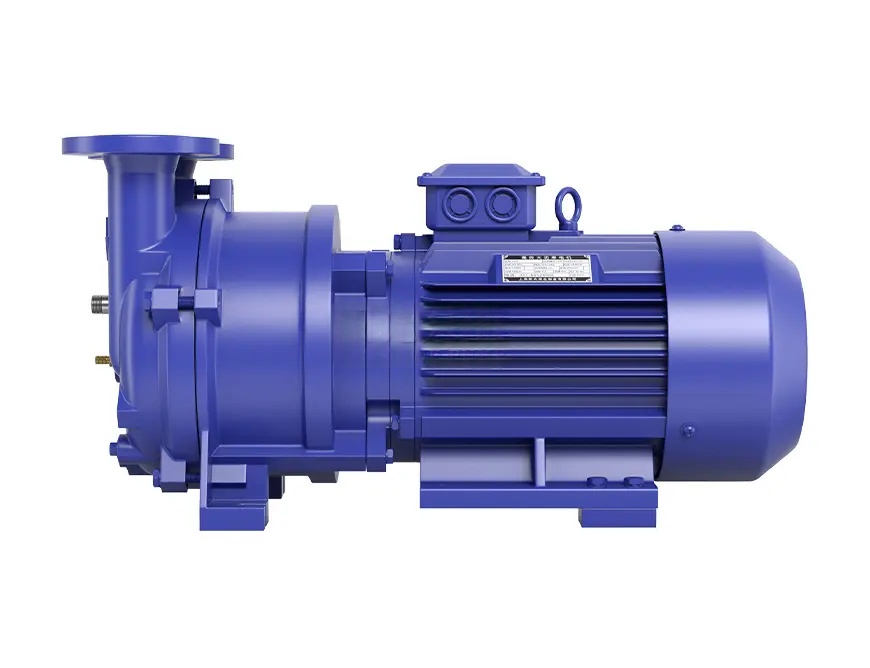

SKA, 2BV type water ring vacuum pump

It has the characteristics of simple structure, convenient maintenance, smooth operation, safety and reliability

Product Introduction

• The SKA (2BV) series vacuum pump is suitable for extracting gases and water vapor, with a suction pressure of up to 33mbar absolute pressure (97% vacuum degree).
• When the vacuum pump operates for a long time with a suction pressure below 80mbar, a cavitation protection pipe should be connected to protect the pump
• If equipped with an atmospheric injector, the suction pressure can reach 10mbar. The injector can be directly installed on the vacuum pump, and when used as a compressor, its pressure can be as high as 0.26MPa (absolute pressure).

Advantage

• The coaxial direct connection design of the pump saves space and is easy to install.
• Using mechanical seals as standard configuration eliminates leaks and makes maintenance easy.
• This vacuum pump runs smoothly and has low noise.
• The unified corrosion-resistant design, bronze impeller improves the corrosion resistance of the pump, while stainless steel material is more suitable for more demanding applications.
• The unique flexible exhaust port design ensures high efficiency of SKA within its performance range by preventing over compression.

scope of application

Widely used in the fields of petrochemicals, pharmaceuticals, food, sugar industry, etc., due to the isothermal compression process of gas during operation, it is not easy to cause danger when compressing and suctioning flammable and explosive gases, and its application is more extensive.

performance parameter

keyword：Water ring vacuum pump、High vacuum pump、Compression and suction pumps for flammable and explosive gases、
