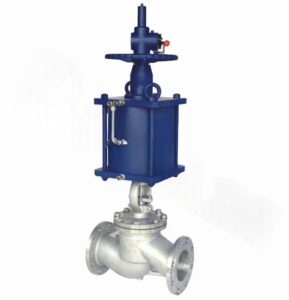

LDZP series pneumatic gate valve
| Technical Specifications | Valve body parameters | |
| Cylinder form double acting, single acting | Nominal pressure PN16, PN25, PN40 | |
| Environmental temperature -20 ℃~+80 ℃ | Connection method: Flange type GB (special selection JB, ANSI, JIS) | |
| Gas source pressure double acting 4-8 bar, single acting 5-8 bar | Valve body materials WCB, SS304, SS316, SS316L | |
| Valve plate material SS, SS304, SS316, SS316L | ||
| Function Options | Sealing materials PTFE, PPL (special selection: graphite, metal hard seal) | |
| Explosion proof type Explosion proof grade: dIIBT4 | Operating Temperature | C6：-30℃～150℃(Y) |
| Signal feedback X1 mechanical passive signal, X2 active signal | C7：-30℃～250℃(S) | |
| The manual function pneumatic valve can be operated with a handwheel, manual valve opening, and valve closing functions | C8：-30℃～350℃(S) | |
| Adjustable input 4-20mA signal to achieve ball valve adjustment function | ||
| standard specification | Attachment Options |
| Design based on GB standards and ANSI standards | Feedback switch, also known as limit switch, remote feedback switch signal |
| Design standard GB/12234 ANSI B16.34 | Electromagnetic valve with double acting option, two position five way, and single acting option, two position three way |
| Flange connection GB/12221 ANSI B16.10 | Triple components can stabilize the gas source, filter, and add lubricating oil to the cylinder |
| Structural length GB/12221 ANSI B16.10 | The handwheel mechanism can be rotated to manually open and close valves |
| Flange connection dimensions GB/9113, JB/T79 ANSI B16.5 (2-24 ”) ANSI B16.47 (28-30 ”) | Electrical locator inputs 4-20mA signal to achieve ball valve adjustment function |
| Experiment and Inspection JB/T9092 API598 | Please refer to the selected pneumatic actuator information for cylinder parameters |

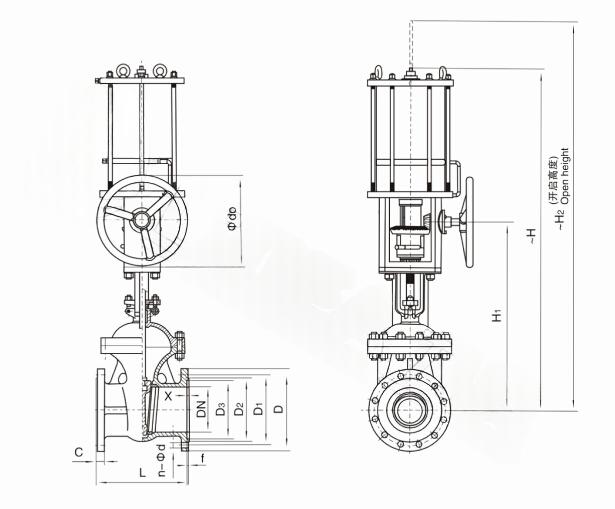

| Main external connection dimensions Q641F(N、P、H、Y）-PN16(1.6MPA) | ||||||||||||
| Model | DN | L | ～H | H1 | ～H2 | Φdo | D | D1 | D2 | C | F | N-Φd |
| LDZP50 | 50 | 250 | 790 | 420 | 840 | 180 | 165 | 125 | 99 | 20 | 3 | 4-Φ18 |
| LDZP80 | 80 | 280 | 910 | 460 | 990 | 200 | 200 | 160 | 132 | 20 | 3 | 8-Φ18 |
| LDZP100 | 100 | 300 | 1050 | 560 | 1150 | 250 | 220 | 180 | 156 | 22 | 3 | 8-Φ18 |
| LDZP150 | 150 | 350 | 1240 | 660 | 1390 | 320 | 285 | 240 | 211 | 24 | 3 | 8-Φ22 |
| LDZP200 | 200 | 400 | 1520 | 810 | 1720 | 400 | 340 | 295 | 266 | 24 | 3 | 12-Φ22 |
| LDZP250 | 250 | 450 | 1700 | 930 | 1950 | 400 | 405 | 355 | 319 | 26 | 3 | 12-Φ26 |
| LDZP300 | 300 | 500 | 1930 | 1090 | 2230 | 450 | 460 | 410 | 370 | 28 | 4 | 12-Φ26 |
| LDZP350 | 350 | 550 | 2160 | 1230 | 2510 | 450 | 520 | 470 | 429 | 30 | 4 | 16-Φ26 |
| LDZP400 | 400 | 600 | 2330 | 1360 | 2730 | 500 | 580 | 525 | 480 | 32 | 4 | 16-Φ30 |
| LDZP450 | 450 | 650 | 2540 | 1510 | 2990 | 500 | 640 | 585 | 548 | 34 | 4 | 20-Φ30 |
| LDZP500 | 500 | 700 | 2750 | 1660 | 2150 | 550 | 715 | 650 | 609 | 36 | 4 | 20-Φ33 |
| LDZP600 | 600 | 800 | 3080 | 1910 | 3680 | 550 | 840 | 770 | 720 | 38 | 5 | 20-Φ36 |
| LDZP700 | 700 | 900 | 3570 | 2200 | 4270 | 600 | 910 | 840 | 794 | 40 | 5 | 24-Φ36 |
| LDZP800 | 800 | 1000 | 1025 | 950 | 901 | 42 | 5 | 24-Φ39 | ||||
Note:
The length of the ball valve structure and the size of the connecting flange are designed and manufactured according to JB/T79 standards or user requirements.
The actuator models * * */* * are respectively pneumatic actuator double acting/single acting (spring reset).
The actuator models adapted to different valve torques and media may vary, and the relevant dimensions may change accordingly.
The above actuator configuration and data all use soft sealed (F) valves. Please consult our company for the configuration and data of hard sealed valves.
