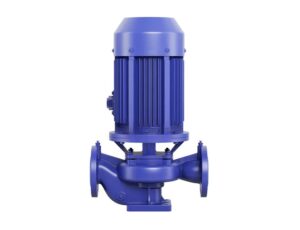

YG type vertical explosion-proof oil pump

YG type vertical explosion-proof oil pump

Vertical explosion-proof motor is suitable for flammable and explosive environments, with stable operation

Product Introduction

• YG type vertical single-stage single suction explosion-proof centrifugal pump adopts the performance parameters of IS type centrifugal pump and is ingeniously designed on the basis of general vertical pumps.
• According to different operating temperatures, media, etc., suitable hot water, high temperature, corrosive chemical pumps and oil pumps are dispatched on the basis of ISG type.
• This series of products has the advantages of high efficiency, energy saving, low noise, and reliable performance.

Advantage

• The pump is a vertical structure with the same inlet and outlet diameters and located on the same centerline, which can be installed in the pipeline like a valve.
• The impeller is directly installed on the extended shaft of the motor, with a short axial dimension, compact and beautiful structure, small footprint, low construction investment, and can be used outdoors with a protective cover.
• The reasonable configuration of pump and motor bearings can effectively balance the radial and axial loads generated by pump operation, thereby ensuring smooth pump operation, low vibration, and low noise.
• The shaft seal adopts mechanical seal or a combination of mechanical seals, using imported titanium alloy sealing rings, medium-sized high-temperature resistant mechanical seals, and hard alloy materials. The wear-resistant seal can effectively extend the service life.
• Easy installation and maintenance, no need to disassemble the pipeline system, just remove the pump coupling nut to extract all rotor components.

scope of application

• Transporting oil, kerosene, diesel, solvents, edible oil, the temperature of the transported medium is -20 ℃~120 ℃.
• Widely used in oil depots, docks, ships, chemical, textile, environmental protection and other industrial and mining enterprises.
• Pumps used for high-temperature hot water pressurized circulation and transportation in industries such as metallurgy, chemical, textile, wood processing, papermaking, as well as in hotels, bathrooms, and guesthouses, and for urban housing heating circulation, with operating temperatures below 105 ℃.

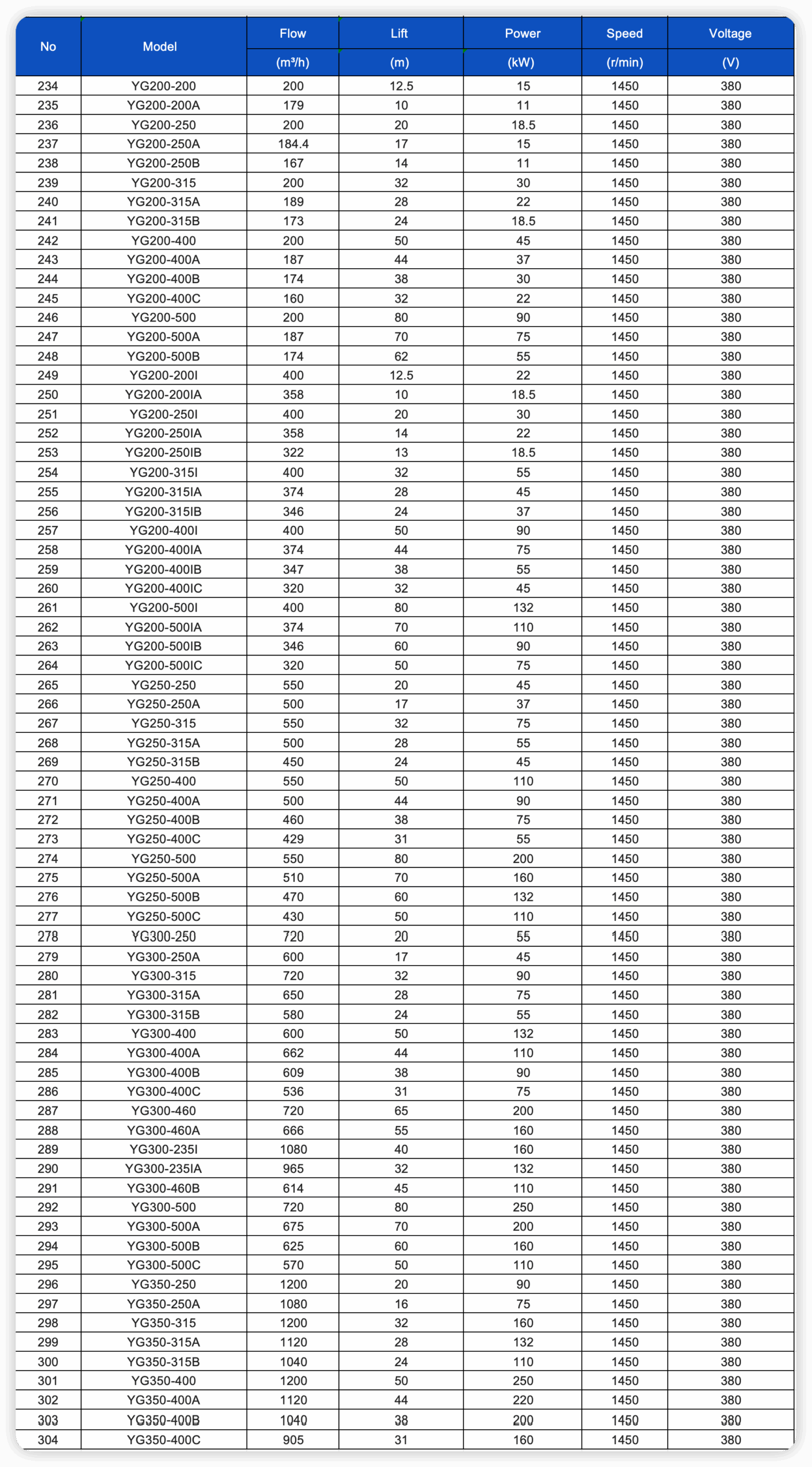

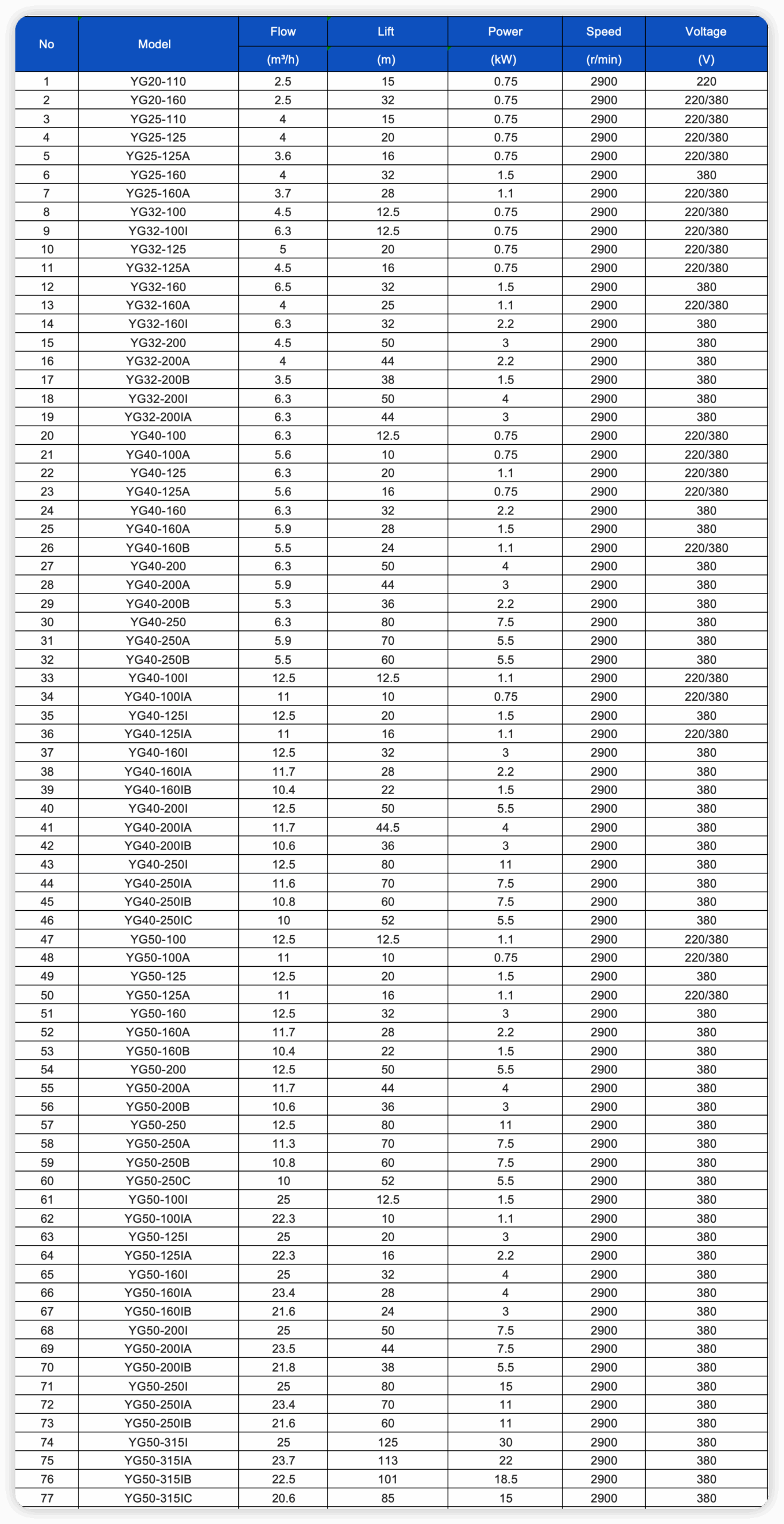

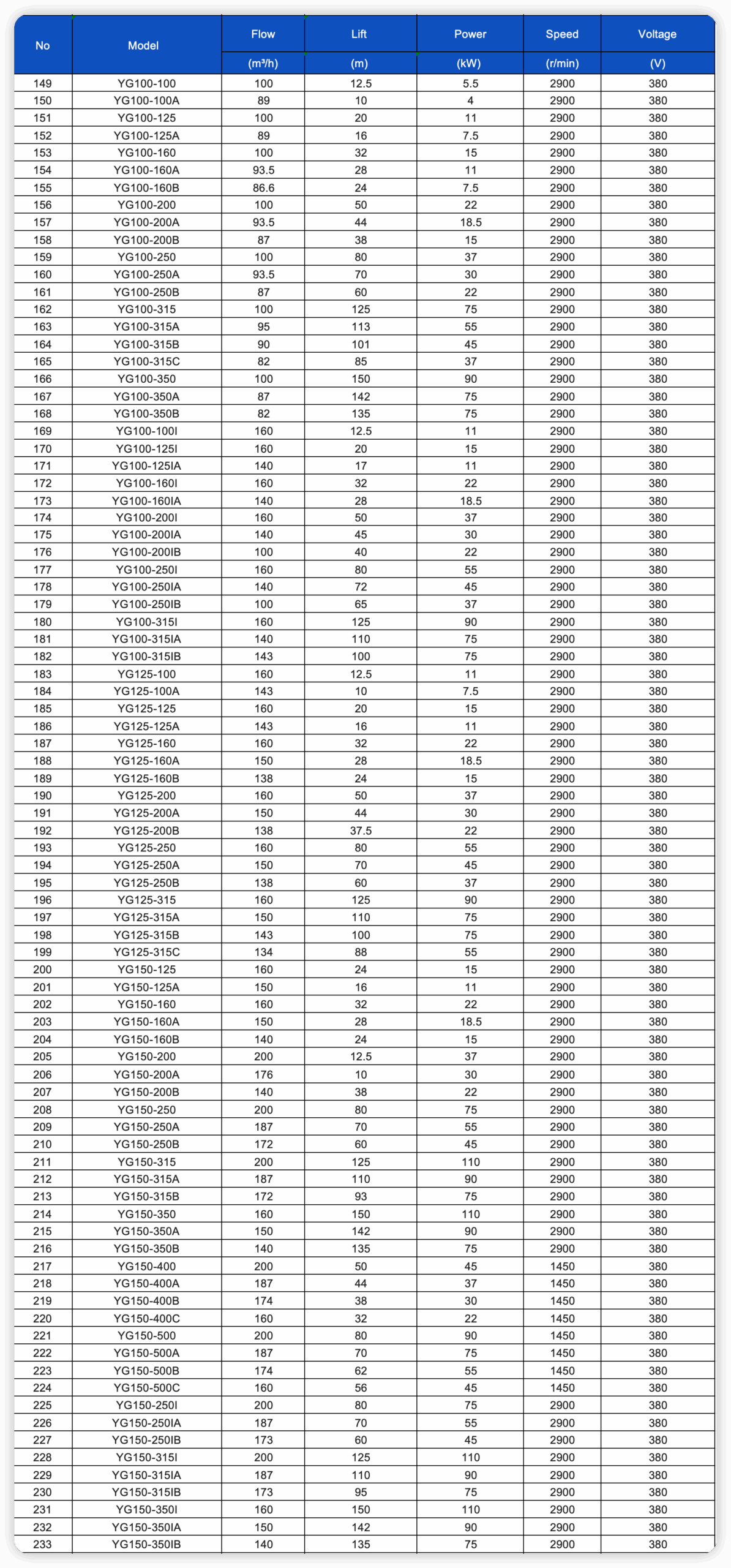

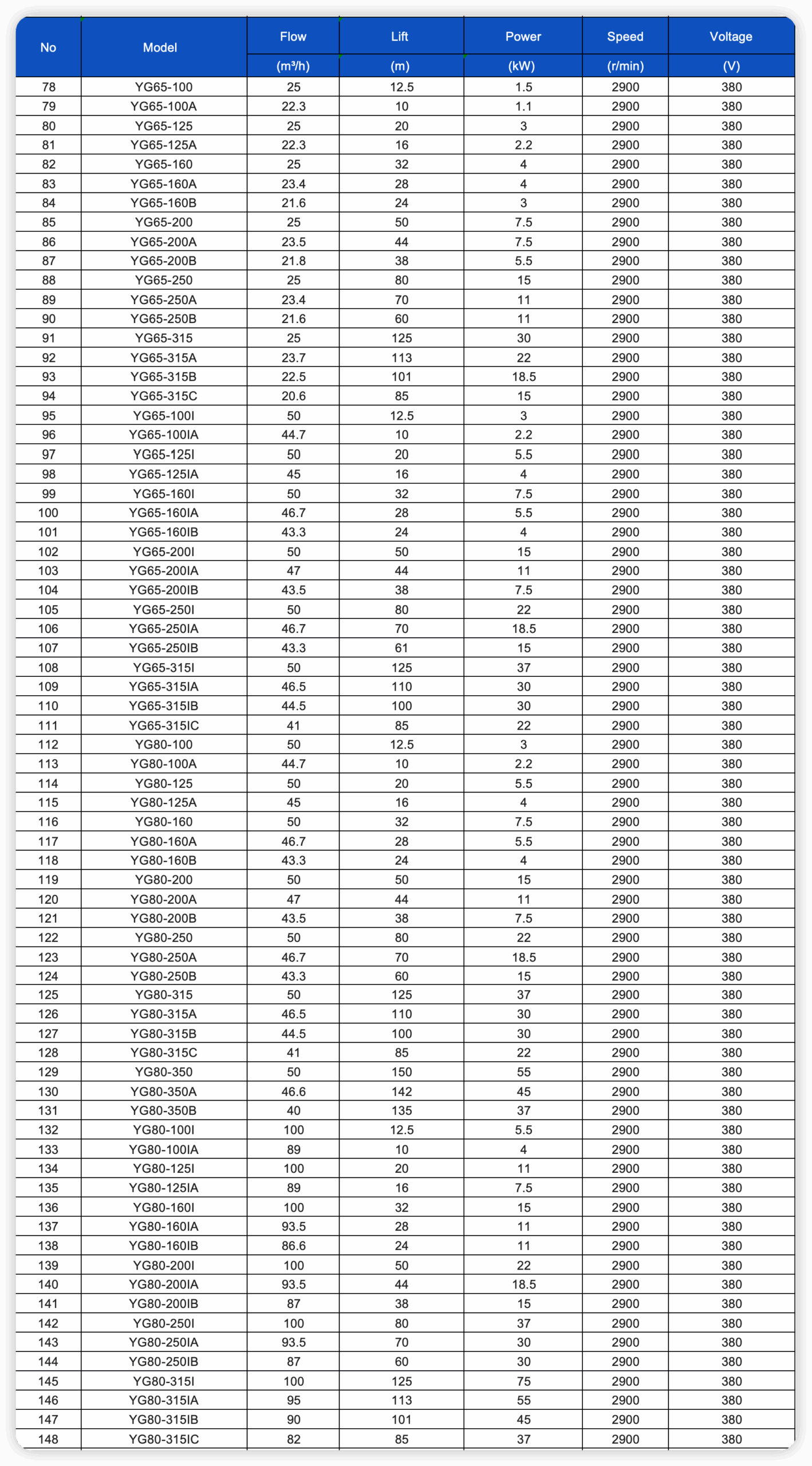

performance parameter

keyword：oil pump、Vertical explosion-proof oil pump、High temperature and corrosion-resistant pump、Transporting gasoline and diesel liquid pumps
