YW type unobstructed submersible pump

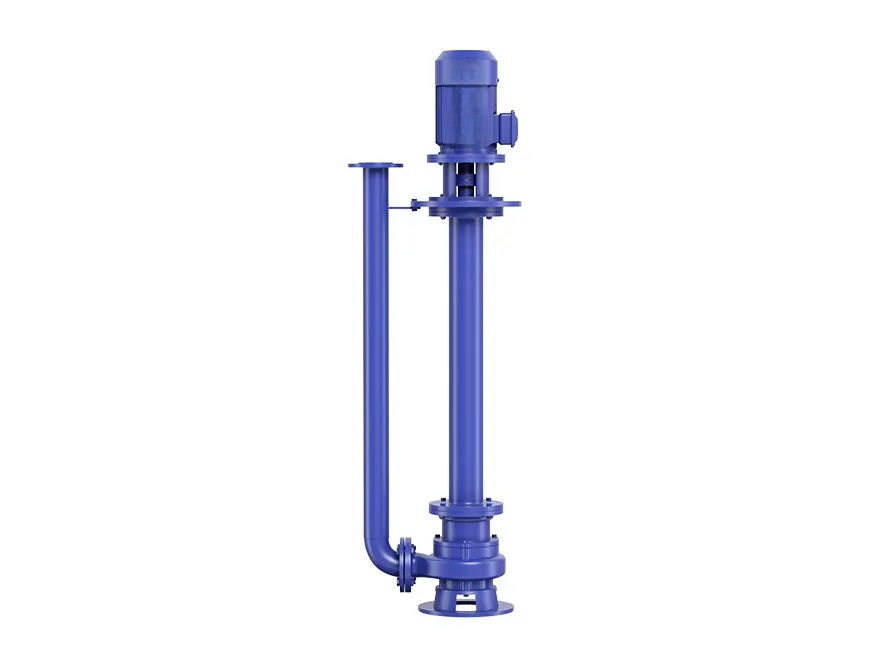

YW type unobstructed submersible pump

Can be used in both single and double pipes, with a wide range of applications, and can transport solids and long fibers

Product Introduction

The YW series submersible non clogging sewage pump has the characteristics of anti winding, non clogging, and automatic installation.
This series of sewage pumps adopts a unique impeller structure and a new type of mechanical seal, which can effectively transport solids and long fibers.
Compared with traditional impellers, the impeller adopts a single or double channel form, which has very good overcurrent performance. Coupled with a reasonable volute chamber, the YW submersible sewage pump has high efficiency. The impeller has undergone dynamic and static balance tests, making the pump operate without vibration.

Advantage

By adopting a unique single or double blade impeller structure, the ability of pollutants to pass through is greatly improved, which can effectively pass through 5 times the fiber material of the pump diameter and solid particles with a diameter of about 50% of the pump diameter.
The overall structure is compact, the volume is small, the noise is low, the energy-saving effect is significant, the maintenance is convenient, and there is no need to build a pump room. It can work underwater, greatly reducing the project cost.
It can be equipped with a liquid level automatic control cabinet, which can automatically control the start and stop of the pump according to the required liquid level changes, without the need for special supervision, and is easy to use.
The pump is a vertical structure, and the pump body is immersed in liquid during operation, making it easy to start. There is no problem of exhaust and evacuation, and it has the characteristics of no leakage. The underwater depth can reach 15 meters.
The shaft structure is advanced and reliable, and the sewage pump and motor are connected by a coupling. The pump shaft size is precise, ensuring smooth operation of the pump and leaving sufficient safety factors.
There are two types of pumps: single tube installation and double tube installation. The supporting components include disc and square disc installation, which are suitable for different needs.
Ensure that the motor operates without overload within the range of head.

working conditions

The medium temperature should not exceed 60 ℃, the weight should be 1-1.3kg/dm3, and the pH value should be within the range of 5-9.
In general, the pump must be used within the range of head to ensure that the motor is not overloaded. If it needs to be used within the full head range, it should be specified separately when ordering for the manufacturer to manufacture.
The current of the pump motor during operation shall not exceed the rated current of the motor.
If there are special requirements for temperature, medium, etc., please specify the detailed information of the conveying medium when ordering for manufacturing purposes.

performance parameter

No	Model	Caliber	Flow	Lift	Power	Speed
No	Model	(mm)	(m³/h)	(m)	(kW)	(r/min)
1	YW25-8-22-1.5	25	8	22	1.5	2900
2	YW32-12-15-1.1	32	12	15	1.1	2900
3	YW40-15-15-1.5	40	15	15	1.5	2900
4	YW40-15-30-2.2	40	15	20	2.2	2900
5	YW50-10-10-0.75	50	10	10	0.75	2900
6	YW50-20-7-0.75	50	20	7	0.75	2900
7	YW50-20-15-1.5	50	20	15	1.5	2900
8	YW50-15-25-2.2	50	15	25	2.2	2900
9	YW50-18-30-3.0	50	18	30	3	2900
10	YW50-40-15-4	50	40	15	4	2900
11	YW50-20-40-7.5	50	20	40	7.5	2900
12	YW50-25-32-5.5	50	25	32	5.5	2900
13	YW65-25-15-2.2	65	25	15	2.2	2900
14	YW65-37-13-3	65	37	13	3	2900
15	YW65-25-30-4.0	65	25	30	4	2900
16	YW65-30-40-7.5	65	30	40	7.5	2900
17	YW65-35-50-11	65	35	50	11	2900
18	YW65-35-60-15	65	35	60	15	2900
19	YW80-60-18-5.5	80	60	18	5.5	2900
20	YW80-40-7-2.2	80	40	7	2.2	2900
21	YW80-43-13-3	80	43	13	3	2900
22	YW80-40-15-4	80	40	15	4	2900
23	YW80-65-25-7.5	80	65	25	7.5	2900
24	YW100-80-10-4.0	100	80	10	4	1450
25	YW100-110-10-5.5	100	110	10	5.5	1450
26	YW100-80-20-7.5	100	80	20	7.5	1450
27	YW100-100-15-7.5	100	100	15	7.5	1450
28	YW100-100-25-11	100	100	25	11	1450
29	YW100-100-30-15	100	100	30	15	1450
30	YW100-100-35-18.5	100	100	35	18.5	1450
31	YW150-145-9-7.5	150	145	9	7.5	1450
32	YW150-180-15-15	150	180	15	15	1450
33	YW150-180-20-18.5	150	180	20	18.5	1450
34	YW150-180-25-22	150	180	25	22	1450
35	YW150-180-30-30	150	180	30	30	1450
36	YW150-200-30-37	150	200	30	37	1450
37	YW200-300-7-11	200	300	7	11	1450
38	YW200-250-11-15	200	250	11	15	1450
39	YW200-250-15-18.5	200	250	15	18.5	1450
40	YW200-400-10-22	200	400	10	22	1450
41	YW200-400-13-30	200	400	13	30	1450
42	YW200-350-25-37	200	350	25	37	1450
43	YW200-400-30-45	200	400	25	45	1450
44	YW200-400-30-55	200	400	30	55	1450
45	YW200-350-40-75	200	350	40	75	1450
46	YW200-280-50-90	200	280	50	90	1450
47	YW200-380-28-45	200	380	28	45	1450
48	YW250-600-9-30	250	600	9	30	980
49	YW250-600-12-37	250	600	12	37	1450
50	YW250-600-15-45	250	600	15	45	1450
51	YW250-600-20-55	250	600	20	55	1450
52	YW250-600-25-75	250	600	25	75	1450
53	YW250-600-30-90	250	600	30	90	1450
54	YW250-500-7.5-18.5	250	500	7.5	18.5	980
55	YW250-520-8-22	250	520	8	22	980
56	YW300-500-15-45	300	500	15	45	1450
57	YW300-800-15-55	300	800	15	55	1450
58	YW300-600-20-55	300	600	20	55	1450
59	YW300-800-20-75	300	800	20	75	1450
60	YW300-950-20-90	300	950	20	90	1450
61	YW300-1000-25-110	300	1000	25	110	1450
63	YW300-800-32-110	300	800	32	110	1450
64	YW300-800-36-132	300	800	36	132	1450
65	YW300-800-44-160	300	800	44	160	980
66	YW350-1100-10-55	350	1100	10	55	980
67	YW350-1300-12-75	350	1300	12	75	980
68	YW350-1500-15-90	350	1500	15	90	980
69	YW350-1200-18-90	350	1200	18	90	980
70	YW350-1100-28-132	350	1100	28	132	980
71	YW350-1000-36-160	350	1000	36	160	980
72	YW350-1200-8-45	350	1200	8	45	980
73	YW400-1760-7.5-55	400	1760	7.5	55	580
74	YW400-1500-10-75	400	1500	10	75	980
78	YW400-2200-9-110	400	2200	9	110	980
79	YW400-1700-30-200	400	1700	30	200	980
80	YW400180032250	400	1800	32	250	740
81	YW500-2800-10-132	500	2800	10	132	740
82	YW500-2600-15-160	500	2600	15	160	740
83	YW500-2500-10-110	500	2500	10	110	740
84	YW500-3000-15-200	500	3000	15	200	740
85	YW500-2400-22-220	500	2400	22	220	740
86	YW500-2800-18-220	500	2800	18	220	740
87	YW500-4000-15-250	500	4000	15	250	980
88	YW500-2600-24-250	500	2600	24	250	980

keyword：Unobstructed submersible pump、Sewage pump、Transporting solid materials and long fiber pumps
