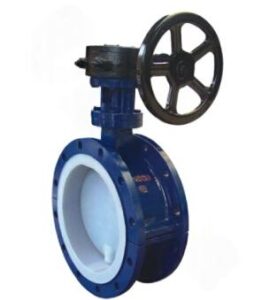

D41F4-10C, 16P, D341F4-10C, 16P flange lined PTFE butterfly valves
| Main components and materials | Standard for PTFE lined butterfly valves | ||
| Part Name | Material | design standards | GB12238 |
| Upper and lower valve bodies | Cast iron, cast steel, stainless steel, lining F4 | structural length | GB12221 |
| Valve seat | F4 | Flange Standard | JB/T79-94 |
| Rod disc board | Full lining (WCB package lining), semi lining (stainless steel) | GB9113.1-26 | |
| Pad pad | silicon rubber | Inspection and testing | GB/T13927 |
| Turbine handle | Qt400-15 ductile iron, aluminum alloy | Drive Type | Turbo, manual, electric, pneumatic |
| Main external connection dimensions | |||||||||
| Model | Overall dimensions | connection size | |||||||
| L | H2 | H1 | 1.0MPa | 1.6MPa | |||||
| D | D1 | Z-Φd | D | D1 | Z-Φd | ||||
| D41F4-10C | 50 | 2 | 43 | 143 | 85 | 165 | 125 | 100 | 3 |
| D41F4-10C | 65 | 2 1/2 | 46 | 157 | 93 | 185 | 145 | 120 | 3 |
| D41F4-10C | 80 | 3 | 46 | 178 | 100 | 200 | 160 | 135 | 3 |
| D41F4-10C | 100 | 4 | 52 | 185 | 110 | 220 | 180 | 155 | 3 |
| D41F4-10C | 125 | 5 | 56 | 206 | 120 | 250 | 210 | 185 | 3 |
| D41F4-10C | 150 | 6 | 56 | 225 | 160 | 285 | 240 | 210 | 3 |
| D41F4-10C | 200 | 8 | 60 | 275 | 245 | 340 | 295 | 265 | 3 |
| D41F4-10C | 250 | 10 | 68 | 326 | 260 | 395 | 350 | 320 | 4 |
| D41F4-10C | 300 | 12 | 78 | 333 | 300 | 445 | 400 | 370 | 4 |
| D41F4-10C | 350 | 14 | 78 | 393 | 320 | 505 | 460 | 430 | 4 |
| D41F4-10C | 400 | 16 | 102 | 438 | 330 | 565 | 515 | 480 | 4 |
| D41F4-10C | 450 | 18 | 114 | 488 | 380 | 615 | 565 | 530 | 4 |
| D41F4-10C | 500 | 20 | 127 | 540 | 390 | 670 | 620 | 580 | 4 |
| D41F4-10C | 600 | 24 | 154 | 615 | 450 | 780 | 725 | 680 | 5 |
| D41F4-10C | 700 | 28 | 165 | 660 | 480 | 895 | 840 | 795 | 5 |
| D41F4-10C | 800 | 32 | 190 | 720 | 580 | 1015 | 950 | 900 | 5 |
| D41F4-10C | 900 | 36 | 203 | 785 | 625 | 1115 | 1050 | 1000 | 5 |
| D41F4-10C | 1000 | 40 | 216 | 900 | 660 | 1230 | 1160 | 1115 | 5 |
| D41F4-10C | 1200 | 48 | 254 | 1070 | 780 | 1455 | 1380 | 1330 | 5 |
