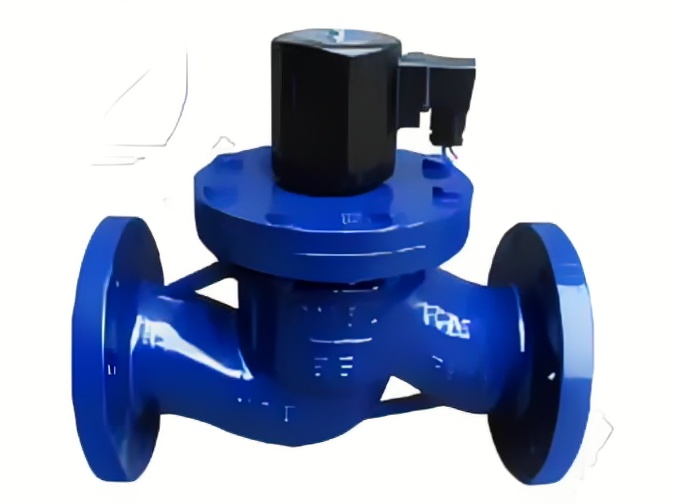

LD75 series pilot piston solenoid valve
| Scope of application | Technical Specifications | ||
| Suitable for control systems such as heating devices, industrial furnaces, high-temperature soot blowing, drying equipment, steel plants, thermal power plants, textile printing and dyeing, chemical equipment, HVAC, printing equipment, pharmaceutical machinery, petrochemicals, electroplating and coating. | Medium temperature: C1: -10 ℃~60 ℃, C2: -20 ℃~90/200 ℃ | ||
| Work pressure: 0.3-16bar | |||
| Operation mode: Pilot piston type | |||
| Working type: normally closed, normally open, explosion-proof | |||
| Valve body material: cast steel WCB | |||
| Sealing material: PTFE, purple copper | |||
| Function Options | Electrical parameters | |||
| code name | Function Options | Functional Description | Coil parameters： | AC220V 380V 110V, DC24V 12V |
| NO | Normally closed type | Power on valve open, power off valve closed | Protection Rating: | IP54 (ordinary coil) IP65 (explosion-proof coil) H-class |
| K | Normally Open | Power on valve closed, power off valve open | Rated power: | DN20～32mm，30W/40W |
| E | Explosion-proof type | Explosion proof grade: ExdII BT4 | DN40～150mm， 30W, DN200～350mm，50w | |

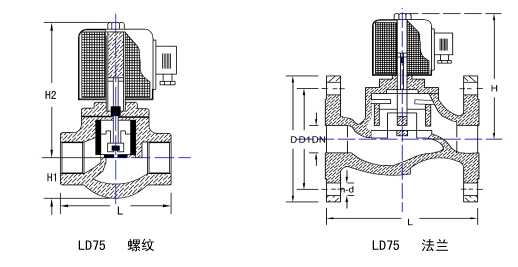

| Specification parameter table (threaded connection) | |||||||
| Model | Interface G | Diameter mm | Cv value | L | H | Work pressure（bar) | |
| Normally closed | Normally Open | ||||||
| LD7520 | 3/4 | 20 | 5.4 | 92 | 148 | 0.3～16 | 0.3～10 |
| LD7525 | 1 | 25 | 8.5 | 110 | 148 | 0.3～16 | 0.3～10 |
| LD7532 | 11/4 | 32 | 14 | 120 | 182 | 0.3～16 | 0.3～10 |
| LD7540 | 11/2 | 40 | 18 | 140 | 182 | 0.3～16 | 0.3～10 |
| LD7550 | 2 | 50 | 28 | 162 | 192 | 0.3～16 | 0.3～10 |
| Specification parameter table (flange connection) | |||||||||
| Model | Diameter mm | Cv value | L | H | D | D1 | n-Φd | Work pressure（bar) | |
| Normally closed | Normally Open | ||||||||
| LD7520F | 20 | 5.4 | 150 | 180 | 105 | 75 | 4-Φ14 | 0.3～16 | 0.3-10 |
| LD7525F | 25 | 8.5 | 160 | 195 | 115 | 85 | 4-Φ14 | 0.3～16 | 0.3-10 |
| LD7532F | 32 | 14 | 180 | 205 | 140 | 100 | 4-Φ18 | 0.3～16 | 0.3-10 |
| LD7540F | 40 | 18 | 200 | 220 | 150 | 110 | 4-Φ18 | 0.3～16 | 0.3-10 |
| LD7550F | 50 | 28 | 230 | 235 | 165 | 125 | 4-Φ18 | 0.3～16 | 0.3-10 |
| LD7565F | 65 | 42 | 290 | 250 | 185 | 145 | 4-Φ18 | 1～16 | 1-10 |
| LD7580F | 80 | 65 | 310 | 260 | 200 | 160 | 8-Φ18 | 1～16 | 1-10 |
| LD75100F | 100 | 100 | 350 | 290 | 220 | 180 | 8-Φ18 | 1～16 | 1-10 |
| LD75125F | 125 | 180 | 400 | 365 | 250 | 210 | 8-Φ18 | 1～16 | 1-10 |
| LD75150F | 150 | 250 | 480 | 400 | 285 | 240 | 8-Φ22 | 1～16 | 1-10 |
| LD75200F | 200 | 420 | 600 | 456 | 340 | 295 | 12-Φ22 | 1.5～16 | 1.5-10 |
| LD75250F | 250 | 660 | 730 | 434 | 405 | 355 | 12-Φ26 | 1.5～16 | 1.5-10 |
| LD75300F | 300 | 890 | 850 | 490 | 460 | 410 | 12-Φ26 | 2～16 | 2-10 |
| LD75350F | 350 | 1060 | 2～16 | 2-10 | |||||
optimization suggestions
*The fluid contains impurities, and a filter screen (mesh ≥ 60) should be installed in front of the valve, and the fluid should not have any solidification or crystallization phenomenon.
*The direction of the valve body marking must be consistent with the flow direction of the medium
*The working pressure of coils providing special voltage may vary, please be sure to consult our factory first.
