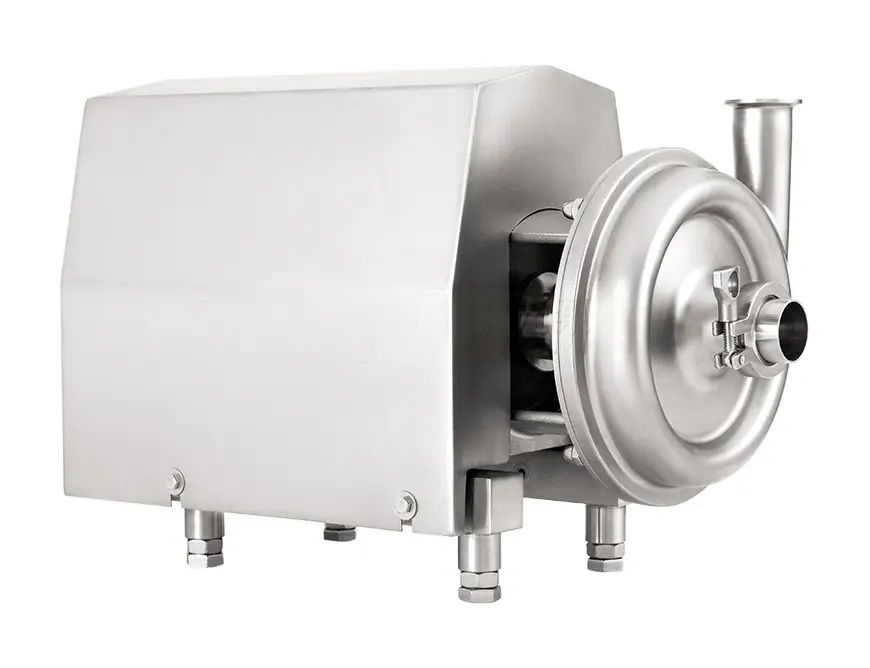

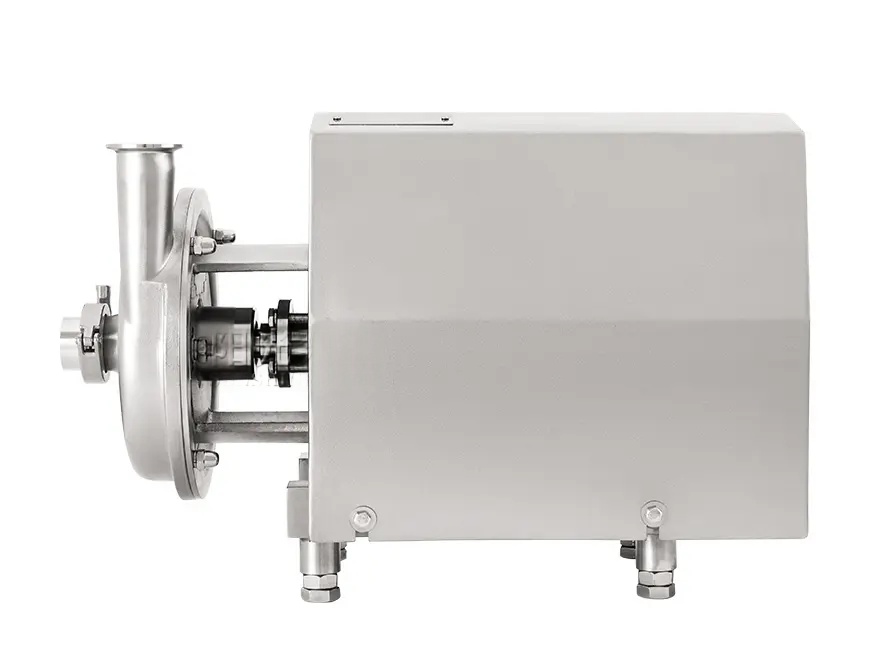

SCP sanitary centrifugal pump

Sanitary grade, precision cast impeller and shaft sleeve integrated, directly installed on the motor output shaft

Product Introduction

• The structuraltype ofSCP stainless steel sanitary centrifugal pump is single-stage,single suction (non self-priming).
• Sanitary pumps have the characteristics of exquisite structure, low noise, hygiene, and high efficiency in use.
• In the selection of materials, all parts that come into contact with the material, such as the pump body, pump cover, impeller, etc., are made of SUS304 and SUS316L stainless steel, using an open impeller without leaving any hygiene dead corners.

Advantage

• Explosion proof motors can be selected to meet the needs of different occasions.
• Under harsh operating conditions, it always maintains alignment, minimal vibration, and the longest sealing life.
• Superior electrical performance, low noise, and low vibration, the standard design protection level of the motor is IP55, and the insulation level is F.
• The pump shaft mechanical seal is customized with hard alloy and silicon carbide, greatly improving wear resistance and self lubrication, extending service life, and reducing production costs.
• The impeller and shaft sleeve are precision cast together and directly installed on the motor output shaft. They have high rigidity, unique design, easy installation, high precision, and ensure concentricity, solving vibration and improving pump strength.

Working principle

The impeller with several backward curved blades assembled on the pump shaft rotates at high speed under the drive of the electric motor, causing the liquid on the blade channel to be thrown from the center of the impeller to the outer edge of the impeller under the drive of centrifugal force, flowing into the volute shaped pump cover at a higher flow rate and flowing into the discharge port for discharge. At the same time, a certain degree of vacuum is formed at the center of the volute shaped pump cover, allowing the liquid material to be continuously sucked into the pump chamber from the inlet and continuously output from the outlet.

scope of application

• Cosmetics: dyes, alcohol, essence oil.
• Dairy products: whey, cream, milk, sugar solution.
• Beverages: alcohol, Baijiu, beer, malt juice, fermentation liquid, fruit juice drinks, drinks with granules.
• Medications: infusion, distilled water, high-purity water, traditional Chinese medicine liquid containing particles (3-6 mm), leachate.
• Others: candy industry, baking industry, chemical industry, etc.

performance parameter
