Q44/45F series three-way flange ball valve
| Technical Parameters | ||
| Nominal pressure PN1.6, 2.5, 4.0, 6.4 MPa | Valve body materials WCB, CF8, CF8M, Ti, Ni | |
| Test pressure capacity PT2.4,3.8,6.0,9.6MPa | Applicable Medium | Q44/45F – (16-64) C Water, oil, gas |
| Low pressure sealing test capacity 0.6MPa | Q44/45F – (16-64) P nitric acid | |
| Applicable temperature -40 ℃~180 ℃ | Q44/45F – (16-64) R Acetoic Acid | |

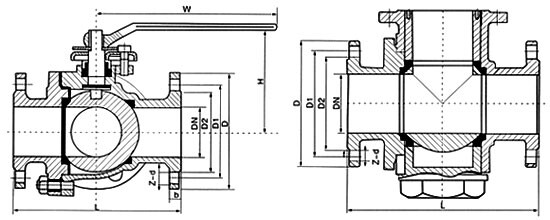

| Main external connection dimensions (PN16) | ||||||||
| Model | DN | L | D | K | D1 | C | N-Φ | H |
| Q44/45F-15 | 15 | 150 | 95 | 65 | 46 | 14 | 4-14 | 95 |
| Q44/45F-20 | 20 | 160 | 105 | 75 | 55 | 14 | 4-14 | 105 |
| Q44/45F-25 | 25 | 180 | 115 | 85 | 65 | 14 | 4-14 | 113 |
| Q44/45F-32 | 32 | 200 | 135 | 100 | 76 | 16 | 4-18 | 135 |
| Q44/45F-40 | 40 | 220 | 145 | 110 | 84 | 16 | 4-18 | 142 |
| Q44/45F-50 | 50 | 240 | 160 | 125 | 99 | 16 | 4-18 | 154 |
| Q44/45F-65 | 65 | 260 | 180 | 145 | 118 | 16 | 4-18 | 175 |
| Q44/45F-80 | 80 | 280 | 195 | 160 | 132 | 20 | 8-18 | 190 |
| Q44/45F-100 | 100 | 320 | 215 | 180 | 155 | 20 | 8-18 | 225 |
| Q44/45F-125 | 125 | 380 | 245 | 210 | 184 | 22 | 8-18 | 255 |
| Q44/45F-150 | 150 | 440 | 280 | 240 | 210 | 24 | 8-23 | 282 |
| Q44/45F-200 | 200 | 550 | 335 | 295 | 265 | 26 | 12-23 | 318 |
