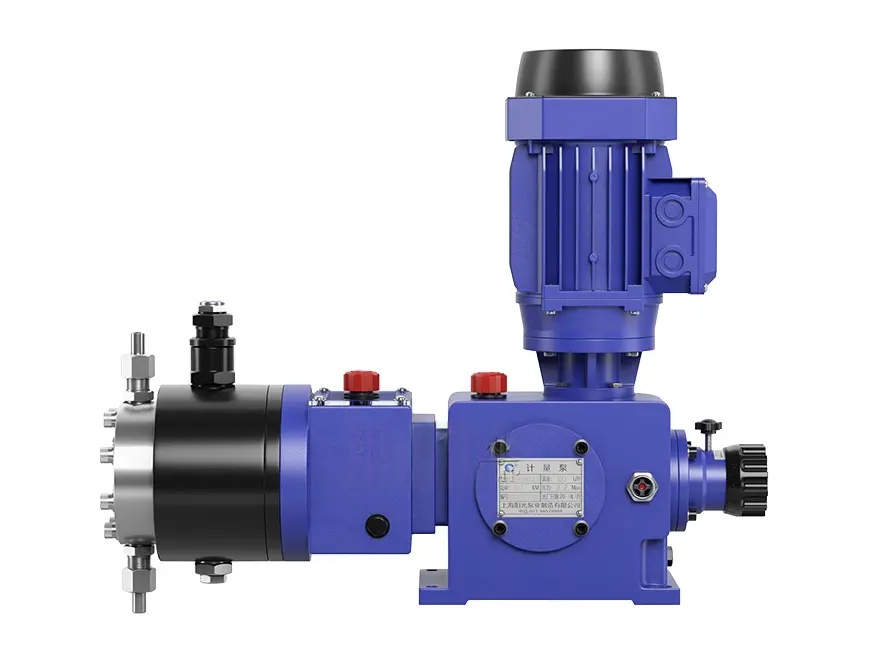

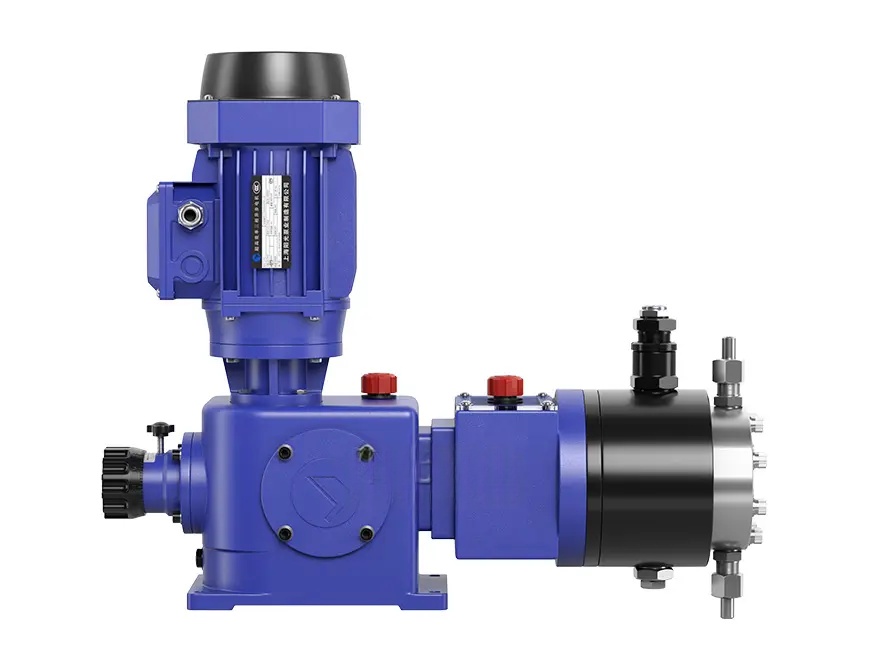

DY-X hydraulic diaphragm metering pump

DY-X hydraulic diaphragm metering pump

The commonly used single unit independent parameters for hydraulic diaphragm metering pumps are provided to users.
Multiple combinations of the same machine base and specifications or different machine bases and specifications can be manufactured according to user needs.
It has the characteristics of no leakage and high pressure, and is widely used in the transportation of flammable, explosive, volatile, highly corrosive, radioactive, highly toxic, suspension, and expensive liquid media; Achieve the purpose of high-pressure liquid injection.

Advanced hydraulic system design, safe and leak free, small size, easy operation

Product Introduction

The commonly used single unit independent parameters for hydraulic diaphragm metering pumps are provided to users.
Multiple combinations of the same machine base and specifications or different machine bases and specifications can be manufactured according to user needs.
It has the characteristics of no leakage and high pressure, and is widely used in the transportation of flammable, explosive, volatile, highly corrosive, radioactive, highly toxic, suspension, and expensive liquid media; Achieve the purpose of high-pressure liquid injection.

Advantage

Flow range: 0-180 L/h.
Range: 0-18 MPa.
Drive motor: ordinary motor, explosion-proof motor, variable frequency motor, variable frequency explosion-proof motor.
Flow control: manual or automatic control.
The pump can adjust the flow rate in both running and stopping states.
Advanced hydraulic system design, safe and leak free.
No noise, small size, easy operation, and convenient maintenance.
It can also operate safely without any medium inside the pump head.
Multiple material pump head options: PVC, PTFE, stainless steel 304, stainless steel 316.

scope of application

Capable of quantitatively transporting acids, bases, water, and various special media.
Ordinary room temperature water can be highly corrosive, volatile, crystalline, flammable, explosive, highly toxic, highly corrosive, radioactive, suspended, or other valuable liquids.
To prevent accidents caused by the mixture of medium and hydraulic oil after diaphragm rupture, a double diaphragm metering pump with diaphragm rupture alarm device can be used for the transportation of flammable, explosive, highly toxic, and valuable liquids.

performance parameter

Model	Flow	Motor Power		Plunger Diameter	Lift	Pump speed	Entrance and exit caliber
	(L/h)	0.37(kW)	0.55(kW)	(mm)	(mm)	( min⁻¹)	(mm)
		Pressure(MPa)
DY-X 7/18(12)	7	12	18	10	20	96/144	6 Takeover sets
DY-X 10/14(9.0)	10	9	14	12
DY-X 20/7.6(5.4)	20	5.4	7.6	16
DY-X 35/6.8(5)	35	5	6.8	20
DY-X 50/5.5(3)	50	3	5.5	25			10 Takeover sets
DY-X 80/3.5(2.2)	80	2.2	3.5	28
DY-X 135/2.5(1.7)	135	1.7	2.5	32
DY-X 160/1.6(1.1)	160	1.1	1.6	35			15 Takeover sets
DY-X 180/1.3(0.9)	180	0.9	1.3	38			15 Takeover sets

keyword：Hydraulic metering pump、Diaphragm metering pump、Pump for transporting flammable and explosive liquids
