LD62H series exquisite high-pressure solenoid valve

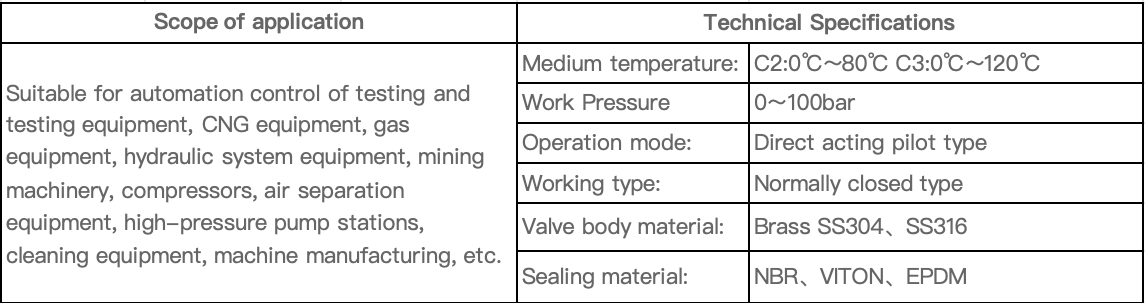

| Function Options | Electrical parameters | |||
| 代号 | Function Options | Functional Description | Coil parameters: AC220V DC24V | |
| NO | Normally closed type | Power on valve open, power off valve closed | Plastic encapsulated coil: IP65 F grade | |
| Other optional options | Rated power: | DN1～2.5mm AC 24VA, DC 18.5W | ||
| *Customized American standard NPT thread | DN8～25mm AC 33VA, DC 32W | |||
| Specification parameter table (normally closed type) | ||||||||||
| Model | Interface G | Diameter mm | Cv value | L | H | W | Work pressure （bar) | |||
| Gas \ water | Light oil ≤ 22CST | |||||||||
| AC | DC | AC | DC | |||||||
| LD62H01 | 1/8 1/4 | 1 | 0.04 | 40 | 83 | 29 | 100 | 75 | 100 | 75 |
| LD62H1.2 | 1/8 1/4 | 1.2 | 0.05 | 40 | 83 | 29 | 90 | 70 | 90 | 70 |
| LD62H1.5 | 1/8 1/4 | 1.5 | 0.08 | 40 | 83 | 29 | 75 | 50 | 75 | 50 |
| LD62H02 | 1/8 1/4 | 2 | 0.14 | 40 | 83 | 29 | 35 | 30 | 35 | 30 |
| LD62H2.5 | 1/8 1/4 | 2.5 | 0.23 | 40 | 83 | 29 | 20 | 15 | 20 | 15 |
| LD62H08 | 1/4 3/8 | 8 | 1.2 | 55 | 103 | 60 | 90 | 70 | 70 | 50 |
| LD62H15 | 3/8 1/2 | 15 | 4.2 | 75 | 130 | 52 | 75 | 55 | 55 | 35 |
| LD62H20 | 3/4 | 20 | 7 | 85 | 141 | 60 | 65 | 50 | 50 | 30 |
| LD62H25 | 1 | 25 | 11 | 100 | 148 | 70 | 55 | 45 | 45 | 30 |
optimization suggestions
*The fluid contains impurities, and a filter screen (mesh ≥ 60) should be installed in front of the valve, and the fluid should not have any solidification or crystallization phenomenon.
*The direction of the valve body marking must be consistent with the flow direction of the medium
*The working pressure of coils providing special voltage may vary, please be sure to consult our factory first.
