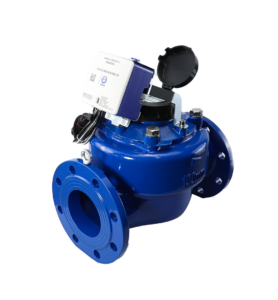

Vertical spiral wing water meter
This series of water meters is used to measure the total amount of water flowing through the tap water pipeline, and is not suitable for measuring hot water and other liquids other than drinking water.
Technical Specifications
| Caliber | Q3 /Q1 | Overload traffic Q4 | Common traffic Q3 | Threshold flow Q2 | Minimum flow Q1 | Minimum Reading | Maximum Reading |
| mm | m3/h | L/h | m3 | ||||
| 25 | 160 | 20 | 16 | 160 | 100 | 0.00005 | 999999 |
| 100 | 256 | 160 | |||||
| 80 | 320 | 200 | |||||
| 40 | 160 | 31.25 | 25 | 250 | 156.3 | 0.00005 | 999999 |
| 0.0005 | |||||||
| 125 | 320 | 200 | |||||
| 100 | 400 | 250 | Dry 0.00025 | ||||
| 50 | 200 | 50 | 40 | 320 | 200 | 0.0005 | 999999 |
| 160 | 400 | 250 | |||||
| 125 | 512 | 320 | Dry 0.00025 | ||||
| 65 | 160 | 78.75 | 63 | 630 | 393.8 | 0.0005 | 999999 |
| 125 | 806.4 | 504 | |||||
| 80 | 200 | 78.75 | 63 | 504 | 315 | Dry 0.001 | |
| 160 | 630 | 393.8 | |||||
| 125 | 806.4 | 504 | |||||
| 100 | 200 | 125 | 100 | 800 | 500 | ||
| 160 | 1000 | 625 | |||||
| 125 | 1280 | 800 | |||||
| 150 | 200 | 312.5 | 250 | 2000 | 1250 | 0.005 | 9999999 |
| 160 | 2500 | 1562.5 | |||||
| 125 | 3200 | 2000 | (Dry 0.0025) | ||||
| 200 | 200 | 500 | 400 | 3200 | 2000 | ||
| 160 | 4000 | 2500 | |||||
| 125 | 5120 | 3200 | |||||
Maximum allowable error:
a) The maximum allowable error for the low zone (Q1 ≤ Q ＜ Q2) is 5%;
b) The maximum allowable error for the high zone (Q2 ≤ Q ≤ Q4) is 2%.
| Caliber DN | L | B | H | Threaded connectionD | weight | |
| mm | kg | |||||
| 25 | 225 | 105 | 165 | R1 | G 1 1/4B | 3 |
| 40 | 245 | 154 | 180 | R1 1/2 | G 2B | 6 |
| 280 | 184 | 260 | 12 | |||
| Caliber DN | L | H | G | Flange connection | weight | ||
| mm | Outer diameterD | Bolt hole center diameterD1 | connecting bolt | kg | |||
| mm | |||||||
| 50 | 280 | 260 | 300 | 165 | 125 | 4×M16 | 17.5 |
| 65 | 370 | 275 | 300 | 185 | 145 | 4×M16 | 22 |
| 80 | 370/225 | 285/270 | 300 | 200 | 160 | 8×M16 | 22/18 |
| 100 | 370/250 | 310 | 345 | 220 | 180 | 8×M16 | 27/23 |
| 150 | 500 | 375 | 445 | 285 | 240 | 8×M20 | 51 |
| 200 | 500 | 455 | 605 | 340 | 295 | 8×M20 | 80 |
Note: 1) The flange connection shall comply with the size requirements of GB/T 17241.6-2008/XG1-2011 PN10 integral cast iron flange, and shall be specified when ordering special specifications.
2) The height G dimension is necessary for disassembling the movement. The external dimensions and weight are for reference only, and the actual product shall prevail
| Temperature Grade | T30 | Maximum allowable pressure | 1.0MPa、1.6MPa |
| Sensitivity level of upstream and downstream flow fields | U0D0 |
